1983 Kawasaki KZ750-L3 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

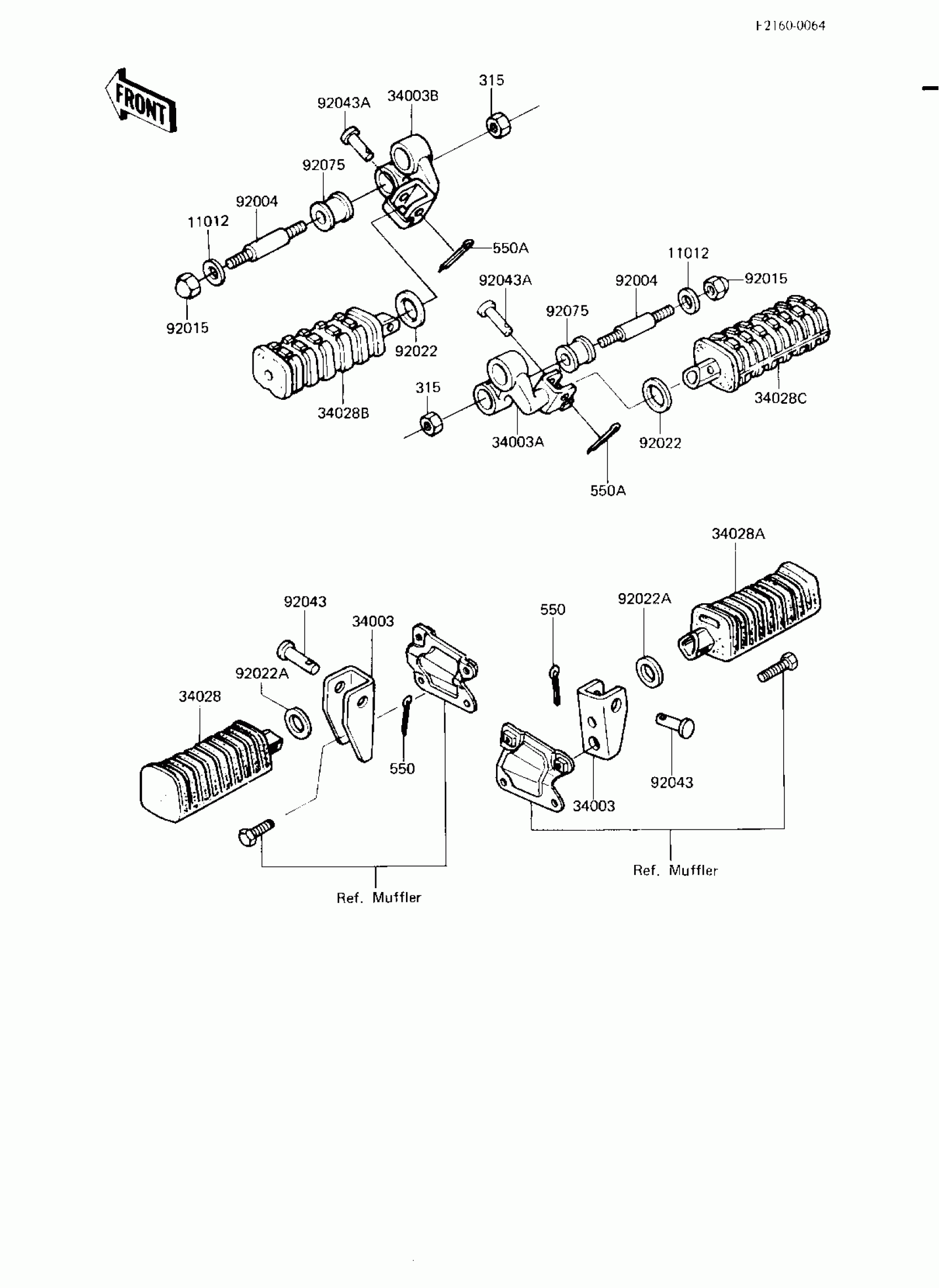

1983 Kawasaki KZ750-L3 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEP,BLACK

11012-1246

1
Out of stock

34003

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1065

1
Out of stock

34003B

HOLDER-STEP,FR,LH

34003-1066

1
Out of stock

34028

STEP,RR,LH,BLACK

34028-1041

1
Out of stock

34028A

STEP,RR,RH,BLACK

34028-1042

1
Out of stock

34028B

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

34028C

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

92004

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

92015

NUT,CAP,LOCK,8MM,BLACK

92015-1209

1
Out of stock

92022

WASHER,25X36X2.3,BLAC

92022-1319

1
Out of stock

92022A

WASHER,22.5X30X2.6,B

92022-1320

1
Out of stock

92043

PIN,6X28

92043-1464

1
Out of stock

92043A

PIN,8X35.5

92043-115

1
Out of stock

92075

DAMPER RUBBER,FOOTRE

92075-293

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

550

PIN-COTTER,2.0X12

550D2012

1
Out of stock

550A

PIN-COTTER,2.5X15

550D2515

1
Out of stock
