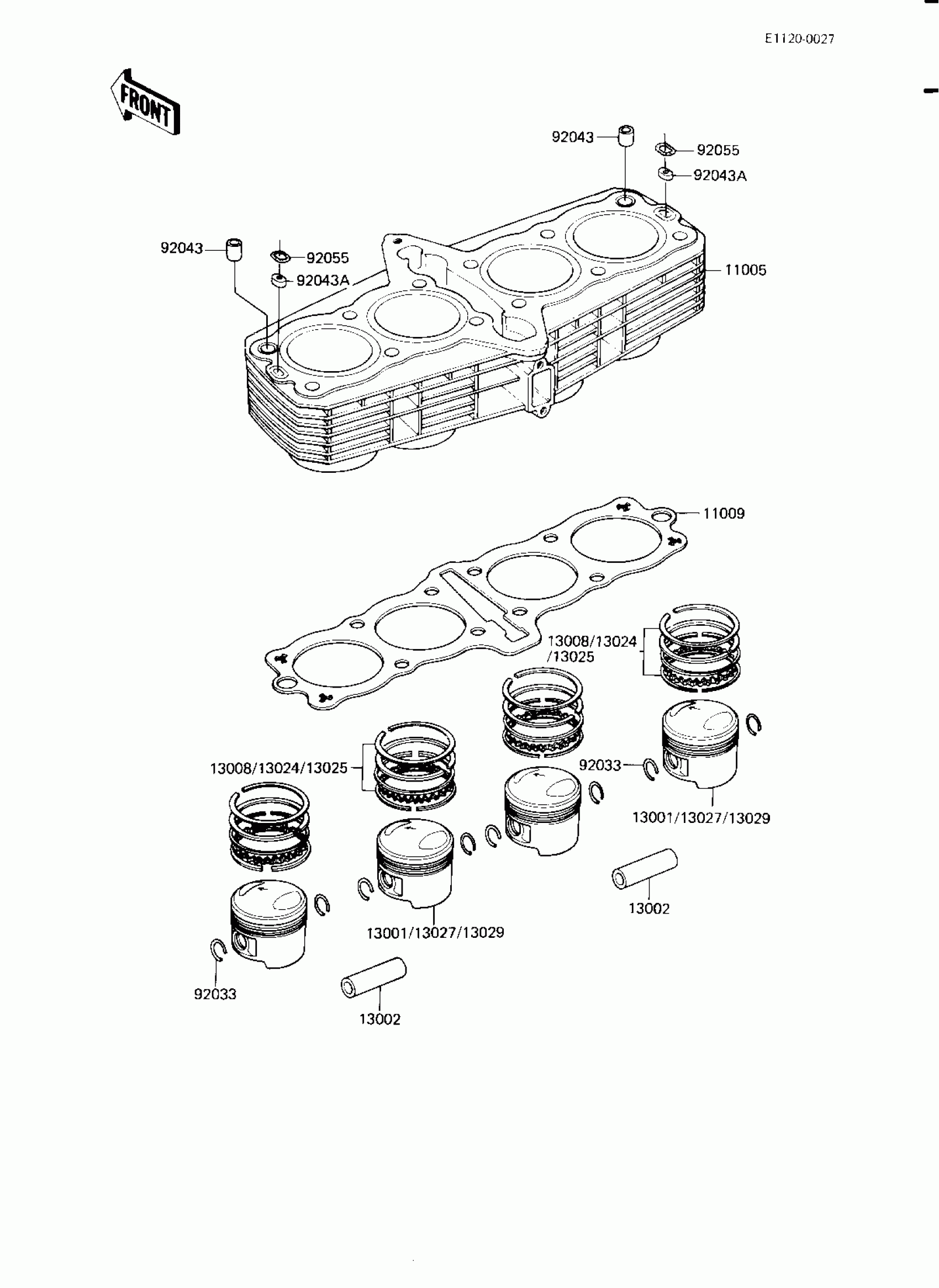

Kawasaki KZ750-L3 CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE,F.BLA

11005-1306

Unavailable

11009

GASKET,CYLINDER BASE

11060-1144

Unavailable

13001

PISTON-ENGINE,STD

13001-1343

$105.68

13002

PIN-PISTON

13002-1001

$6.22

13008

RING-SET-PISTON,STD

13008-5046

$72.62

13024

RING-SET-PISTON LL,O/S 1.00

13024-5022

$72.62

13025

RING-SET-PISTON L,O/S 0.50

13025-5022

$72.62

13027

PISTON-ENGINE LL,0/S,

13027-1036

Unavailable

13029

PISTON-ENGINE L,0/S,

13029-1037

Unavailable

92033

RING-SNAP

92036-005

$4.07

92043

PIN,11X14X12.3

92043-1266

$1.08

92043A

PIN,OIL LINE

92043-1210

$7.62

92055

RING-O,CYLINDER OIL LINE PIN

92055-1147

$9.89
