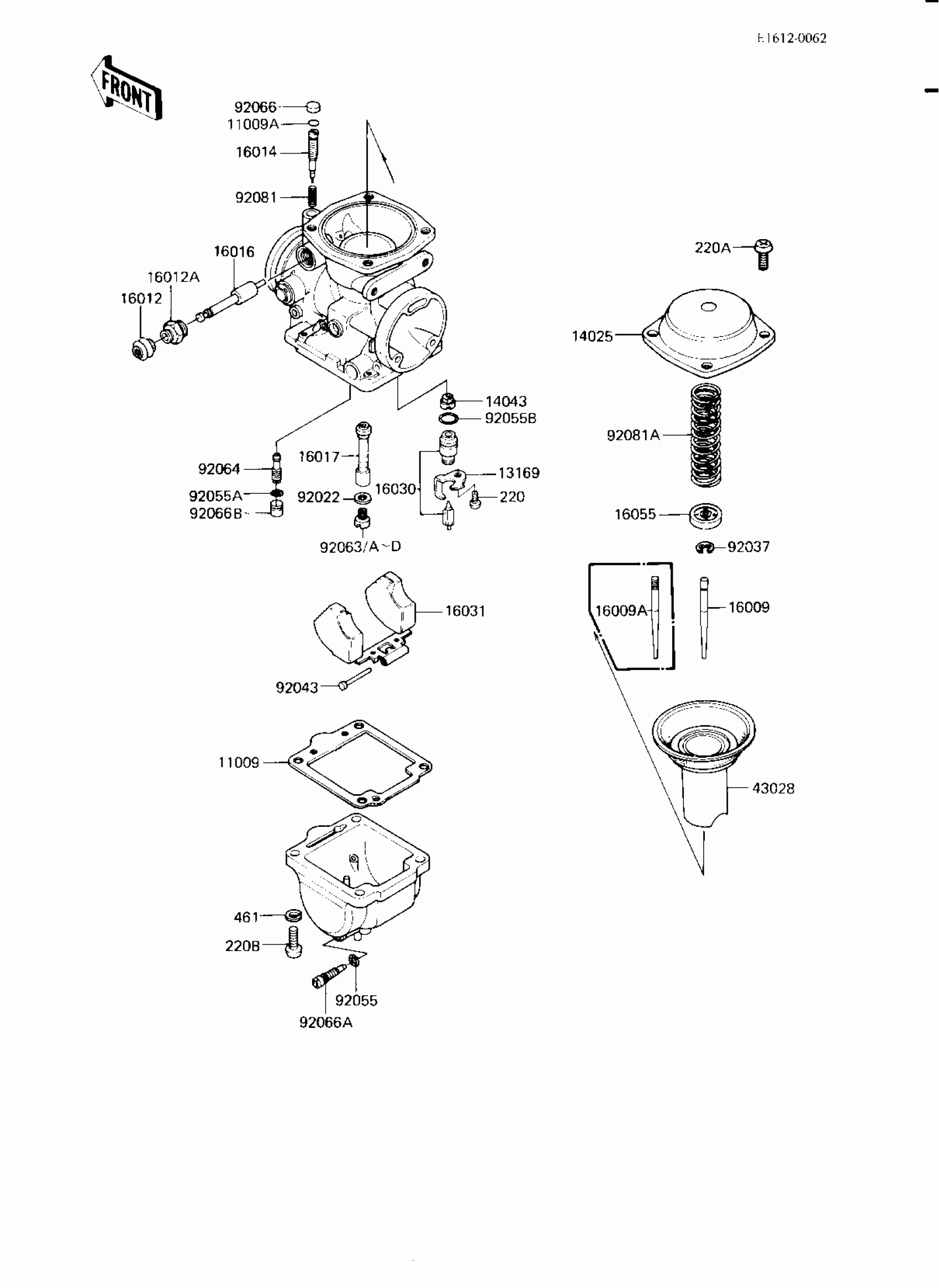

Kawasaki KZ750-L3 CARBURETOR PARTS Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1241
Unavailable
11009A
GASKET,"O"RING
16038-022
$6.89
13169
PLATE,FLOAT VALVE
13169-1482
$7.22
14025
TOP-CHAMBER,MIXING
14025-1395
$87.04
14043
FILTER,FLOAT VALVE
14043-1010
$14.86
16009
NEEDLE-JET,4BE4
16009-1114
$29.02
16009A
NEEDLE-JET,4BE3 (Canada)
16009-1115
Unavailable
16012
CAP-STARTER PLUNGER,RUBBER
16012-1010
$25.51
16012A
CAP-STARTER PLUNGER
16012-1011
$16.53
16014
UNAVAILABLE IN PRICE BOOK
16014-1041
Unavailable
16016
PLUNGER
16016-1019
$47.66
16017
JET-NEEDLE,Y-9
16017-1109
Unavailable
16030
VALVE-FLOAT,2.5
16030-1016
$58.86
16031
FLOAT
16031-1013
$64.88
16055
PLATE,NEEDLE
16055-010
$12.37
43028
DIAPHRAGM,VALVE
43028-1034
$219.60
92022
WASHER,MAIN JET
16034-001
$4.31
92037
CLAMP,E-TYPE
16008-014
$9.64
92043
PIN,FLOAT
16032-008
$6.57
92055
RING-O
92055-044
$10.38
92055A
"O" RING,CHECK VALVE
92055-1059
$11.60
92055B
RING-O
92055-1105
$5.00
92063
MAIN JET,#110R
92063-1038
$16.50
92063A
JET-MAIN,#A107.5R
92063-1041
Unavailable
92063B
MAIN JET,#A105R
92063-1042
$15.74
92063C
MAIN JET,A115
92063-1109
$15.42
92063D
JET-MAIN,#A112.5
92063-1110
$15.42
92064
JET-PILOT,#A37.5
92064-1036
$19.96
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92066A
PLUG,DRAIN
92066-1064
$12.37
92066B
UNAVAILABLE IN PRICE BOOK
92066-108
Unavailable
92081
SPRING,PILOT SCREW
16022-016
$9.10
92081A
SPRING,DIAPHRAGM VALVE
92081-1363
$26.16
220
SCREW PAN HEAD 4X6
220B0406
$1.67
220A
SCREW PAN HEAD 5X8
220B0508
$0.46
220B
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
461
WASHER SPRING 5MM
461F0500
$0.69
