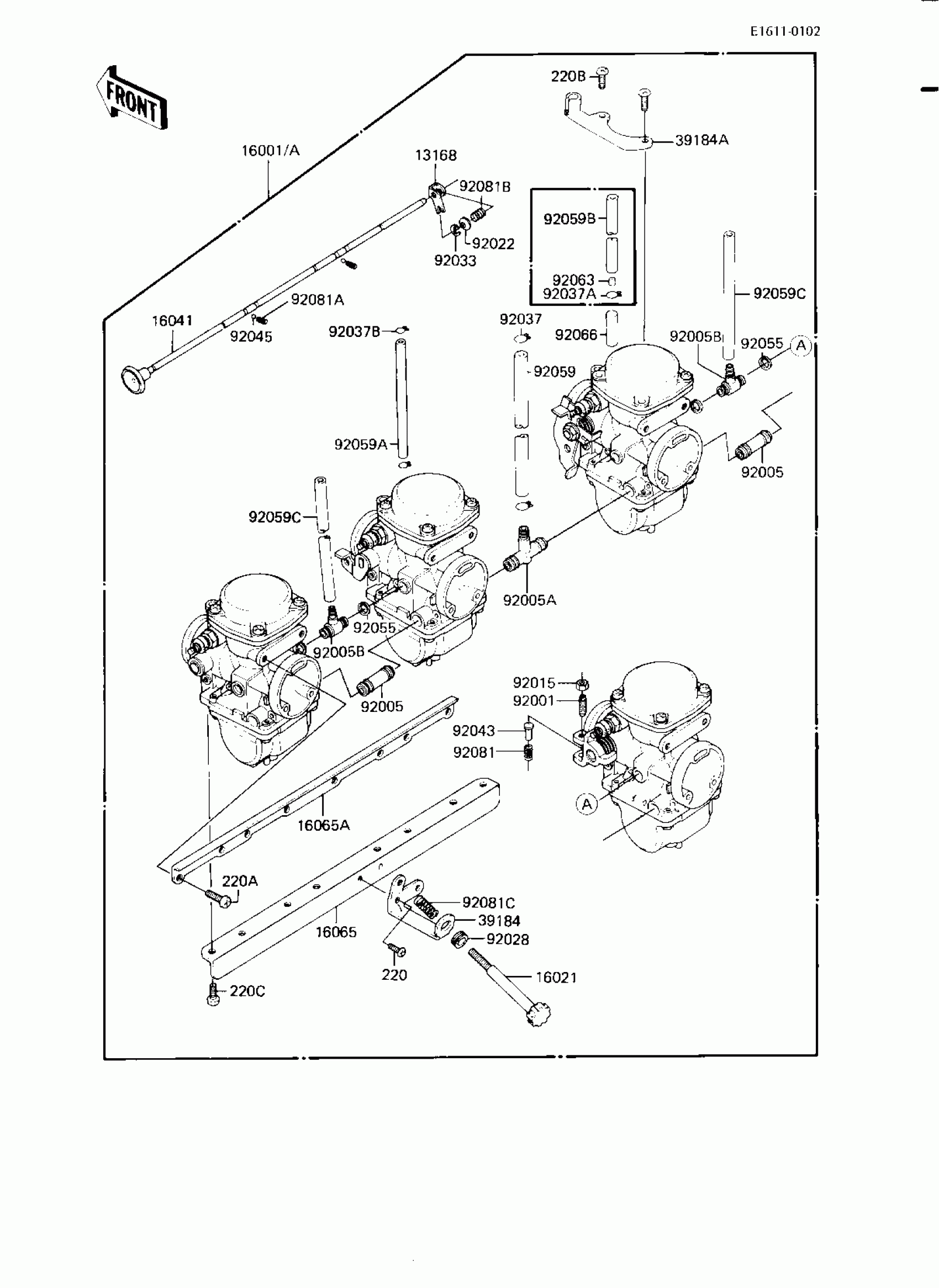

Kawasaki KZ750-L3 CARBUERTOR ASSY Diagram
#
13168
LEVER,CHOKE
13168-1091
$9.07
16001
CARBURETOR
16001-1759
$1,160.95
16001A
CARBURETOR ASSY,ALL (Canada)
16001-1764
Unavailable
16021
SCREW-THROTTLE STOP
16021-1035
$29.84
16041
SHAFT-CARBURETOR,CHOKE
16041-1024
$50.69
16065
HOLDER-CARBURETOR,LWR
16065-1043
$86.22
16065A
HOLDER-CARBURETOR,UPP
16065-1044
$58.31
39184
BRACKET-ASSY,IDLING ADJUSTER
39184-1007
$37.19
39184A
BRACKET-ASSY,THROTTLE
39184-1009
$36.38
92001
BOLT,ADJUSTING
92001-1447
$12.04
92005
FITTING,FUEL,I-TYPE
92005-1035
$50.23
92005A
FITTING,FUEL,T-TYPE
92005-1036
$67.12
92005B
FITTING,AIR VENT
92005-1045
$38.98
92015
NUT,THROTTLE VALVE ADJUSTING
92015-1119
$5.59
92022
WASHER,SPRING
92022-1255
$5.86
92028
BUSHING
92028-1071
Unavailable
92033
RING-SNAP,E-TYPE
92033-1066
$5.80
92037
CLAMP,TUBE
92037-1184
$1.45
92037A
CLAMP,TUBE (Canada)
92037-1235
Unavailable
92037B
CLAMP,BREATHER TUBE
92037-174
$2.00
92043
PIN,THROTTLE VALVE ADJUST
92043-1079
$6.40
92045
BALL,STEEL,1/8"
600A0400
$1.40
92055
"0" RING
92055-510
Unavailable
92059
TUBE,7.5X12.5X225
92059-1123
Unavailable
92059A
TUBE,5X9X150
92059-1188
$19.00
92059B
TUBE,4.5X8X200 (Canada)
92059-1204
Unavailable
92059C
TUBE,6.5X9.5X220
92059-1261
$16.15
92063
JET-MAIN (Canada)
92063-1097
Unavailable
92066
PLUG,12X25
92068-006
$4.26
92066
PLUG,12X25
92068-006
$4.26
92081
SPRING,THROTTLE VALVE ADJUST
92081-1259
$5.31
92081A
SPRING,SHAFT STOP
92081-1260
$5.80
92081B
SPRING,CHOKE SHAFT
92081-1364
$5.80
92081C
SPRING,THROTTLE STOP SCREW
92081-1377
$4.96
220
SCREW PAN HEAD 5X8
220B0508
$0.46
220A
SCREW PAN HEAD 5X10
220B0510
$0.69
220B
SCREW-PAN-CROS
220B0512
$0.47
220C
SCREW-PAN-CROS,6X14
220B0614
$1.48
