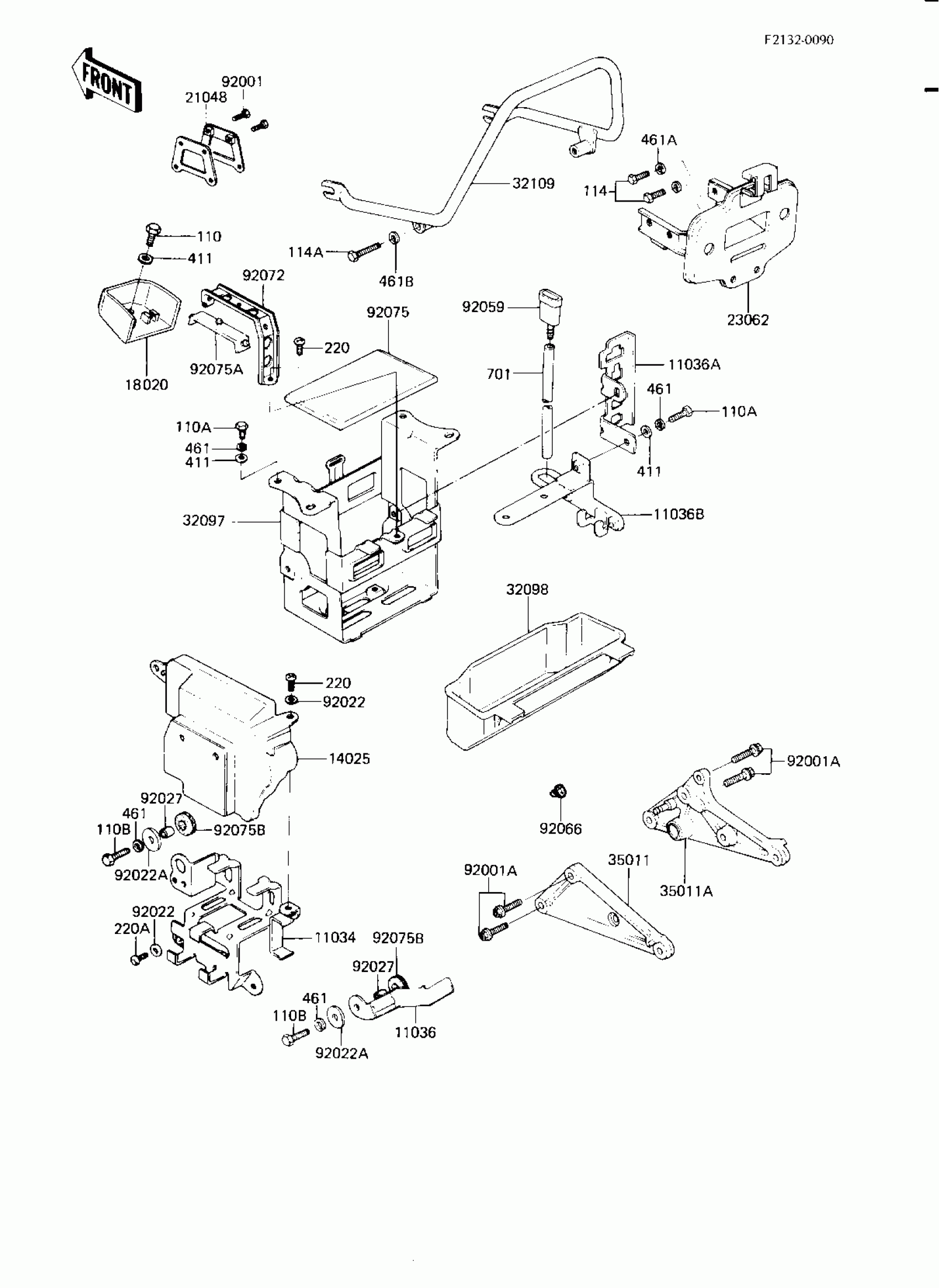

Kawasaki KZ750-L3 BATTERY CASE/TOOL CASE Diagram
#
11034
BRACKET,ELECTRO BASE
11034-1669
Unavailable
11036
BRACKET-A,FUSE
11036-1043
Unavailable
11036A
BRACKET-A,COUPLER
11036-1475
Unavailable
11036B
BRACKET-A,SWITCH
11036-1662
Unavailable
14025
COVER,ELECTRO BASE
14025-1191
Unavailable
18020
BAFFLE,CARBURETOR AI
18020-1060
$16.38
21048
PLATE-COIL
21048-1001
$20.77
23062
BRACKET-COMP,TAIL LA
23062-1024
$37.10
32097
CASE,TOOL
32098-1011
Unavailable
32098
CASE,TOOL
32098-1011
Unavailable
32109
GRIP-FRAME
32109-1031
$175.36
35011
STAY,MUFFLER,LH
35011-1121
$131.19
35011A
STAY,MUFFLER,RH
35011-1122
$132.18
92001
BOLT,6X10
92001-137
$6.52
92001A
BOLT,FLANGED,8X28,BLACK
92001-1508
Unavailable
92022
WASHER PLAIN
92022-024
$3.65
92022A
WASHER,7X24X1.6
92022-228
$3.92
92027
COLLAR-CLAMP
92027-291
Unavailable
92059
CONNECTOR PIPE
92059-101
$9.12
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92072
BAND,BATTERY
92072-1019
Unavailable
92075
DAMPER
92075-1076
$8.86
92075A
DAMPER,BATTERY BAND
92075-1113
Unavailable
92075B
DAMPER
92075-317
Unavailable
110
BOLT,6X10
112G0610
$0.58
110A
BOLT-UPSET,6X12
112G0612
$1.45
110B
BOLT-UPSET
112G0625
$3.62
114
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
114A
BOLT-SMALL-UPSET
115C0835
$2.95
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
411
WASHER PLAIN 6MM
411B0600
$2.84
461A
WASHER SPRING 6MM
461F0600
$0.69
461A
WASHER SPRING 8MM
461F0800
$0.40
461B
WASHER-SPRING,8MM,BLACK
461K0800
$2.33
701
TUBE-PVC,6X300
701Q06300
$3.61
