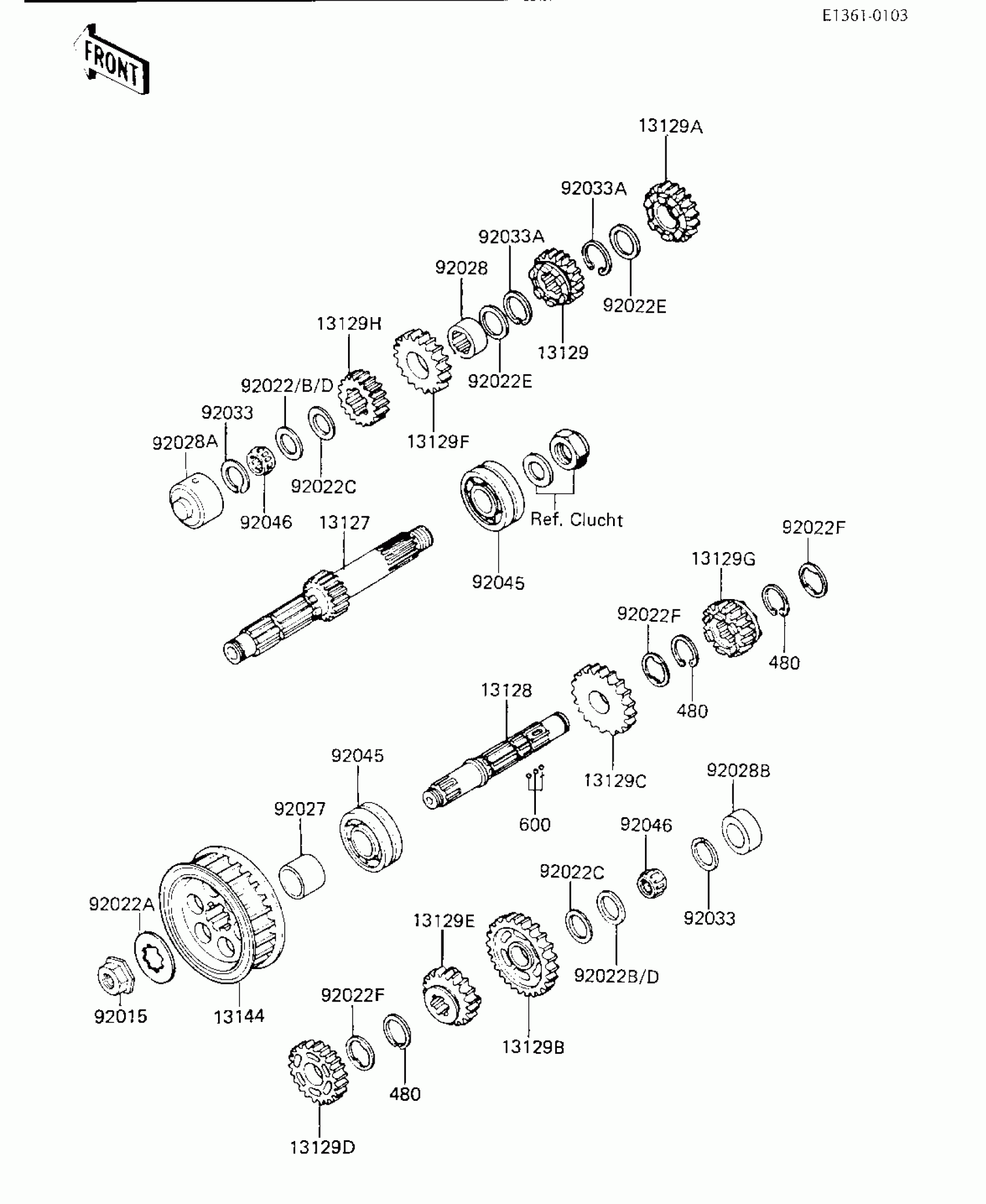

Kawasaki KZ750-K2 (Canada Only) TRANSMISSION Diagram

SHAFT-TRANSMISSION INPUT,15T

13127-1018

Unavailable

SHAFT-TRANSMISSION OU

13128-1051

Unavailable

3RD GEAR,DRIVE SHAFT

13129-1032

Unavailable

4TH GEAR,DRIVE SHAFT

13129-1044

Unavailable

GEAR,OUTPUT LOW,35T

13129-1046

Unavailable

GEAR,OUTPUT 2ND,31T

13129-1047

Unavailable

GEAR,OUTPUT 3RD,28T

13129-1048

Unavailable

GEAR,OUTPUT 4TH,26T

13129-1049

Unavailable

TOP GEAR,DRIVE SHAFT

13129-1200

Unavailable

GEAR,OUTPUT TOP,21T

13129-1201

Unavailable

GEAR,INPUT 2ND,19T

13130-041

Unavailable

SPROCKET-OUTPUT,28T

13144-1087

Unavailable

NUT,20MM

92015-1254

$14.90

WASHER,20.3X30X0.7,STEEL

92022-1026

Unavailable

WASHER

92200-1065

$6.63

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

WASHER THRUST

92022-113

Unavailable

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

WASHER,25.3X30X1

92022-161

$10.65

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

COLLAR,25X40X23.5

92027-1582

$19.91

BUSHING,INPUT TOP GEAR

92028-1007

$29.67

BUSHING,INPUT SHAFT

92028-1186

$32.67

BUSHING,26X34X16.6

92028-180

$28.82

RING-SNAP,20MM

92033-015

$4.26

RING-SNAP,24MM

92033-026

$8.79

BEARING-BALL,83993SH2-CS

92045-035

$73.57

BEARING-NEEDLE,VS20/14A

92046-1030

$25.43

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

BALL-STEEL,5/32

600A0500

$0.81
