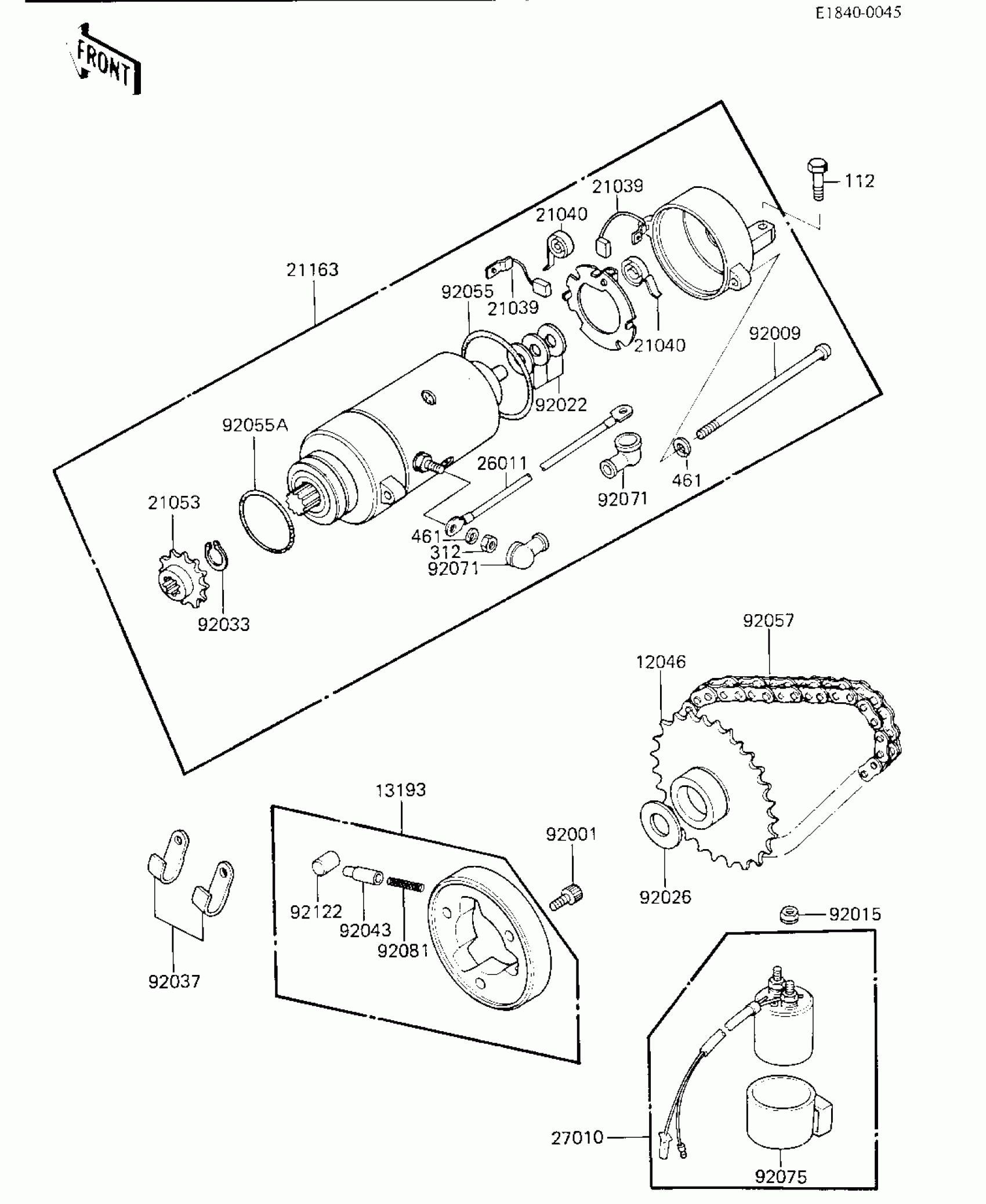

Kawasaki KZ750-K2 (Canada Only) STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

12046

GEAR,STARTER CLUTCH

21170-003

$333.60

13193

CLUTCH ASSY,STARTER

13193-1001

Unavailable

21039

BRUSH,CARBON

21039-003

$40.76

21040

SPRING-BRUSH

21040-003

Unavailable

21053

SPROCKET,STARTER MOT

21053-003

$33.59

21163

STARTER ELECTRIC

21163-1020

Unavailable

26011

WIRE,STARTER MOTOR LD

26010-045

$34.67

27010

SWITCH ASSY,MAGNETIC

21164-005

$159.50

92001

BOLT-SOCKET,8X16

120P0816

$4.15

92009

SCREW,PAN HEAD,6X120

21099-005

Unavailable

92015

NUT,LOCK 6MM

92017-014

$7.51

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92026

SPACER,25X40X1

92026-1004

$7.24

92033

RING-SNAP,17MM

92033-034

$10.44

92037

CLAMP,WIRING HARNESS

21126-008

$4.73

92043

PIN

92043-087

$12.76

92055

RING-O,STARTER MOTOR

21027-003

Unavailable

92055A

RING-O,40MM

21027-008

$12.48

92057

CHAIN,DYNAMO

21070-010

Unavailable

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING

92081-110

$4.76

92122

ROLLER,15X13

92122-004

$11.07

112

BOLT-UPSET

112G0625

$3.62

312

NUT 6MM

312B0600

$0.72

461

WASHER SPRING 6MM

461F0600

$0.69
