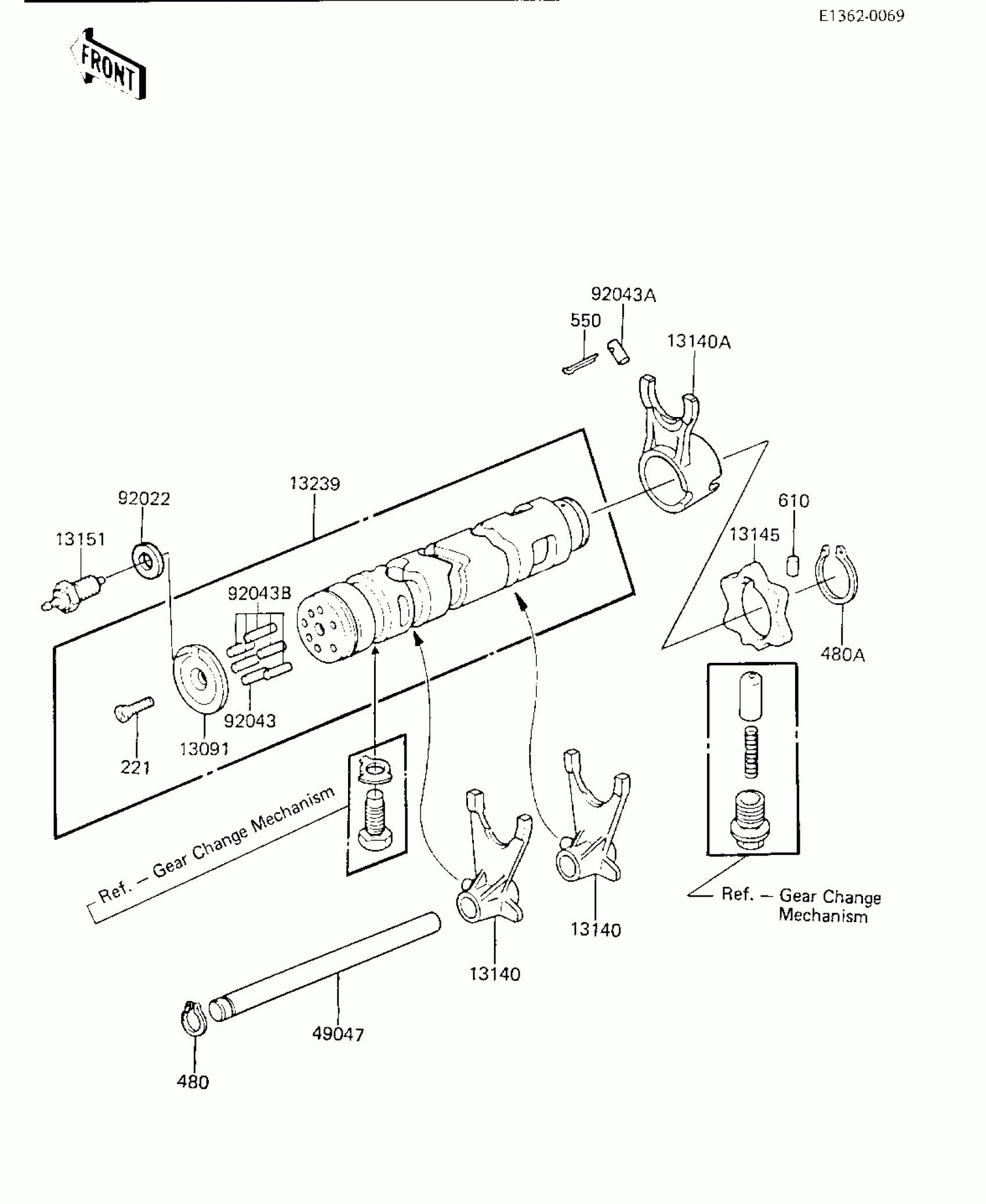

Kawasaki KZ750-K2 (Canada Only) GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,CHANGE DRUM PIN

13091-1104

$26.23

13140

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$109.81

13140A

FORK-SHIFT,4TH&TOP

13140-1009

$109.81

13145

CAM-CHANGE DRUM

13145-1058

$22.72

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1072

Unavailable

49047

ROD-SHIFT

49047-5003

$24.34

92022

GASKET,10.5X16X1

92065-058

$3.96

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,8X18

92042-021

$11.51

92043B

PIN,DOWEL,4X13.8

92042-030

$3.92

221

SCREW-CSK-CROS,6X20

221B0620

$2.40

480

UNAVAILABLE IN PRICE BOOK

480J7200

Unavailable

480A

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

550

PIN-COTTER,3.0X20

550D3020

$1.78

610

ROLLER,4X6

610A0406

$4.31
