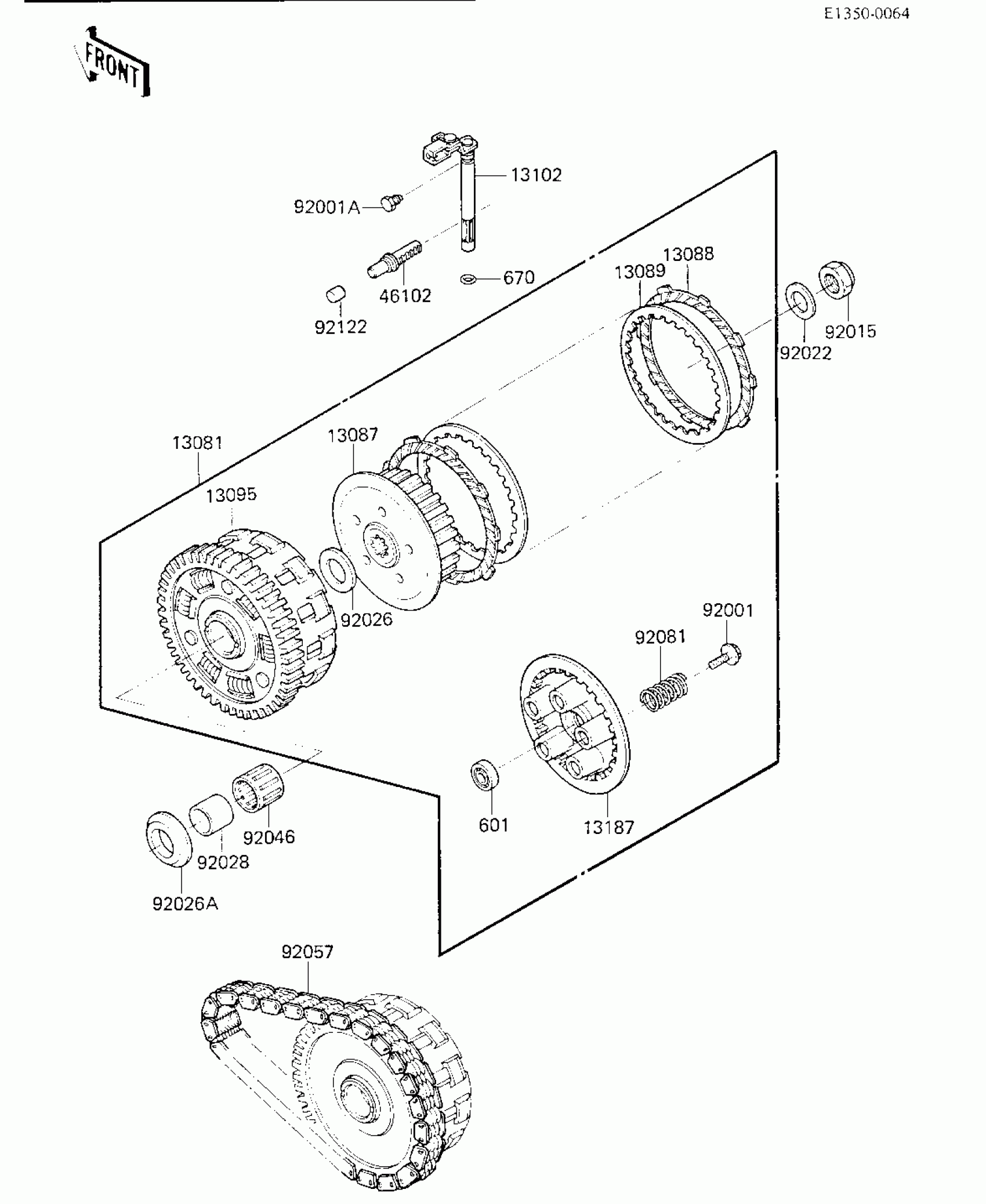

Kawasaki KZ750-K2 (Canada Only) CLUTCH Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1092

Unavailable

13087

HUB-CLUTCH

13087-042

Unavailable

13088

PLATE-FRICTION

13088-1013

$15.76

13089

PLATE-CLUTCH

13089-027

$12.80

13095

HOUSING-COMP-CLUTCH

13095-1051

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1020

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1006

$75.59

46102

ROD

46102-1053

$31.17

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92001A

BOLT,CLUTCH RELEASE

92003-130

$6.01

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,6.5X16X2

92022-1565

$3.92

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-123

Unavailable

92028

BUSHING,25X32X23.6

92028-178

$25.03

92046

BEARING-NEEDLE,KTV323723

92046-028

$21.24

92057

CHAIN,PRIMARY

13122-008

Unavailable

92081

SPRING,CLUTCH

92081-139

$8.51

92122

ROLLER,10X12

92122-1019

$6.16

601

BEARING-BALL,6001C3ML01

92045-1235

$16.25

670

O RING,9MM

670B1509

$3.65
