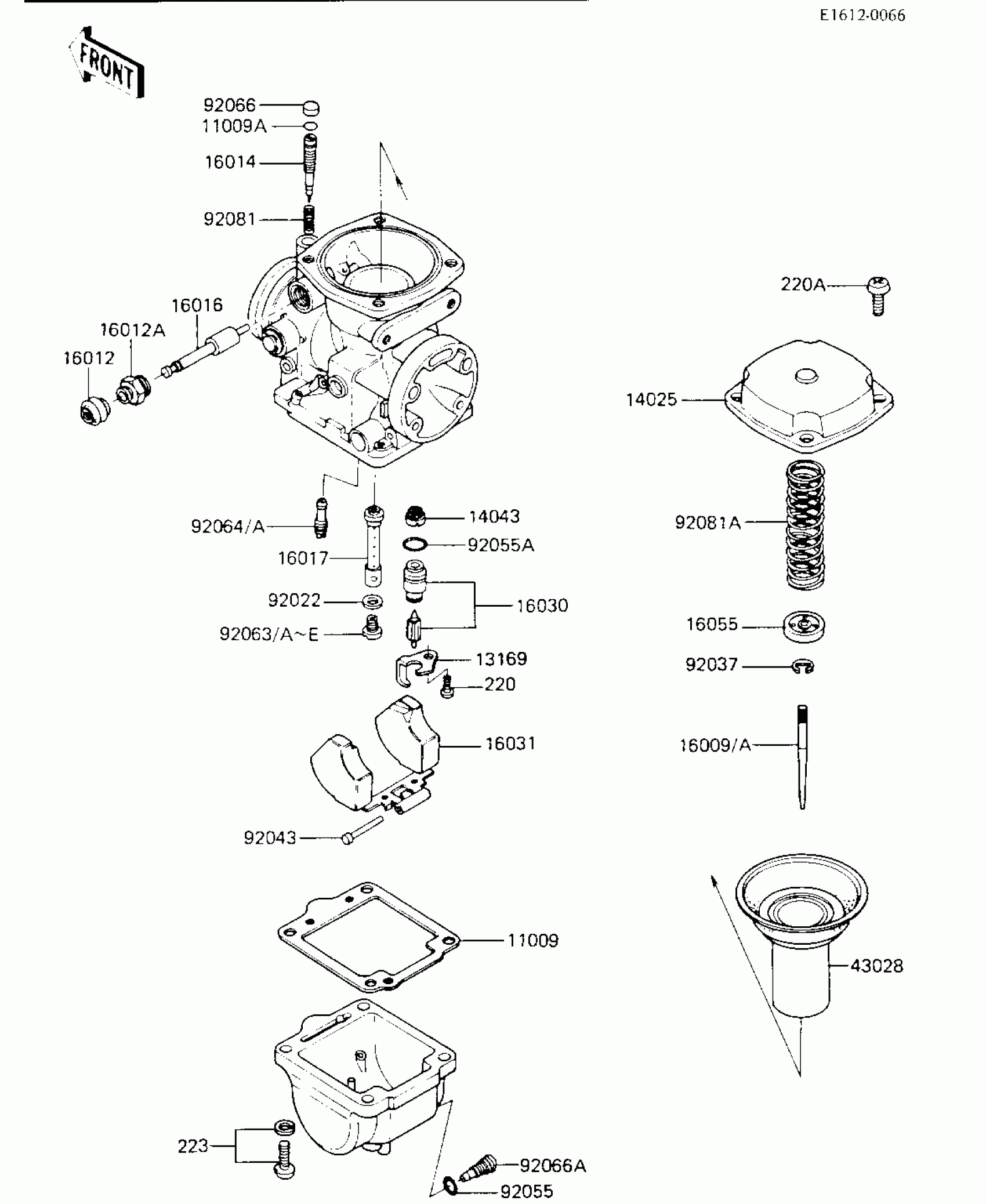

Kawasaki KZ750-K2 (Canada Only) CARBURETOR PARTS Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

11009A

GASKET,"O"RING

16038-022

$6.89

13169

PLATE,FLOAT VALVE

13169-1482

$7.22

14025

TOP-CHAMBER,MIXING

14025-1395

$87.04

14043

FILTER,FLOAT VALVE

14043-1010

$14.86

16009

NEEDLE-JET-5C50

16009-1100

Unavailable

16009A

NEEDLE-JET-5C50

16009-1100

Unavailable

16012

CAP-STARTER PLUNGER,RUBBER

16012-1010

$25.51

16012A

CAP-STARTER PLUNGER

16012-1011

$16.53

16014

SCREW-PILOT AIR

16014-1014

$27.54

16016

PLUNGER

16016-1019

$47.66

16017

JET-NEEDLE

16017-1127

Unavailable

16030

VALVE-FLOAT,2.5

16030-1016

$58.86

16031

FLOAT

16031-1013

$64.88

16055

PLATE,NEEDLE

16055-010

$12.37

43028

DIAPHRAGM

43028-1032

$317.97

92022

WASHER,MAIN JET

16034-001

$4.31

92037

CLAMP,E-TYPE

16008-014

$9.64

92043

PIN,FLOAT

16032-008

$6.57

92055

RING-O

92055-044

$10.38

92055A

RING-O

92055-1105

$5.00

92063

JET-MAIN NO 115R

92063-076

$15.42

92063A

MAIN JET,#110R

92063-1038

$16.50

92063B

JET-MAIN,#A120

92063-1106

$18.50

92063C

JET-MAIN,#117.5

92063-1107

$17.40

92063E

JET-MAIN,#A112.5

92063-1110

$15.42

92064

JET-PILOT

92064-1039

Unavailable

92066A

PLUG,DRAIN

92066-1064

$12.37

92081

SPRING,PILOT SCREW

16022-016

$9.10

92081A

SPRING,DIAPHRAGM VALVE

92081-1363

$26.16

220

SCREW PAN HEAD 4X6

220B0406

$1.67

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

223

SCREW-PAN-WS-CROS,5X16

223B0516

$5.19
