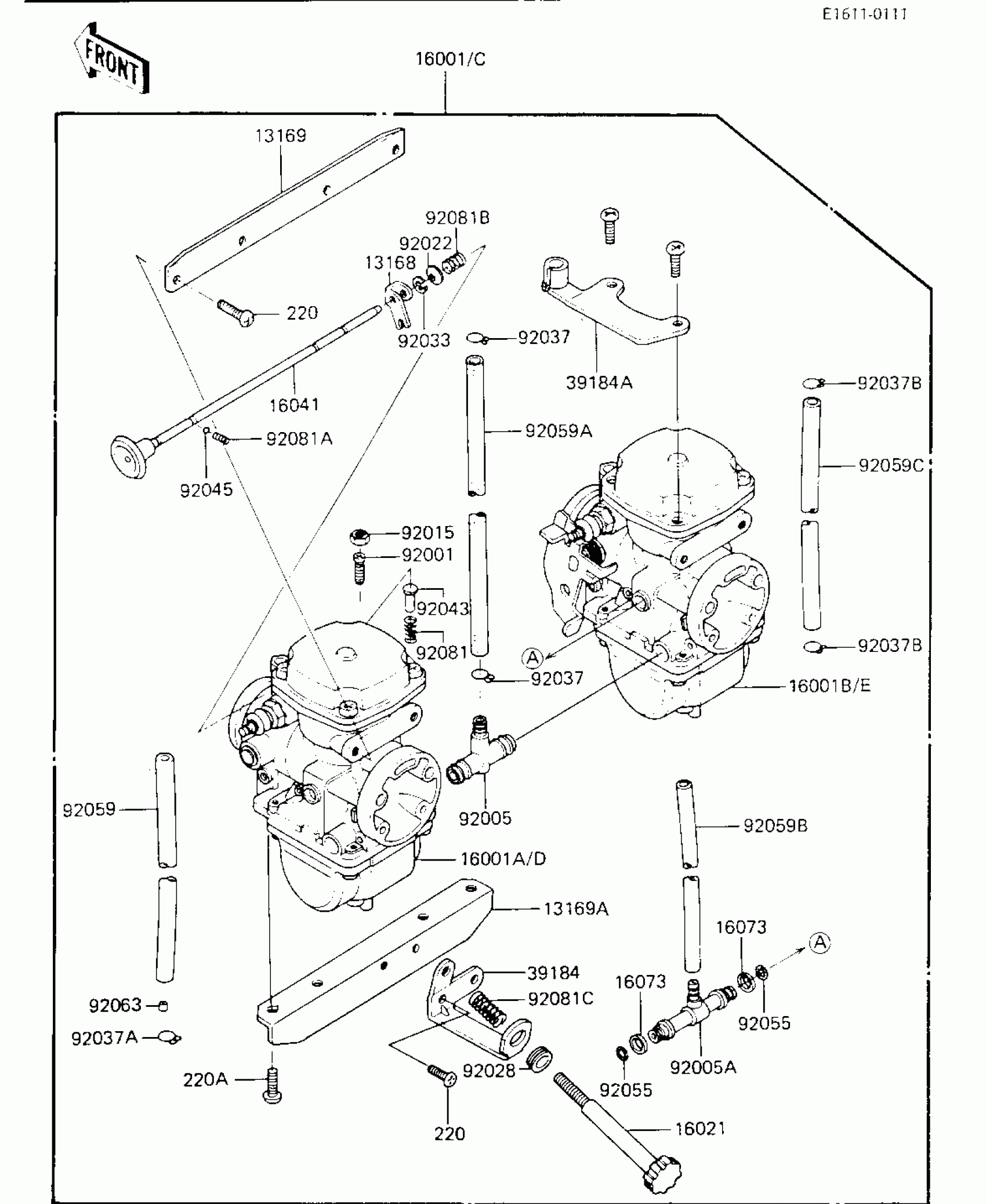

Kawasaki KZ750-K2 (Canada Only) CARBURETOR ASSY Diagram

#

Description
Price

13168

LEVER,CHOKE

13168-1091

$9.07

13169

PLATE

13169-1466

Unavailable

13169A

UNAVAILABLE IN PRICE BOOK

16001-1467

Unavailable

16001C

CARBURETOR (Canada)

16001-1774

Unavailable

16001D

CARBURETOR,LH (Canada)

16001-1775

Unavailable

16001E

CARBURETOR,RH (Canada)

16001-1776

Unavailable

16021

SCREW-THROTTLE STOP

16021-1035

$29.84

16041

SHAFT-CARBURETOR

16041-1025

$66.89

16073

INSULATOR

16073-1013

$7.20

39184

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

$37.19

39184A

BRACKET-ASSY

39184-1010

Unavailable

92001

BOLT,ADJUSTING

92001-1447

$12.04

92005

FITTING

92005-1046

Unavailable

92005A

FITTING

92005-1047

$26.82

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

92022

WASHER,SPRING

92022-1255

$5.86

92028

BUSHING

92028-1071

Unavailable

92033

RING-SNAP,E-TYPE

92033-1066

$5.80

92037

CLAMP,TUBE

92037-1184

$1.45

92037A

CLAMP,TUBE (Canada)

92037-1235

Unavailable

92037B

CLAMP,BREATHER TUBE

92037-174

$2.00

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

$6.40

92045

BALL,STEEL,1/8"

600A0400

$1.40

92055

"0" RING

92055-510

Unavailable

92059

HOSE,AIR VENT,4.5X250

92059-1096

$13.09

92059A

TUBE,7.5X12.5X250

92059-1187

$44.56

92059B

TUBE

92059-1206

Unavailable

92059C

TUBE,5X9X250 (Canada)

92059-1207

Unavailable

92063

JET-MAIN (Canada)

92063-1097

Unavailable

92081

SPRING,THROTTLE VALVE ADJUST

92081-1259

$5.31

92081A

SPRING,SHAFT STOP

92081-1260

$5.80

92081B

SPRING,CHOKE SHAFT

92081-1364

$5.80

92081C

SPRING

92081-1417

$6.54

220

SCREW PAN HEAD 5X8

220B0508

$0.46

220A

SCREW-PAN-CROS,6X14

220B0614

$1.48
