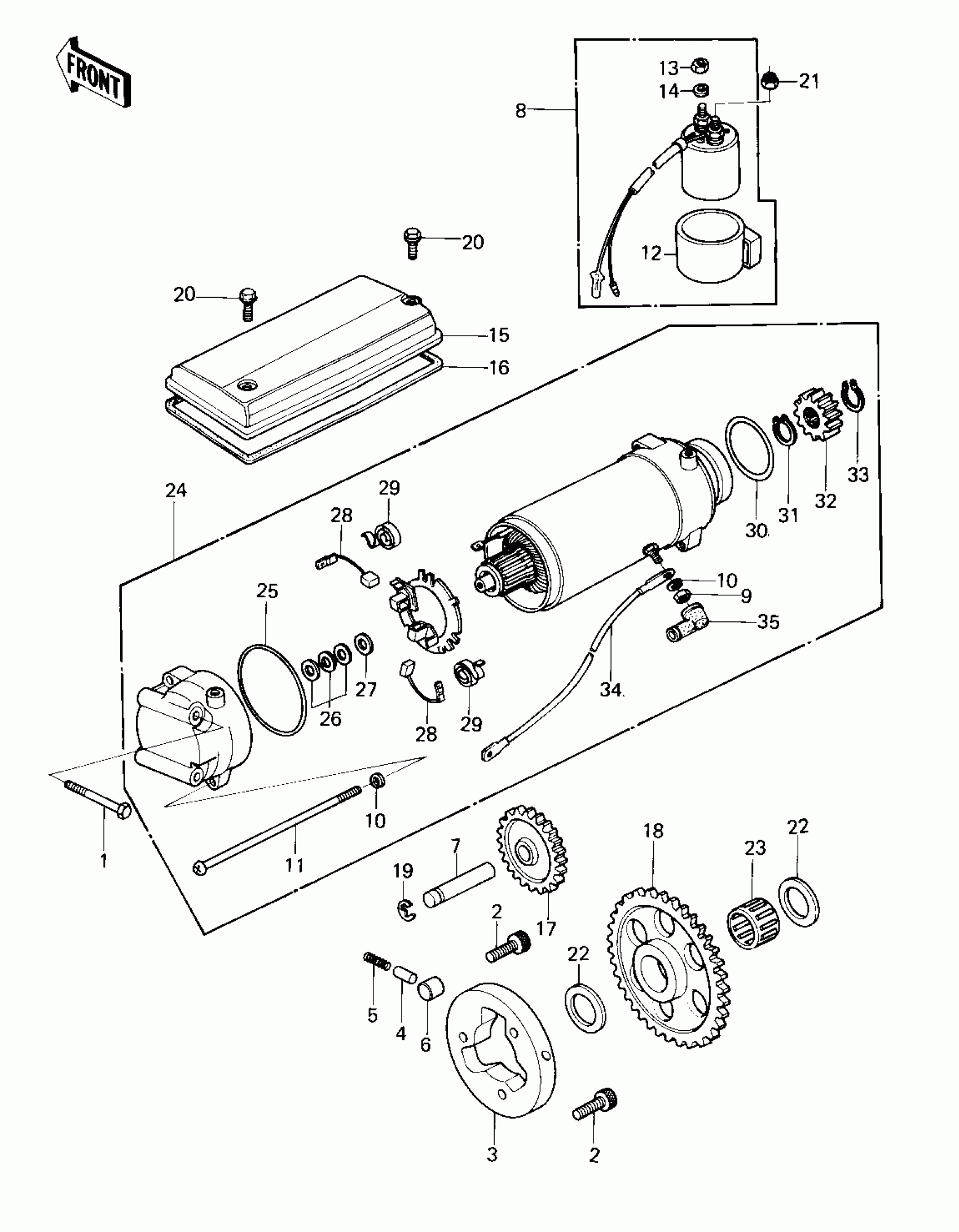

Kawasaki KZ750-E1 STARTER MOTOR/STARTER CLUTCH ('80 KZY 50 Diagram

#

Description
Price

1

BOLT-UPSET

112G0660

Unavailable

2

BOLT-SOCKET,8X12

120P0812

$4.24

3

CLUTCH-ASSY-ONEWAY

13193-1012

Unavailable

4

PIN

92043-087

$12.76

5

SPRING

92081-110

$4.76

6

ROLLER,15X13

92122-004

$11.07

7

SHAFT,IDLE GEAR

21143-003

$14.64

8

SWITCH ASSY,MAGNETIC

21164-005

$159.50

9

NUT 6MM

312B0600

$0.72

10

WASHER SPRING 6MM

461F0600

$0.69

11

SCREW,PAN HEAD,6X130

21099-006

Unavailable

12

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

13

NUT 6MM

312B0600

$0.72

14

WASHER SPRING 6MM

461F0600

$0.69

15

COVER,STARTER

21165-003

Unavailable

16

GASKET,STARTER COVER

21166-003

Unavailable

17

GEAR-SPUR,IDLE,29T

21167-004

$101.58

18

SPROCKET,STARTER,58T

12046-1032

Unavailable

19

CIRCLIP 12MM

482K0200

$1.25

20

BOLT,6X10

92001-1151

$5.01

21

NUT,LOCK 6MM

92017-014

$7.51

22

SPACER,25X36X3.2

92026-1025

$6.16

23

BEARING-NEEDLE,K253017

92046-056

$23.42

24

STARTER-ELECTRIC

21163-1190

$596.26

25

"0" RING,62MM

21027-006

Unavailable

26

WASHER,9.1X18X0.2

21025-011

Unavailable

27

WASHER,THRUST,T=1.6

21025-010

Unavailable

28

BRUSH,CARBON

21039-003

$40.76

29

SPRING-BRUSH

21040-003

Unavailable

30

RING-O,40MM

21027-008

$12.48

31

RING-SNAP,17MM

92033-034

$10.44

32

SPROCKET-ASSY,STARTER

21053-004

$93.28

33

RING-SNAP,13MM

92033-037

$9.80

34

WIRE,STARTER MOTOR

26011-1081

Unavailable

35

GROMMET,STARTER TERMINAL

21017-017

$9.43
