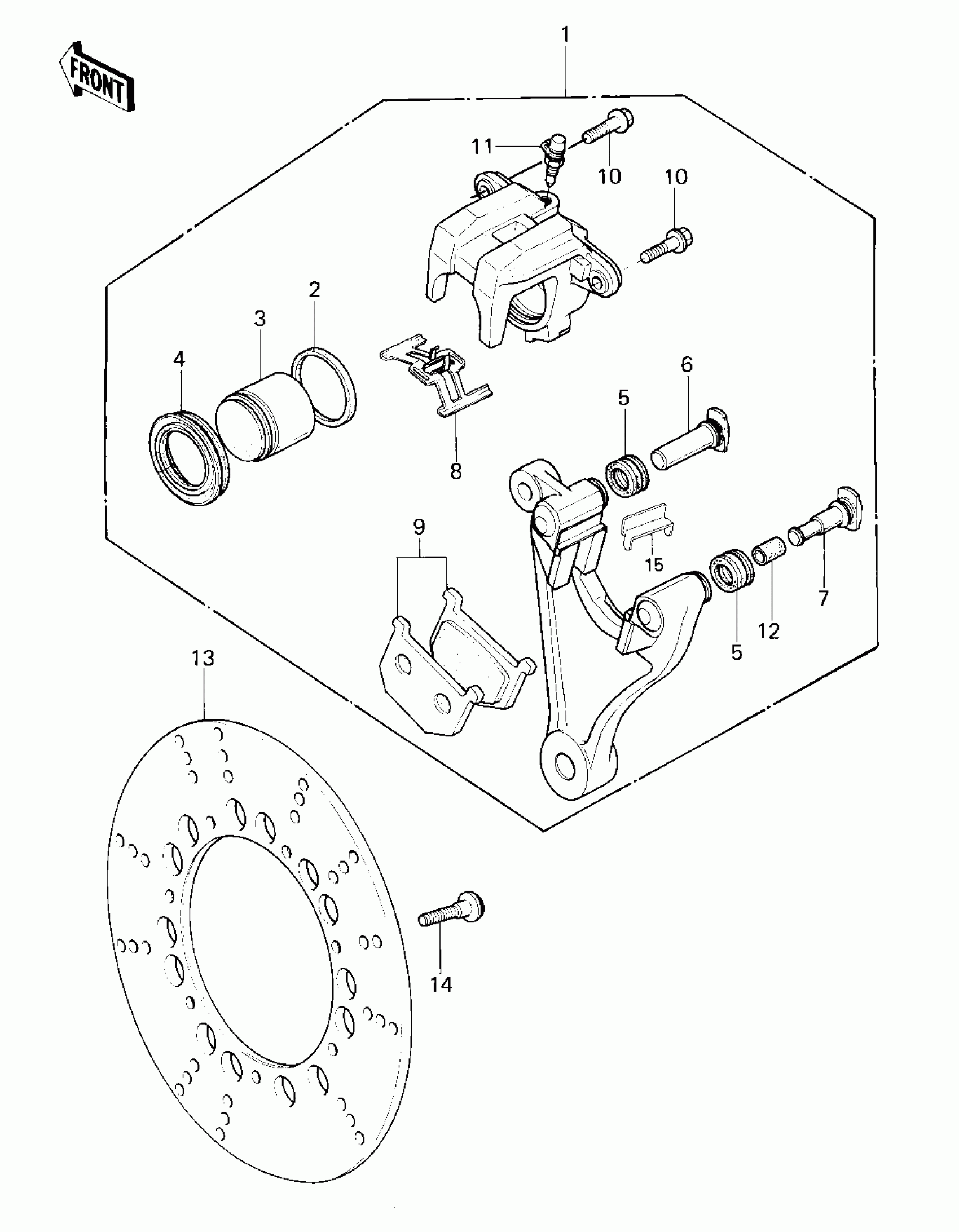

Kawasaki KZ750-E1 REAR BRAKE ('80 KZY 50-E1) Diagram

#

Description
Price

1

CALIPER-ASSY,RR

43041-1057

Unavailable

2

PACKING,PISTON SEAL

43049-002

$13.90

3

PISTON-COMP-BRAKE

43020-1096

Unavailable

4

BOOT,PISTON

49006-1043

$13.85

5

BOOT,SHAFT

49006-1044

$8.68

6

SHAFT-CALIPER

43045-1007

$23.19

7

SHAFT-CALIPER

43045-1008

$23.19

8

SPRING,PAD

92081-1229

$20.97

9

PAD-ASSY-BRAKE

43082-1025

$66.19

10

BOLT,FLANGED,8X25,BLACK

92001-1510

$8.76

11

BLEEDER SET

43085-001

$24.57

12

BUSHING,7.8X11X15.7

92028-1090

$8.05

13

DISC,RR,SILVER

41080-1131

$390.99

14

BOLT,DISC PLATE,8X30

92001-1951

$4.69

15

GUIDE,PAD

13070-1026

$10.11
