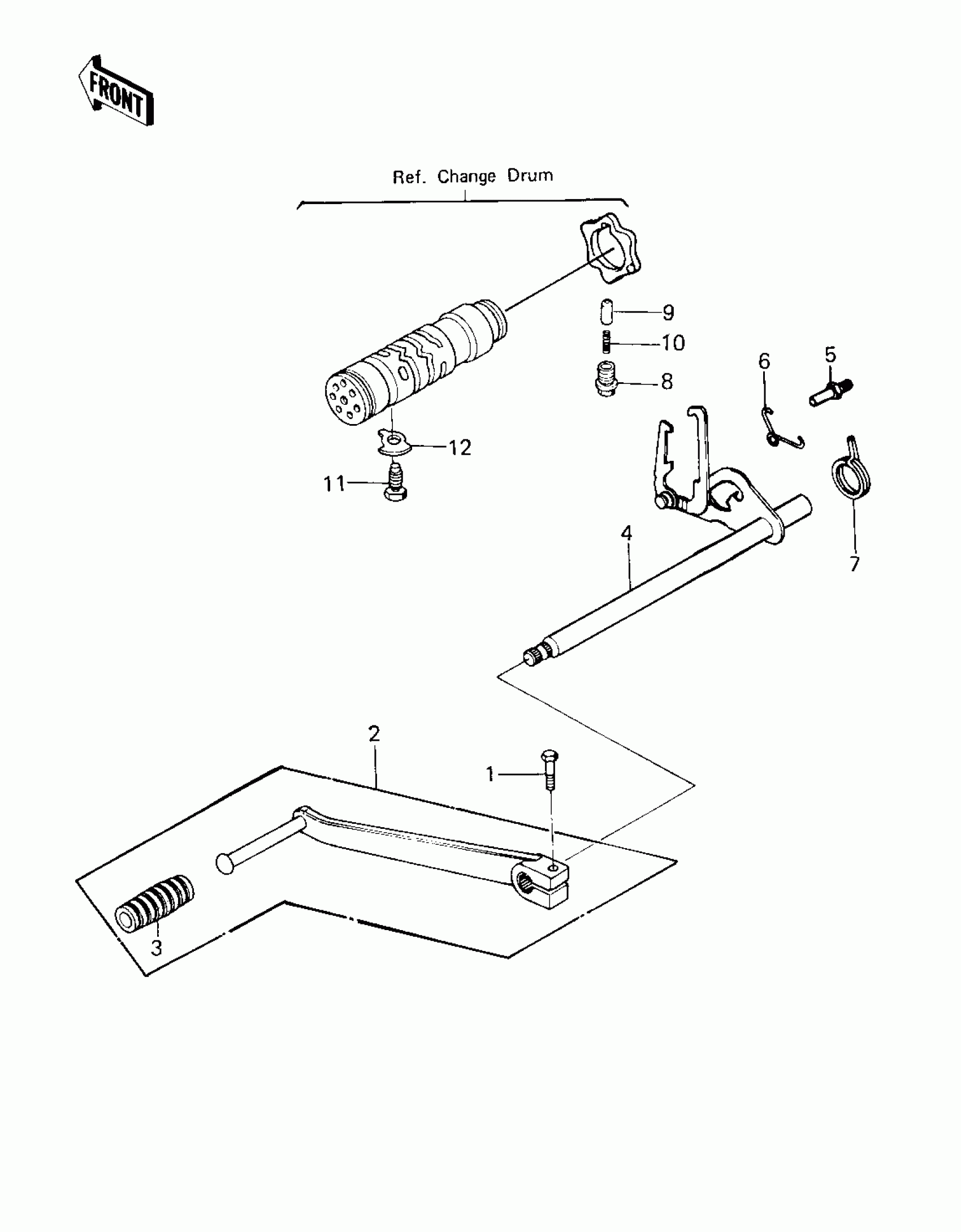

Kawasaki KZ750-E1 GEAR CHANGE MECHANISM ('80 KZY 50-E1) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

PEDAL ASSY,GEAR SHIFT

13242-022

Unavailable

3

DAMPER,CHANGE PEDAL

92160-1036

$3.85

4

LEVER-COMP-CHANGE SHAFT

13161-042

$125.91

5

BOLT,RETURN SPRING

92001-1401

$4.17

6

SPRING

92083-018

$9.47

7

SPRING,CHG PEDL RTRN

92083-028

Unavailable

8

BOLT,NEUTRAL POSITION

92001-1037

$12.73

9

PIN

92043-076

$11.22

10

SPRING

92081-112

$5.37

11

BOLT,10X26

92001-174

$8.03

12

WASHER,LOCK,10MM

92024-074

$3.92
