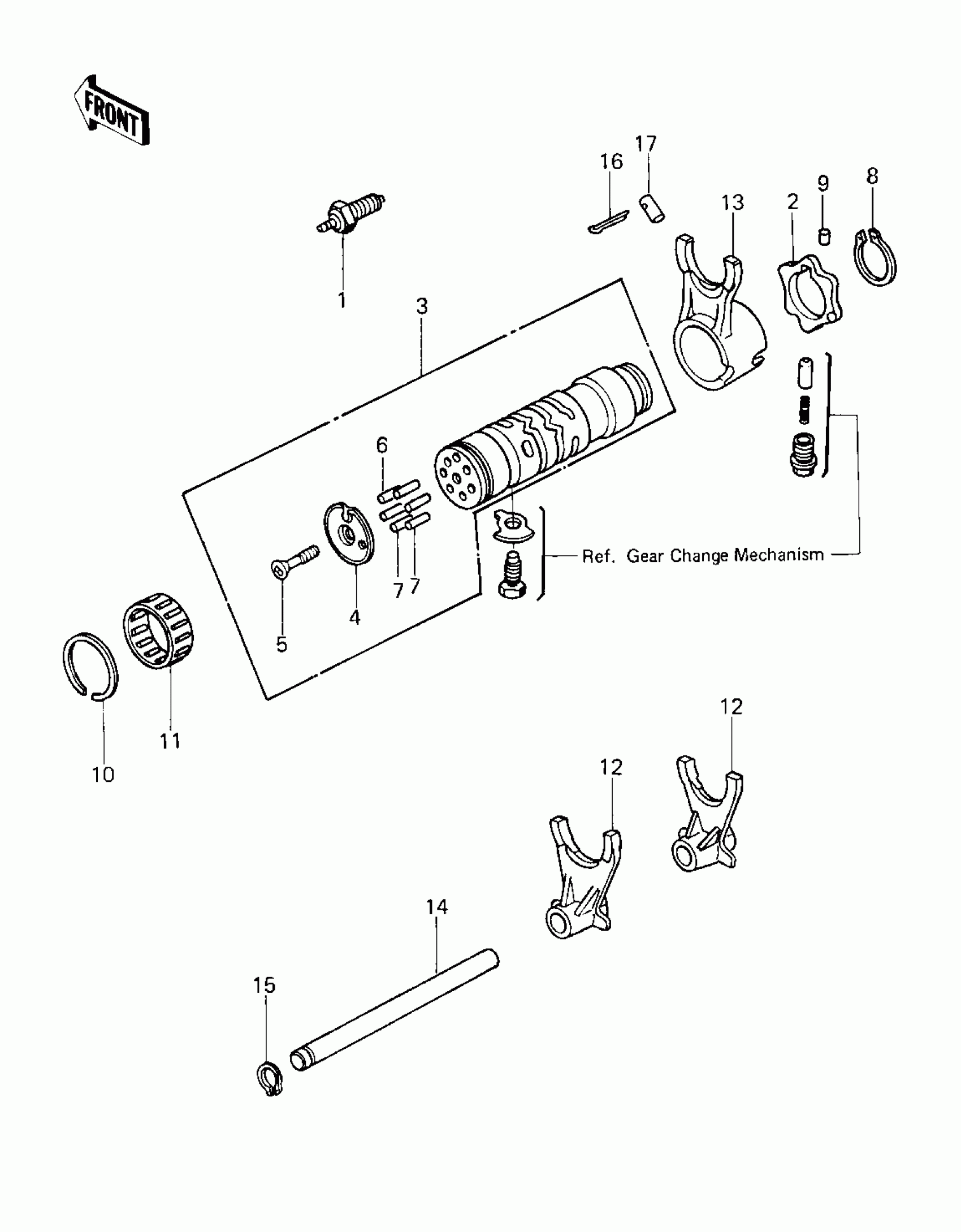

Kawasaki KZ750-E1 GEAR CHANGE DRUM & FORKS ('80 KZY 50-E1) Diagram

Description

Price

SWITCH,NEUTRAL

13151-5002

Unavailable

CAM-CHANGE DRUM

13145-1058

$22.72

DRUM-ASSY-CHANGE

13239-1069

Unavailable

HOLDER,CHANGE DRUM PIN

13091-1104

$26.23

SCREW-CSK-CROS,6X20

221B0620

$2.40

PIN,DOWEL,4X15.8

92042-014

$0.43

PIN,DOWEL,4X13.8

92042-030

$3.92

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

ROLLER,4X6

610A0406

$4.31

RING-SNAP,37MM

92033-035

$7.55

BEARING-NEEDLE,37BTM4312

92046-051

$25.09

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$109.81

FORK-SHIFT,4TH&TOP

13140-1009

$109.81

ROD-SHIFT

49047-5003

$24.34

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

PIN-COTTER,3.0X20

550D3020

$1.78

PIN,DOWEL,8X18

92042-021

$11.51
