Description

Price

1

AXLE,FRONT

41068-1031

Unavailable

2

COLLAR,FRONT AXLE

41069-031

$31.92

3

COLLAR,L=30

92027-1225

$17.60

4

WHEEL-ASSY,FR,SOLID,

41073-1139-21

$1,012.98

5

RECEIVER-SPEEDOMETER

41064-1006

$14.92

6

BEARING BALL #6302Z

601B6302Z

$27.38

7

COLLAR,L=55

92027-1223

$14.88

8

RING-SNAP,42MM

92033-1041

$6.16

9

SEAL-OIL,BJN22425

92049-1058

$9.73

10

CASE-ASSY-METER GEAR

41078-1013

Unavailable

11

GEAR-METER SCREW,26T

41059-026

$42.53

12

GEAR-METER SCREW,9T

41060-1016

$21.74

13

WASHER,5.1X9X0.4

41063-001

$4.69

14

PIN,SPRING

41082-001

$3.92

15

WASHER,5.1X9X0.4

41063-001

$4.69

16

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

17

BUSHING-METER GEAR

92087-1002

$23.27

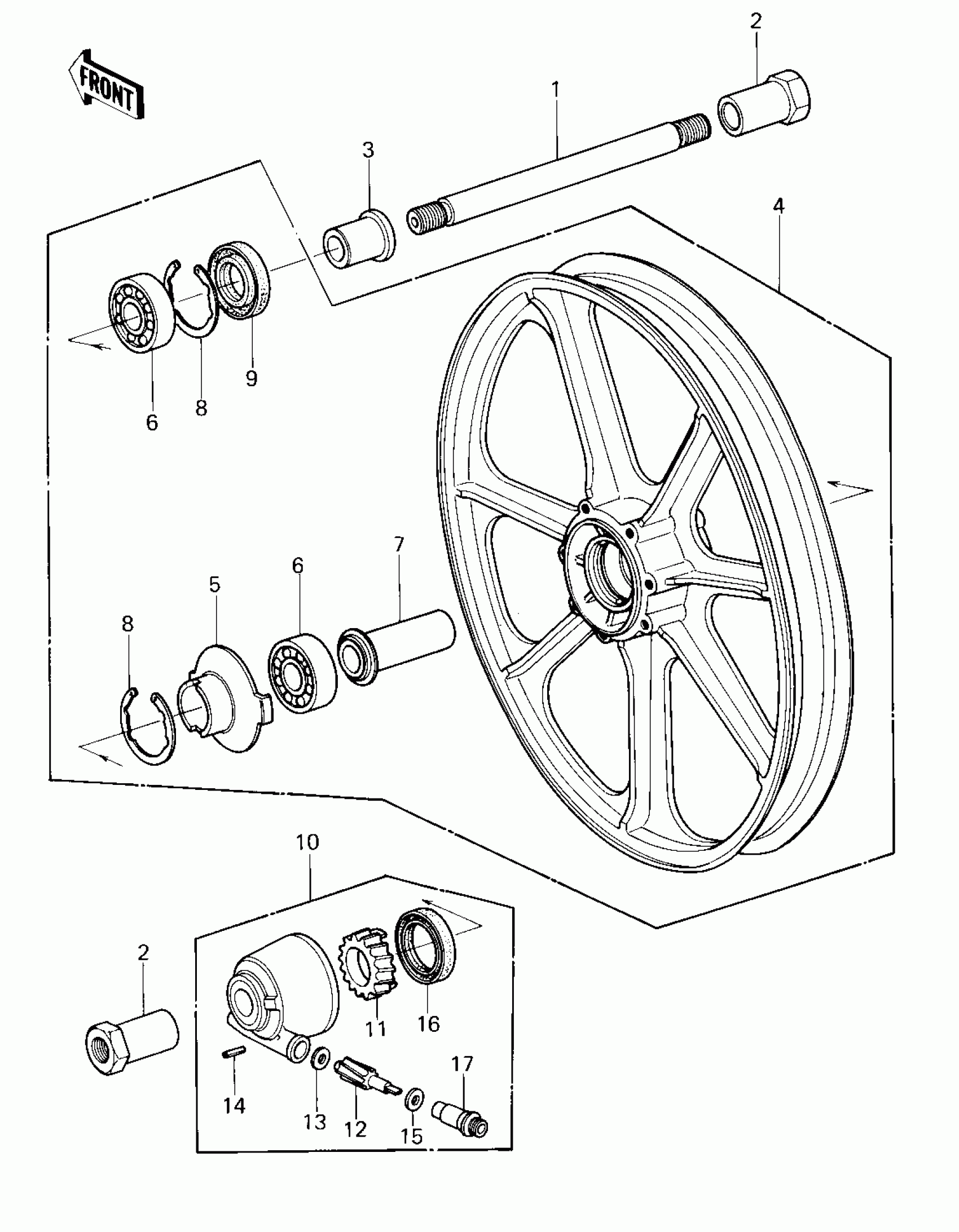

Kawasaki KZ750-E1 FRONT WHEEL/HUB ('80 KZY 50-E1) Diagram

AXLE,FRONT

COLLAR,FRONT AXLE

COLLAR,L=30

WHEEL-ASSY,FR,SOLID,

RECEIVER-SPEEDOMETER

BEARING BALL #6302Z

COLLAR,L=55

RING-SNAP,42MM

SEAL-OIL,BJN22425

CASE-ASSY-METER GEAR

GEAR-METER SCREW,26T

GEAR-METER SCREW,9T

WASHER,5.1X9X0.4

PIN,SPRING

WASHER,5.1X9X0.4

SEAL-OIL,BJN30427-C3

BUSHING-METER GEAR
