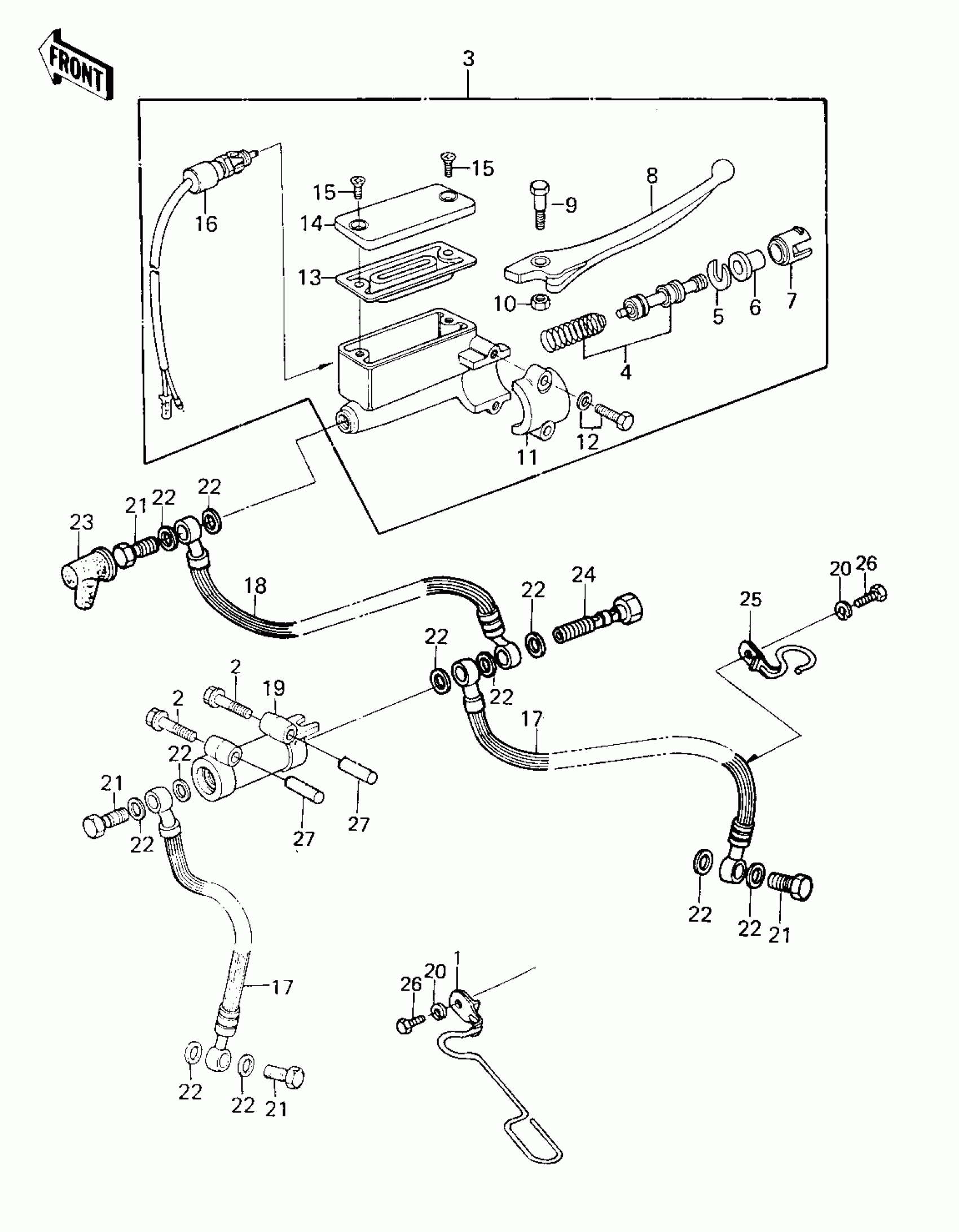

Kawasaki KZ750-E1 FRONT MASTER CYLINDER ('80 KZY 50-E1) Diagram

#

Description
Price

1

CLAMP,CABLE

92037-1116

Unavailable

2

BOLT,FLANGED,6X65

130G0665

$1.42

3

CYLINDER ASSY,FRONT

43015-1032

Unavailable

4

PISTON-COMP-BRAKE

43020-1023

$95.02

5

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

6

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

7

LINER,PISTON

14008-1007

Unavailable

8

LEVER,FRONT BRAKE

46092-1004

Unavailable

9

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

10

NUT 6MM

312B0600

$0.72

11

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

12

BOLT,6X25,W/WASHER

43033-003

Unavailable

13

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

14

CAP-BRAKE

43026-1006

Unavailable

15

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

16

SWITCH,BRAKE

27010-1028

$33.48

17

HOSE,BRAKE

43059-1030

$104.63

18

HOSE-BRAKE

43059-1538

$101.58

19

JOINT-BRAKE

43061-1002

$72.14

20

WASHER SPRING 6MM

461F0600

$0.69

21

BOLT,OIL,L=23

92002-1888

$5.48

22

WASHER,10.5X15X1.5

43067-001

$2.15

23

BOOT,DUST

49006-1041

$11.49

24

BOLT,OIL,L=37

92002-1909

$11.83

25

CLAMP,FRNT BRK HOSE

92037-1054

Unavailable

26

BOLT-UPSET,6X12

112G0612

$1.45

27

COLLAR,8X12X25

92027-1249

Unavailable
