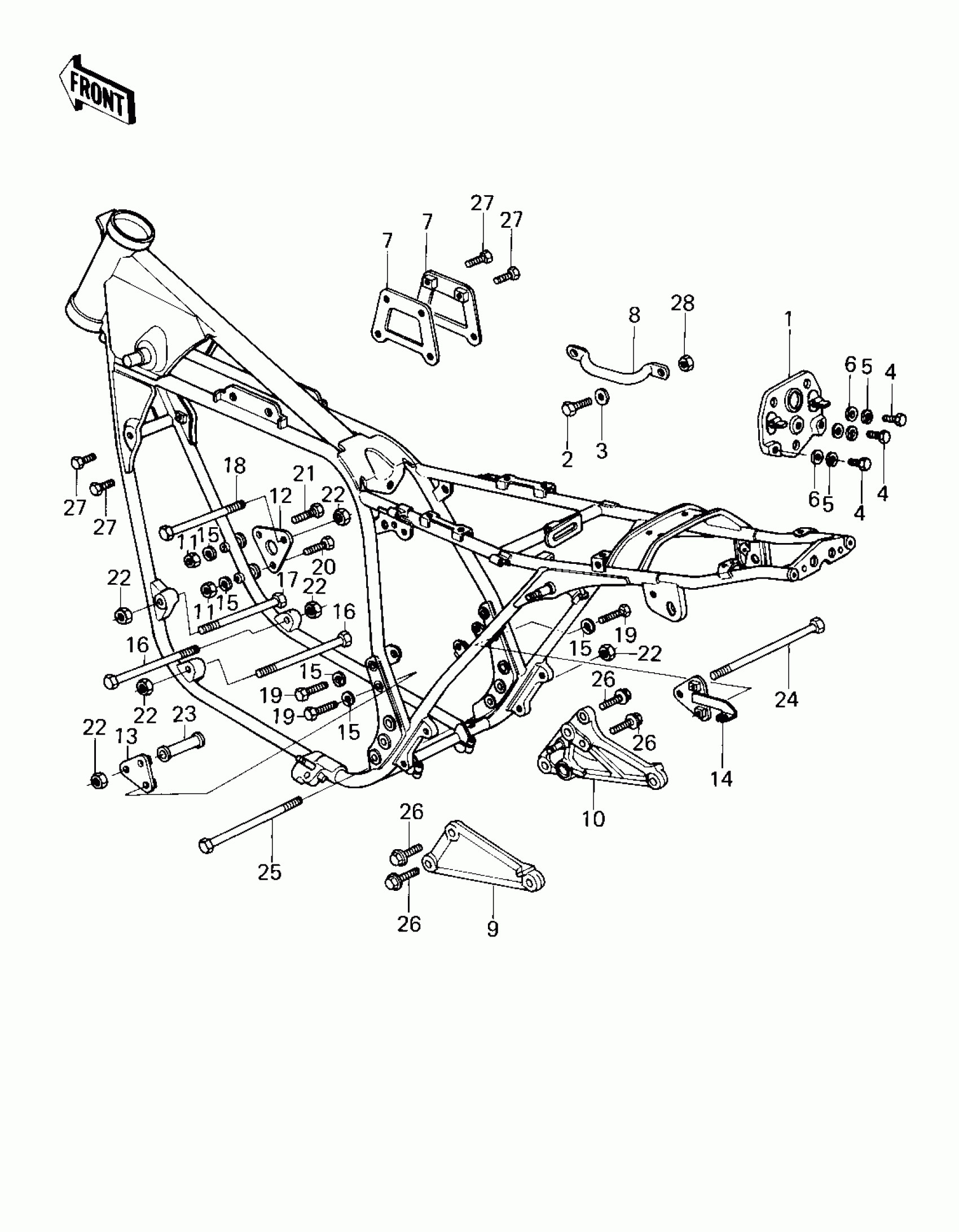

Kawasaki KZ750-E1 FRAME FITTINGS ('80 KZY 50-E1) Diagram
#
Description
Price
1
BRACKET,TAIL LAMP
11034-1753
Unavailable
2
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
3
WASHER PLAIN 8MM
410B0800
$0.93
4
BOLT-UPSET,6X12
112G0612
$1.45
5
WASHER SPRING 6MM
461F0600
$0.69
6
WASHER PLAIN 6MM
411B0600
$2.84
7
PLATE-COIL
21048-1001
$20.77
8
GRIP,FRAME
32109-1013
$15.00
9
STAY,MUFFLER,LH
35011-1080
$105.79
10
STAY,MUFFLER,RH
35011-1081
$106.00
11
NUT,8MM
311B0800
$0.67
12
PLATE,FRONT ENG.MOUNT
32030-063
Unavailable
13
PLATE,RR ENG MONT,L.
32030-064
Unavailable
14
PLATE,ENG.MOUNT,R.H.
32029-1129
$18.20
15
WASHER SPRING 8MM
461F0800
$0.40
16
BOLT,HEX HEAD,10X84
92001-1048
Unavailable
17
BOLT,HEX HEAD,10X72
92001-1049
Unavailable
18
BOLT,HEX HEAD,10X46
92001-1050
Unavailable
19
BOLT,HEX HEAD,8X40
92001-1230
Unavailable
20
BOLT,FLANGED,8X60
92001-1581
$5.14
21
BOLT,8X63
92001-1397
$5.43
22
NUT,LOCK,10MM
92019-021
$6.11
23
COLLAR,L=54
92027-275
$17.63
24
BOLT,ENGINE MOUNTING
92091-023
Unavailable
25
BOLT,HEX HEAD,10X219
92091-032
Unavailable
26
BOLT,FLANGED,8X28
92001-1095
$6.57
27
BOLT,HEX HEAD,6X12
92001-1171
Unavailable
28
NUT,FLANGED,8MM
92015-1022
$0.48
