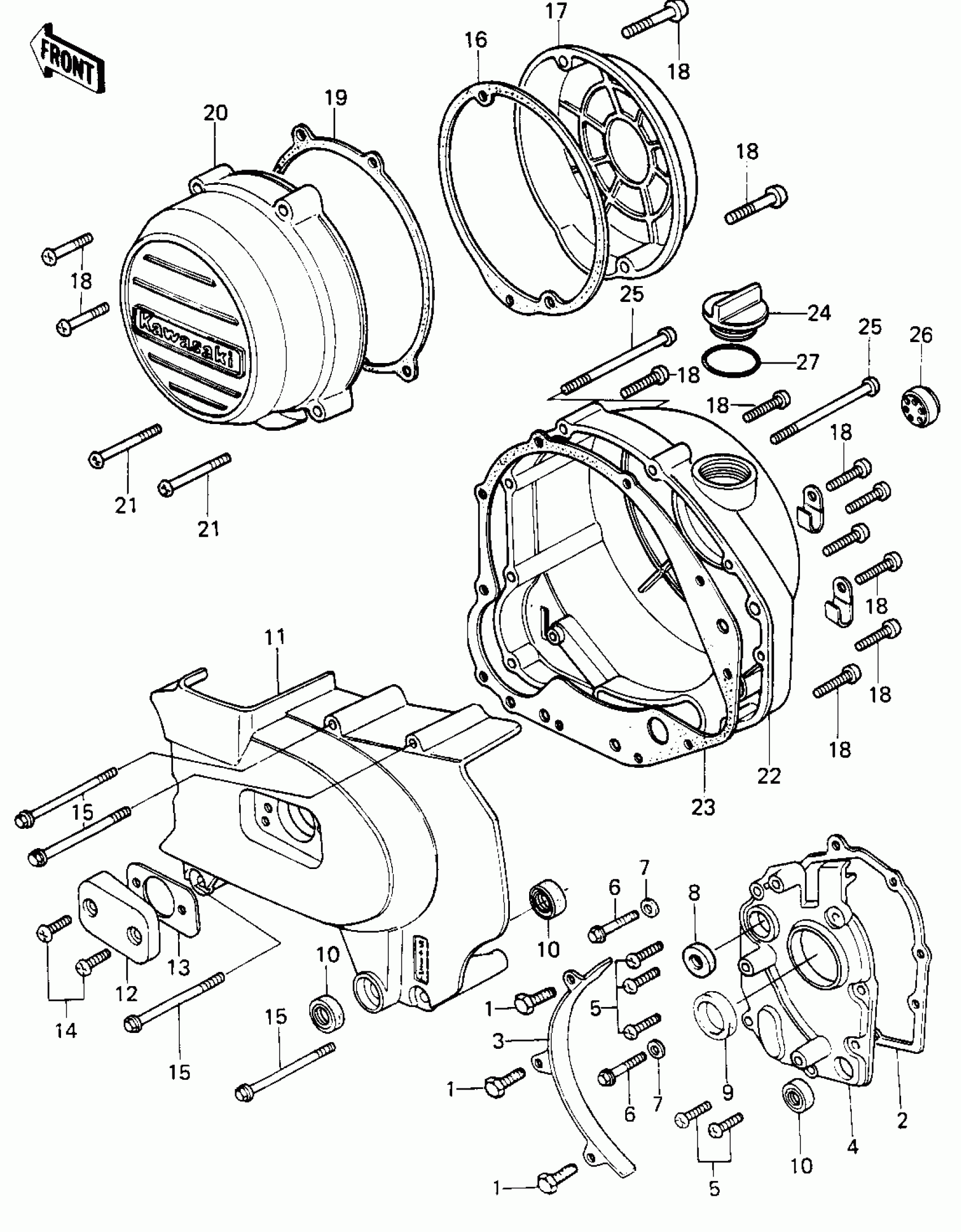

Kawasaki KZ750-E1 ENGINE COVERS ('80 KZY 50-E1) Diagram
#
Description
Price
1
BOLT-UPSET 6X14
112B0614
Unavailable
2
GASKET,TRANSMISSION COVER
11060-1056
Unavailable
3
GUIDE-CHAIN
12053-1006
$10.97
4
COVER,MISSION
14024-011
Unavailable
5
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
6
BOLT,HEX HEAD,6X35
92001-164
$6.60
7
WASHER OIL PUMP BANJO
92022-077
$3.99
8
SEAL-OIL,SD-8187
92049-1017
$9.89
9
SEAL-OIL,SC325210
92050-024
$8.17
10
SEAL-OIL,TB13225.5
92051-005
$7.74
11
COVER,ENG SPROCKT,BUF
14026-035-80
Unavailable
12
COVER,CLUTCH ADJUSTNG
14028-006-80
Unavailable
13
GASKET,CLUTCH ADJ CAP
14049-004
$10.50
14
SCREW PAN HEAD 6X18
220B0618
$3.67
15
BOLT-FLANGED,6X70
130G0670
$4.28
16
GASKET,PULSING COIL CAP
11060-1053
$8.12
17
CAP,CONTACT BREAKER
11012-1098
Unavailable
18
SCREW PAN HEAD 6X30
220B0630
$3.41
19
GASKET,GENERATOR COVER
11009-1987
$11.80
20
COVER,GENERATOR
14031-1040
Unavailable
21
SCREW PAN HEAD 6X40
220B0640
Unavailable
22
COVER,CLUTCH F.BLACK
14032-1026
Unavailable
23
GASKET,R.H.ENG COVER
14046-035
$30.54
24
CAP-OIL FILLER
16115-013
$19.96
25
SCREW PAN HEAD 6X80
220B0680
$7.20
26
GAUGE,OIL LEVEL
52015-004
$48.05
27
RING-O,31.5X2.6
92055-049
$4.31
