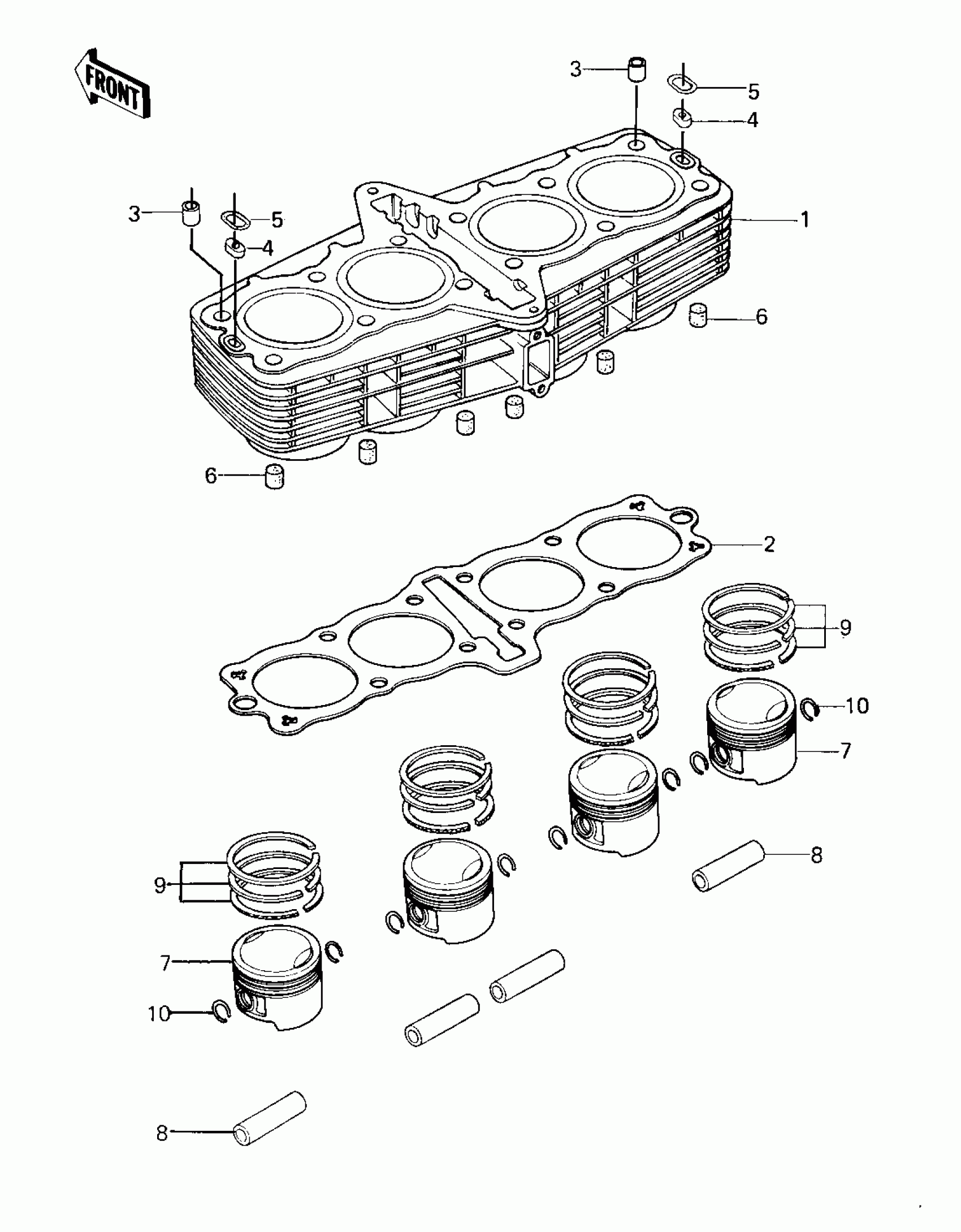

Kawasaki KZ750-E1 CYLINDER PISTONS ('80 KZY 50-E1) Diagram

#

Description
Price

1

CYLINDER,

11005-1054

Unavailable

2

GASKET,CYLINDER BASE

11060-1144

Unavailable

3

PIN,11X14X12.3

92043-1266

$1.08

4

PIN,OIL LINE

92043-1210

$7.62

5

RING-O,CYLINDER OIL LINE PIN

92055-1147

$9.89

6

PLUG,DAMPER

92066-1016

Unavailable

7

PISTON,STD

13001-1027

Unavailable

7

PISTON-ENGINE,STD

13001-1059

Unavailable

7

PISTON,0.020" O.S.

13029-1021

Unavailable

7

PISTON,0.020" O.S.

13029-1021

Unavailable

7

PISTON,0.040" O.S.

13027-1022

Unavailable

7

PISTON,0.040" O.S.

13027-1022

Unavailable

8

PIN-PISTON

13002-1001

$6.22

9

RING SET,PISTON STD

13008-5031

$110.56

9

RING SET,PISTON 0.020

13025-5014

Unavailable

9

RING SET,PISTON,0.040

13024-5014

Unavailable

10

RING-SNAP

92036-005

$4.07
