Description

Price

1

HOLDER-CARBURETOR

16065-1132

$34.16

2

SCREW PAN HEAD 6X18

220B0618

$3.67

3

PLUG,CAMSHAFT,11.35X13.5

92066-1111

$12.21

4

HEAD-ASSY-CYLINDER,BL

11002-1077

Unavailable

4

HEAD-ASSY-CYLINDER,BL

11002-1078

Unavailable

5

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

6

WASHER-PLAIN,10MM

411B1000

$0.93

7

GUIDE-VALVE,INTAKE

12013-009

$27.29

8

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

9

BOLT,FLANGED,6X38

92001-1105

$4.69

10

BOLT,FLANGED,8X43

92001-1445

Unavailable

11

STUD,6X27

92004-066

$5.17

12

NUT,FLANGED CAP,10MM

92015-076

$13.08

13

RING-SNAP,VALVE GUIDE

92036-023

$0.48

14

PIN,DOWEL,6.3X8X14

92042-007

$5.70

15

CLAMP-INLET PIPE

92037-061

Unavailable

16

SCREW,PAN HEAD

92011-037

Unavailable

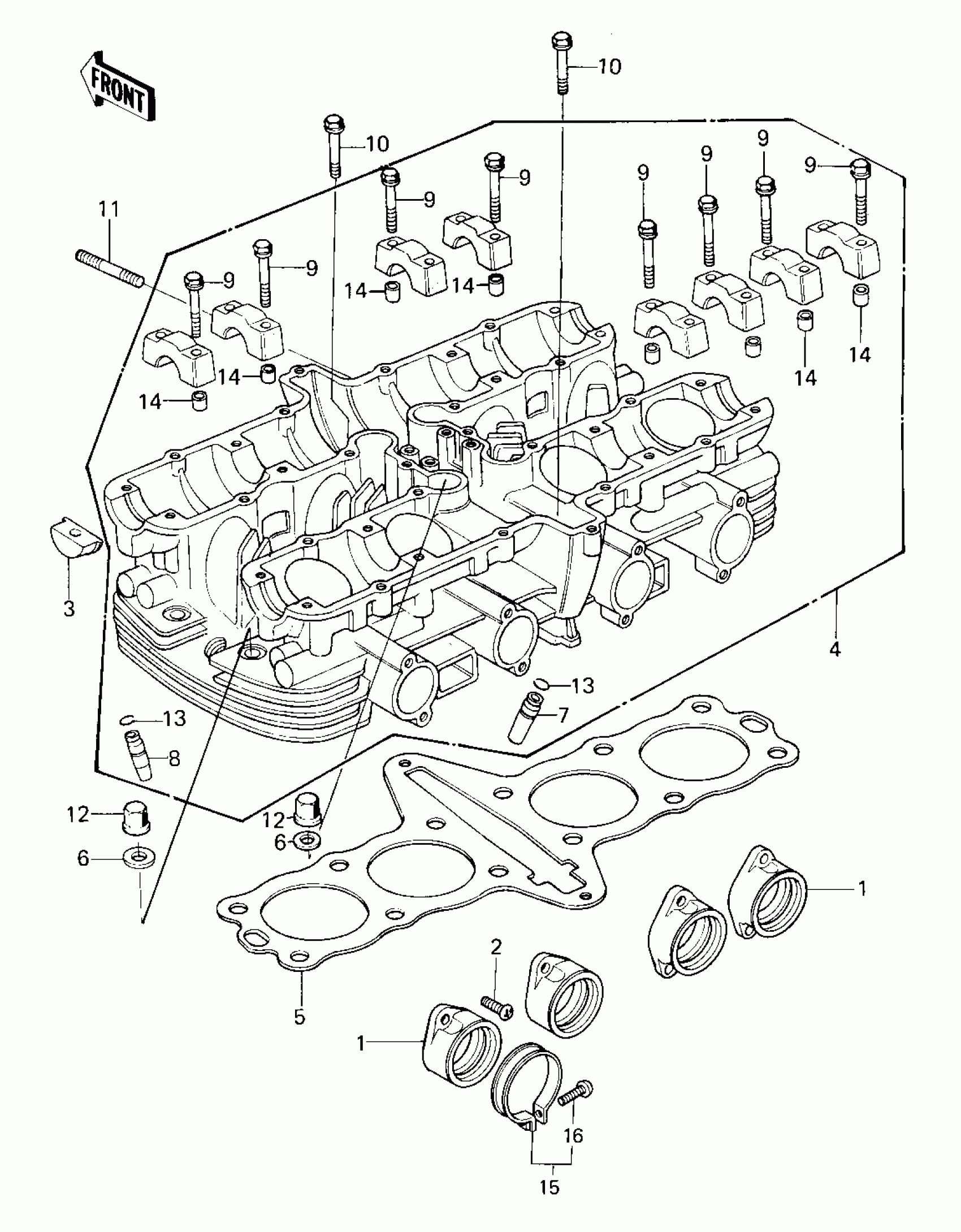

Kawasaki KZ750-E1 CYLINDER HEAD ('80 KZY 50-E1) Diagram

HOLDER-CARBURETOR

SCREW PAN HEAD 6X18

PLUG,CAMSHAFT,11.35X13.5

HEAD-ASSY-CYLINDER,BL

HEAD-ASSY-CYLINDER,BL

GASKET-HEAD,CYLINDER

WASHER-PLAIN,10MM

GUIDE-VALVE,INTAKE

GUIDE-VALVE,EXHAUST

BOLT,FLANGED,6X38

BOLT,FLANGED,8X43

STUD,6X27

NUT,FLANGED CAP,10MM

RING-SNAP,VALVE GUIDE

PIN,DOWEL,6.3X8X14

CLAMP-INLET PIPE

SCREW,PAN HEAD
