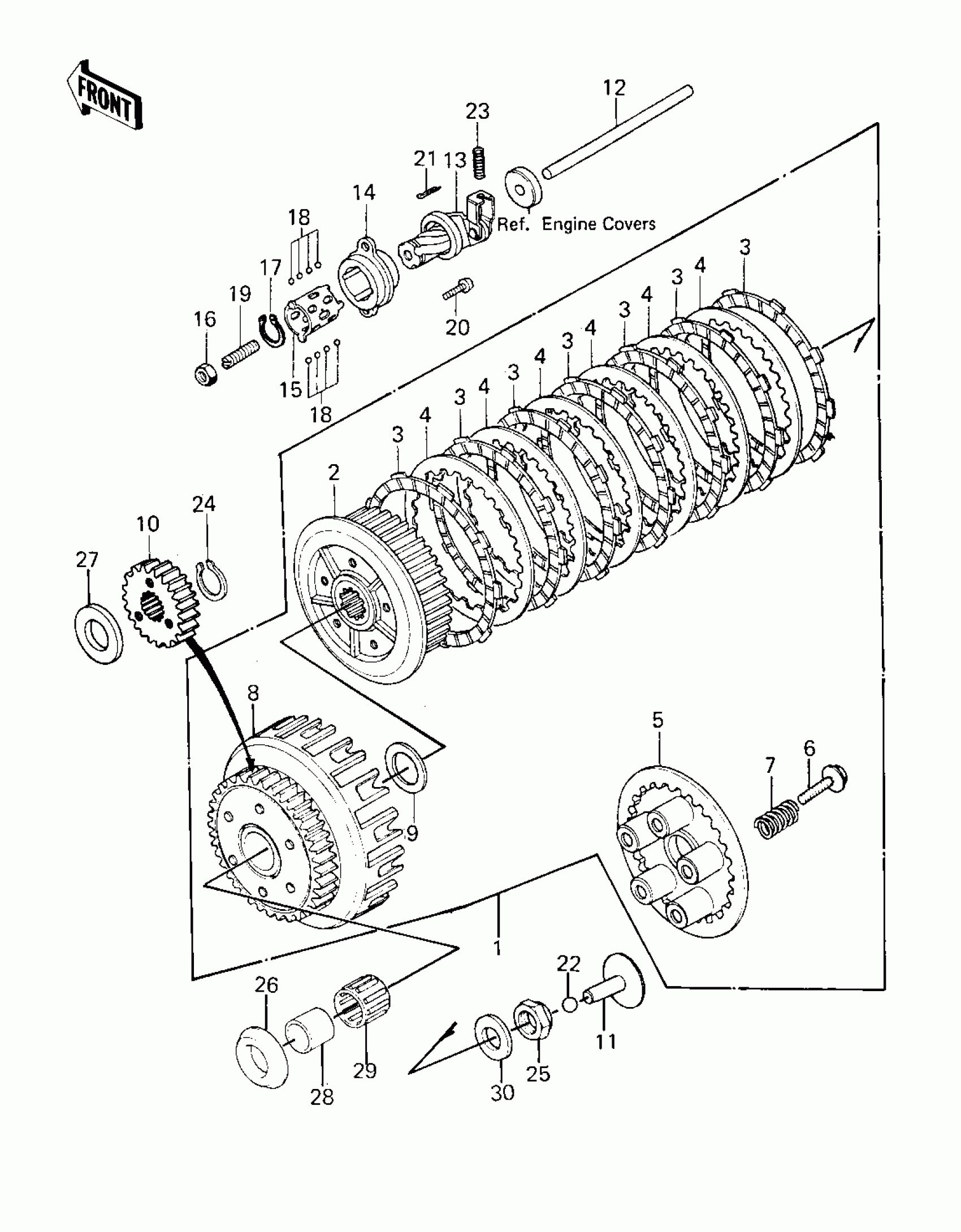

Kawasaki KZ750-E1 CLUTCH ('80 KZY 50-E1) Diagram
#
Description
Price
1
CLUTCH-ASSY
13081-1034
Unavailable
2
HUB-CLUTCH
13087-043
$154.96
3
PLATE,CLUTCH FRICTION
13088-030
$26.17
4
PLATE,CLUTCH STEEL
13089-022
Unavailable
5
PLATE,CLUTCH SPRING
13187-006
Unavailable
6
BOLT,FLANGED,6X18
92001-1066
$6.22
7
SPRING,CLUTCH
92081-1176
$10.64
8
HOUSING-COMP-CLUTCH
13095-1033
Unavailable
9
SPACER,25.5X47X2.5
92026-022
$9.91
10
GEAR,SECONDARY SHAFT,29T
13121-037
Unavailable
11
PUSHER,CLUTCH SPRG P
13116-022
Unavailable
12
ROD,CLUTCH PUSH
13116-1007
Unavailable
13
INNER,CLUTCH RELEASE
13102-027
Unavailable
14
OUTER,CLUTCH RELEASE
13118-011
Unavailable
15
RETAINER
13197-004
Unavailable
16
NUT-HEX-SMALL,8MM
318B0800
$0.59
17
CIRCLIP-TYPE-C,15MM
480J1500
$2.31
18
BALL,STEEL,1/8"
600A0400
$1.40
19
SCREW,SLOTTED,8X25
92014-014
Unavailable
20
SCREW-PAN-CROS,6X16
220B0616
$2.84
21
PIN-COTTER,1.6X15
550D1615
$2.51
22
BALL-STEEL,3/8"
600A1200
$1.56
23
SPRING,CLUTCH RELEASE
92081-069
$7.51
24
CIRCLIP-TYPE-C,22MM
480J2200
$5.00
25
NUT,20MM
92015-1555
$13.08
26
SPACER,THRUST,T=5.5
92026-116
$17.60
27
COLLAR,23X46X4.5
92027-263
$6.15
28
BUSHING,25X32X23.6
92028-178
$25.03
29
BEARING-NEEDLE,KTV323723
92046-028
$21.24
30
WASHER
92125-002
Unavailable
