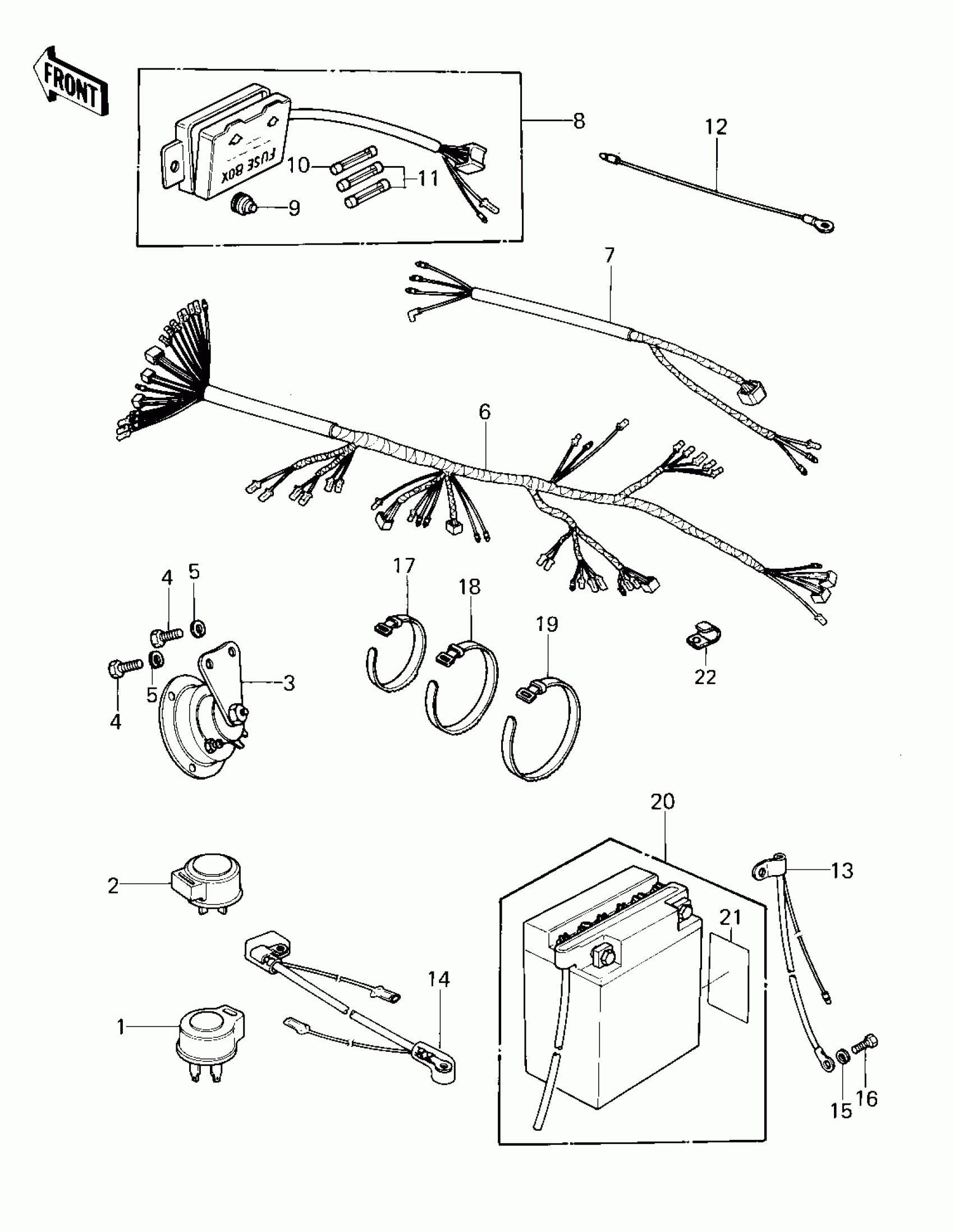

Kawasaki KZ750-E1 CHASSIS ELECTRICAL EQUIPMENT ('80 KZY 50 Diagram

#

Description
Price

1

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

2

RELAY,TURN SIGNAL

27002-016

Unavailable

3

HORN

27003-076

Unavailable

4

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

5

WASHER SPRING 8MM

461F0800

$0.40

6

WIRING HARNESS,MAIN

26001-1152

Unavailable

7

WIRING HARNESS,CENTER

26001-1117

Unavailable

8

FUSE ASSY

26004-1006

$105.20

9

DAMPER,FUSE

92075-279

$6.45

10

FUSE,20A,L=25

26006-005

$5.06

11

FUSE,10A,L=25

26006-003

$4.72

12

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

13

WIRE,LEAD,BATTERY(-)

26011-1032

Unavailable

14

WIRE,LEAD,BATTERY GRD

26011-1080

Unavailable

15

WASHER SPRING 6MM

461F0600

$0.69

16

BOLT,6X10

92001-137

$6.52

17

BAND,L=123

92072-030

$5.00

18

BAND,L=149

92072-031

$5.00

19

BAND,L=186

92072-056

$5.00

20

FB BAT FB12A-A

26012-1004

$95.75

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable

22

CLAMP

92037-113

$6.15
