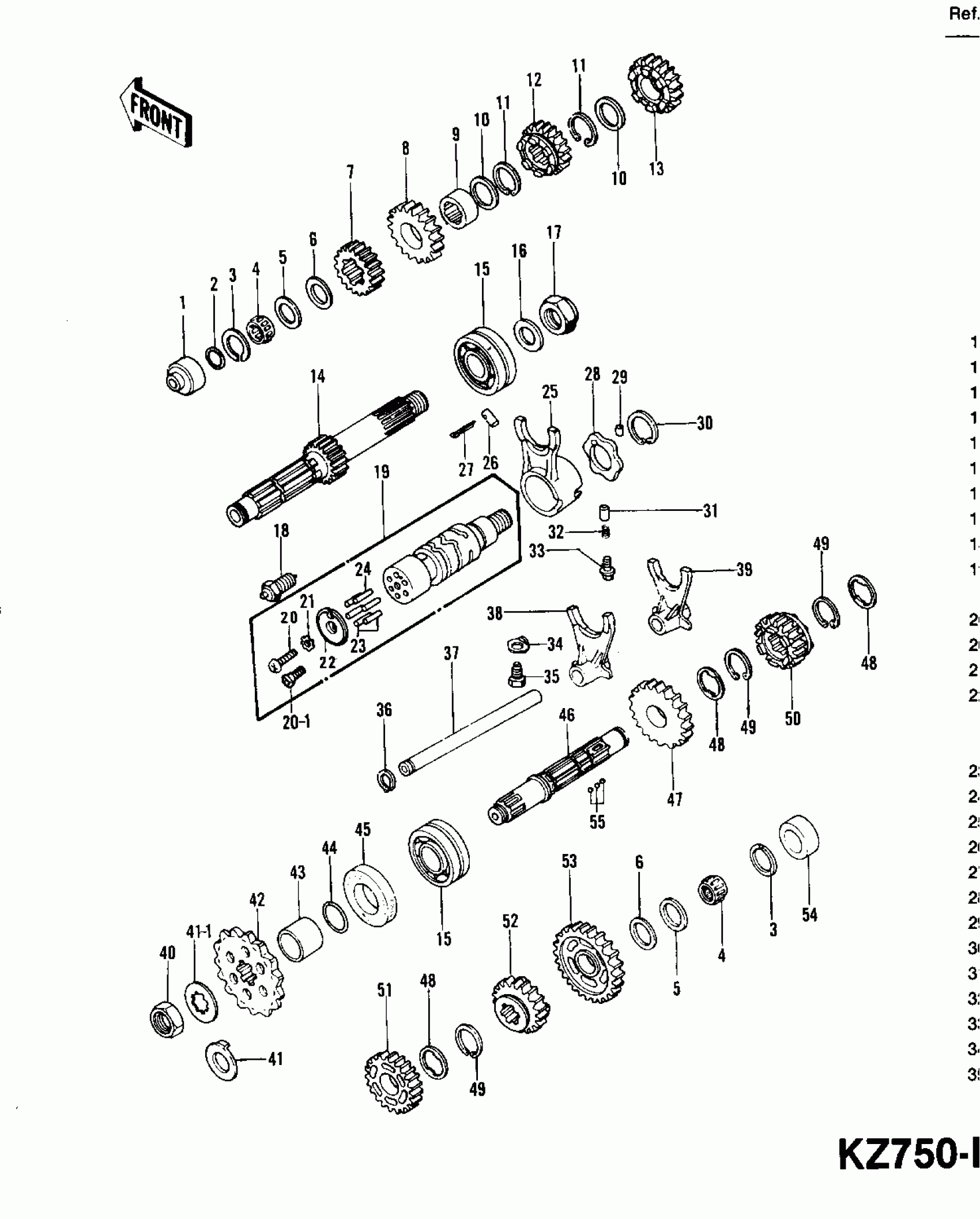

Kawasaki KZ750-B4 TRANSMISSION (KZ750-B3/B4) Diagram
#
1
BUSHING,DRIVE SHAFT
92028-179
Unavailable
2
O RING,7MM
670B1507
Unavailable
3
RING-SNAP,20MM
92033-015
Unavailable
4
BEARING-NEEDLE,VS20/14A
92046-1030
Unavailable
5
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
5
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
5
WASHER,20.3X30X0.7,STEEL
92022-1026
Unavailable
6
WASHER THRUST
92022-113
Unavailable
7
GEAR,INPUT 2ND,19T
13130-041
Unavailable
8
TOP GEAR,DRIVE SHAFT
13129-1045
Unavailable
9
BUSHING,INPUT TOP GEAR
92028-1007
Unavailable
10
WASHER,25.3X30X1
92022-161
Unavailable
11
RING-SNAP,24MM
92033-026
Unavailable
12
3RD GEAR,DRIVE SHAFT
13129-1032
Unavailable
13
4TH GEAR,DRIVE SHAFT
13129-1044
Unavailable
14
SHAFT,DRIVE
13127-051
Unavailable
15
BEARING-BALL,83993SH2-CS
92045-035
Unavailable
16
WASHER
92125-002
Unavailable
17
NUT,20MM
92015-1555
Unavailable
18
SWITCH,NEUTRAL
13151-5002
Unavailable
19
DRUM ASSY,GEAR SHIFT
13239-1017
Unavailable
19
DRUM ASSY,GEAR SHIFT
13239-1017
Unavailable
20
SCREW-PAN-CROS,6X14
220B0614
Unavailable
20-1
SCREW-CSK-CROS,6X20
221B0620
Unavailable
21
WASHER LOCK 6MM
464G0600
Unavailable
22
HOLDER,SHIFT DRUM PIN
13142-018
Unavailable
22
HOLDER,CHANGE DRUM PIN
13091-1104
Unavailable
22
HOLDER,CHANGE DRUM PIN
13091-1104
Unavailable
23
PIN,DOWEL,4X13.8
92042-030
Unavailable
24
PIN,DOWEL,4X15.8
92042-014
Unavailable
25
FORK-SHIFT,4TH&TOP
13140-1009
Unavailable
26
PIN,DOWEL,8X18
92042-021
Unavailable
27
PIN-COTTER,3.0X20
550D3020
Unavailable
28
CAM-CHANGE DRUM
13145-1058
Unavailable
29
ROLLER,4X6
610A0406
Unavailable
30
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
31
PIN
92043-076
Unavailable
32
SPRING
92081-112
Unavailable
33
BOLT,FLANGED,16X16.5
92001-131
Unavailable
34
WASHER,LOCK
92024-047
Unavailable
35
BOLT,CHG DRUM POSITN
92001-1052
Unavailable
36
CIRCLIP-TYPE-C,12MM
480J1200
Unavailable
37
ROD-SHIFT
49047-5003
Unavailable
38
FORK-SHIFT,LOW,2ND&3RD
13140-1008
Unavailable
39
FORK-SHIFT,LOW,2ND&3RD
13140-1008
Unavailable
40
NUT,20MM
92016-043
Unavailable
40
NUT,20MM
92015-1254
Unavailable
41
WASHER,LOCK,20MM
92024-044
Unavailable
41-1
WASHER
92200-1065
Unavailable
42
ENGINE SPROCKET,16T
13144-063
Unavailable
42
SPROCKET-OUTPUT,17T(#530)
13144-1009
Unavailable
43
COLLAR,ENG SPROCKET
92027-288
Unavailable
44
RING-O
92055-035
Unavailable
45
SEAL-OIL,SC325210
92050-024
Unavailable
46
SHAFT,OUTPUT
13128-5005
Unavailable
46
SHAFT,OUTPUT
13128-1012
Unavailable
47
GEAR,OUTPUT 2ND,31T
13129-1047
Unavailable
48
WASHER,TOOTHED,30.5X38X1
92024-069
Unavailable
49
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
50
TOP GEAR,OUTPUT SHAFT
13129-1033
Unavailable
51
GEAR,OUTPUT 3RD,28T
13129-1048
Unavailable
52
GEAR,OUTPUT 4TH,26T
13129-1049
Unavailable
53
GEAR,OUTPUT LOW,35T
13129-1046
Unavailable
54
BUSHING,26X34X16.6
92028-180
Unavailable
55
BALL-STEEL,5/32
600A0500
Unavailable
