Description

Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

WASHER,6.5X20X1.6

92022-125

$1.40

3

DAMPER RUBBER

92075-112

$4.31

4

COLLAR 6.8X10X10.5

92027-120

$5.00

5

GROMMET

92071-059

Unavailable

6

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

7

BOLT 6X22

112B0622

$3.48

8

WASHER,6.5X20X1.6

92022-125

$1.40

9

COLLAR,6.8X10X14.5

92027-156

$5.00

10

DAMPER RUBBER

92075-1092

Unavailable

11

DAMPER RUBBER,TAIL

92075-1103

$12.76

12

BRACKET,TAIL LAMP

23036-1011

$99.97

13

BODY-COMP-TAIL LAMP

23027-041

$128.08

14

BULB,12V 27/8W

92069-059

$8.12

15

GASKET,TAIL LAMP LENS

23028-021

$12.37

16

LENS,TAIL LAMP

23026-034

$77.14

17

SCREW-PAN-CROS

220R0460

Unavailable

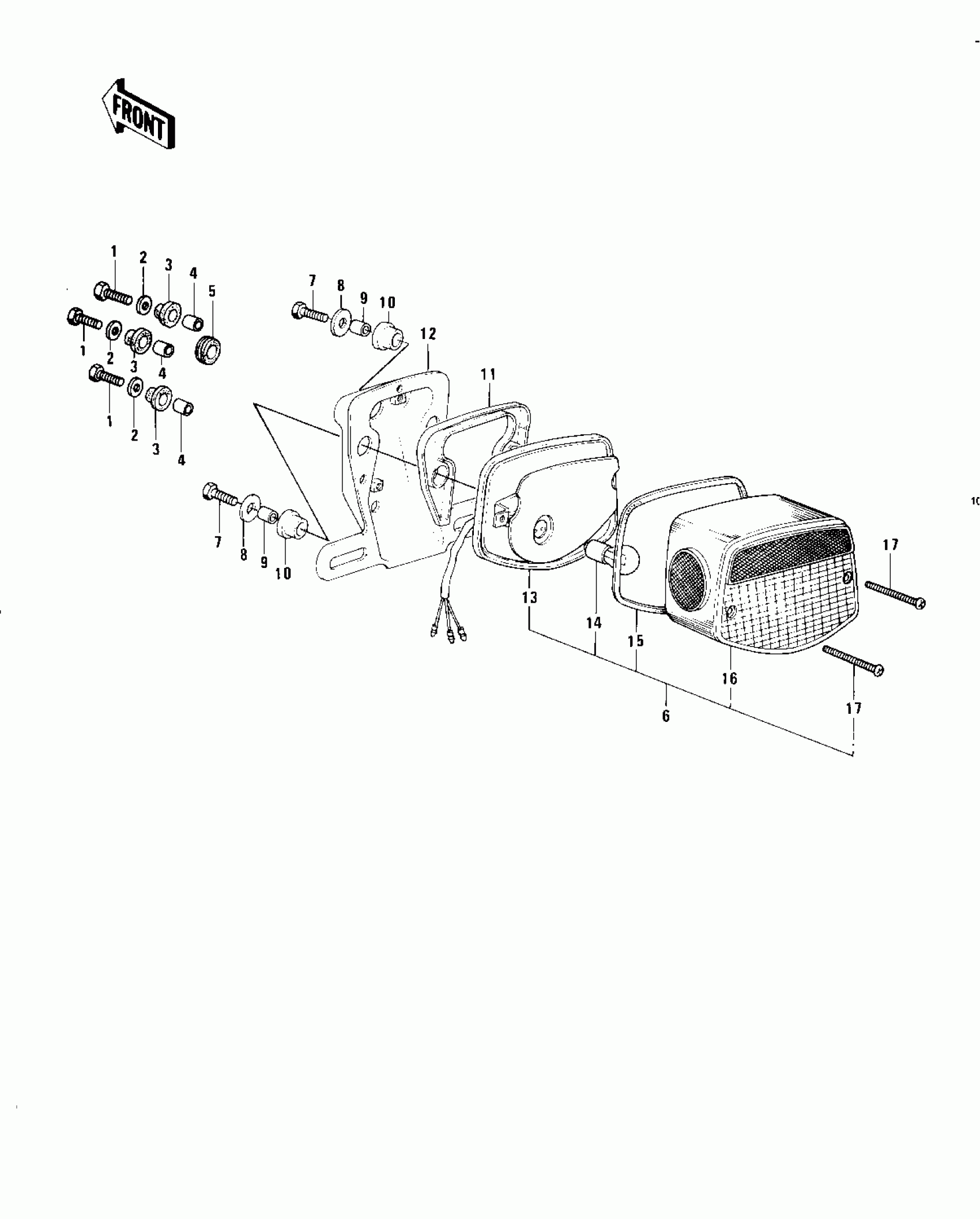

Kawasaki KZ750-B4 TAILLIGHT (KZ750-B4) Diagram

BOLT-UPSET,6X20

WASHER,6.5X20X1.6

DAMPER RUBBER

COLLAR 6.8X10X10.5

GROMMET

LAMP-TAIL,"220-40781"MARK

BOLT 6X22

WASHER,6.5X20X1.6

COLLAR,6.8X10X14.5

DAMPER RUBBER

DAMPER RUBBER,TAIL

BRACKET,TAIL LAMP

BODY-COMP-TAIL LAMP

BULB,12V 27/8W

GASKET,TAIL LAMP LENS

LENS,TAIL LAMP

SCREW-PAN-CROS
