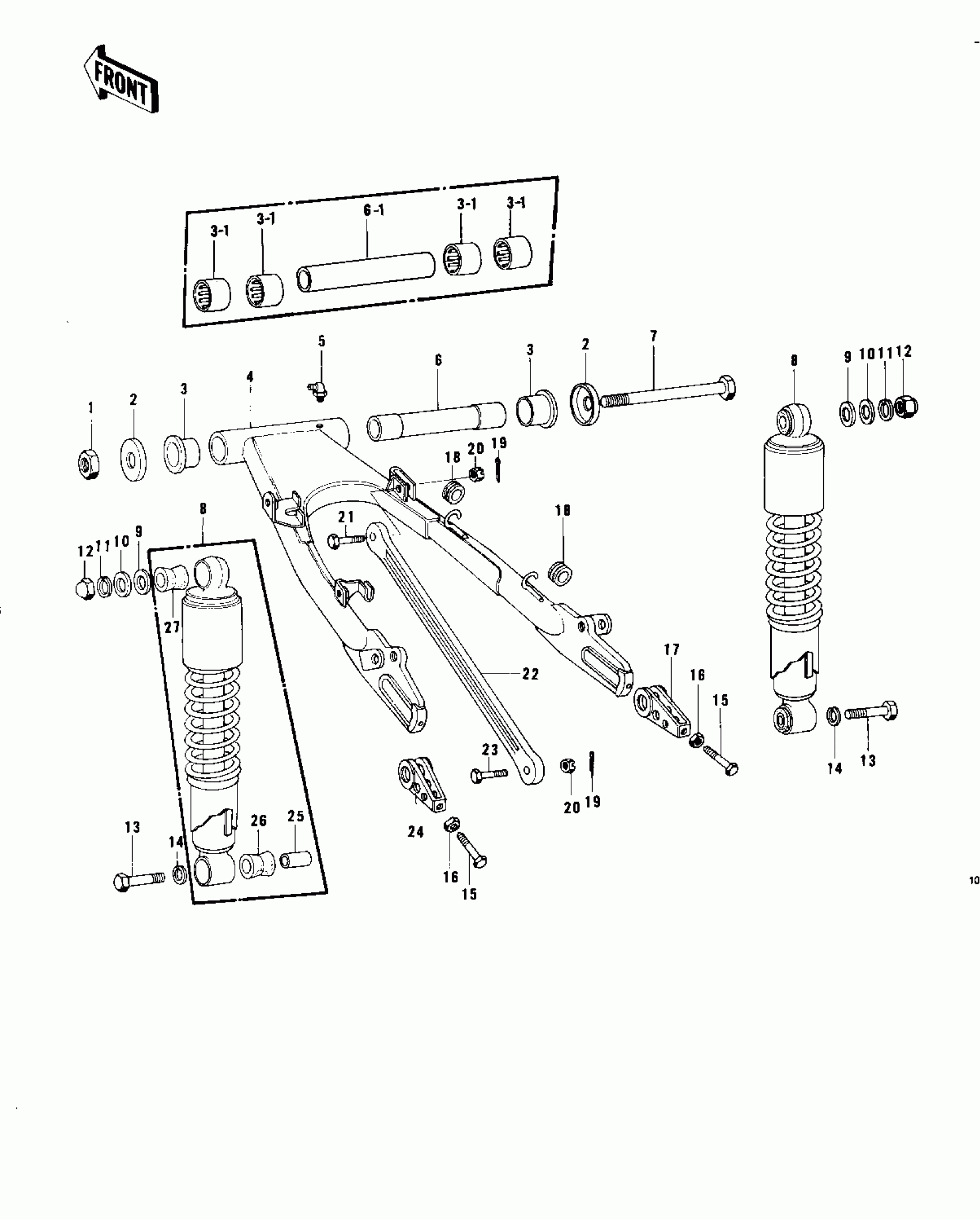

Kawasaki KZ750-B4 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-008
Unavailable
2
CAP,SWING ARM
33035-009
Unavailable
3
BUSHING-SWING ARM
33033-009
Unavailable
3-1
BEARING-NEEDLE,HK2216
92046-1115
$20.02
4
ARM,SWING
33001-1004
$229.71
4
ARM,SWING
33001-1012
$315.35
5
GREASE NIPPLE
92005-002
Unavailable
6
SLEEVE,SWING ARM
33034-022
Unavailable
6-1
SLEEVE,SWING ARM
42036-1014
Unavailable
7
SHAFT,SWING ARM PIVO
33032-047
Unavailable
8
SHOCK ABSBR RR
45014-105
$497.26
9
WASHER,10.5X26X2.3
92022-044
$3.92
9
WASHER,10X22X3.2
92022-176
$4.78
10
WASHER-PLAIN,10MM
411B1000
$0.93
11
WASHER SPRING 10MM
461F1000
$0.67
12
NUT,CAP,10MM
92020-003
$6.52
13
BOLT HEX HEAD 10X35
113N1035
$9.14
14
WASHER SPRING 10MM
461F1000
$0.67
15
BOLT,CHAIN ADJUST
92001-162
$19.74
16
NUT-HEX-FINE,10MM
315B1000
$0.58
17
ADJUSTER,R.H
33040-069
$30.34
18
GROMMET,HOSE CLAMP
43064-007
$5.52
19
PIN-COTTER,3.0X25
550D3025
$0.58
20
NUT,12MM
42045-021
Unavailable
21
BOLT,FR TORQUE LINK
92003-196
$3.89
22
TORQUE LINK
43007-047
$28.85
23
BOLT,RR TORQUE LINK
92003-197
Unavailable
24
ADJUSTER-CHAIN
33040-066
$30.91
25
DAMPER,SHOCKABSORBER
45017-012
$14.90
26
COLLAR,SHOCKABSORBER
45016-008
$9.91
27
DAMPER,SHOCKABSORBER
45017-015
Unavailable
