1979 Kawasaki KZ750-B4 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

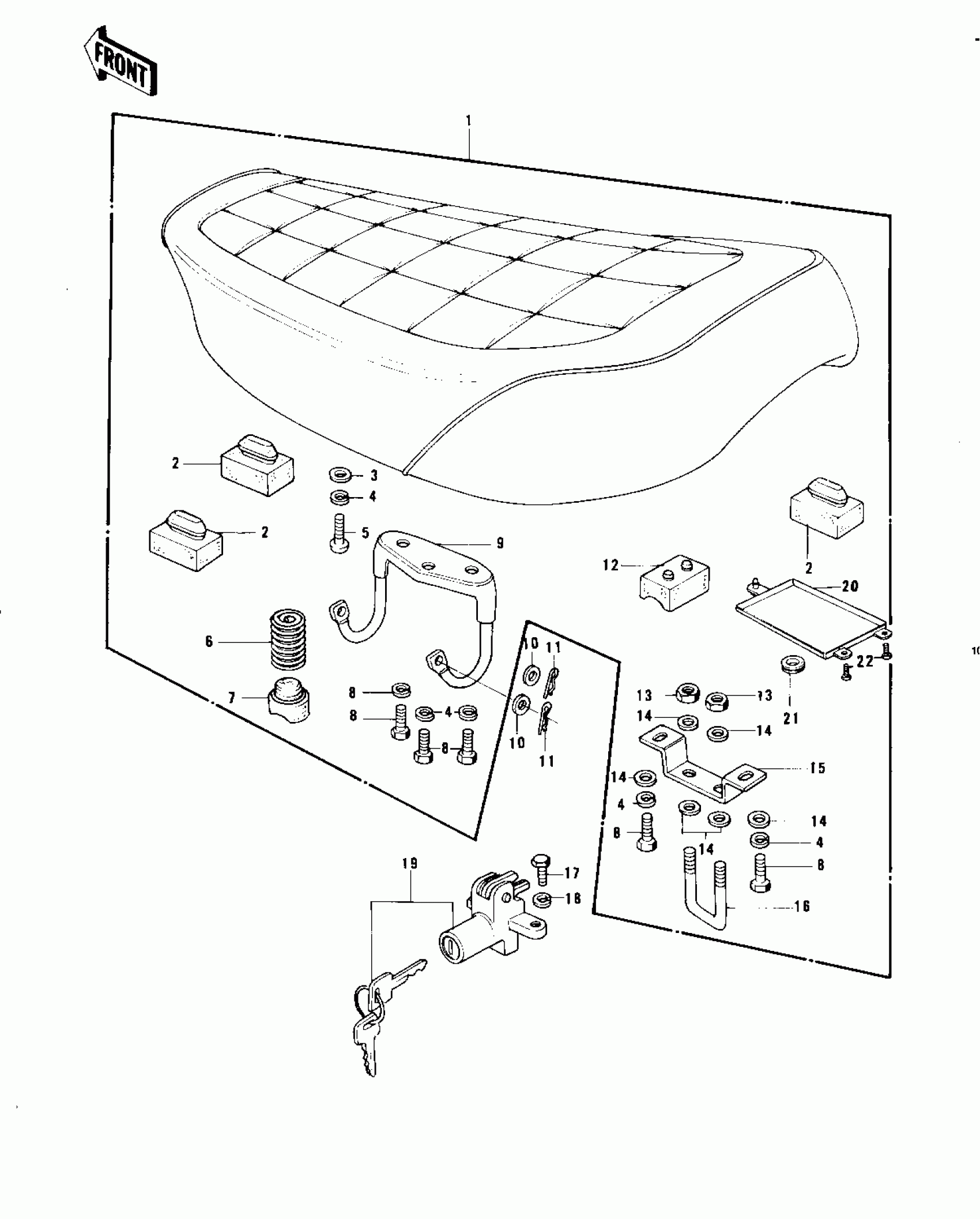

1979 Kawasaki KZ750-B4 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY,DUAL

53001-114

1
Out of stock

2

DAMPER

92075-099

1
Out of stock

3

WASHER PLAIN 6MM

411B0600

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

6

SPRING

92081-147

1
Out of stock

7

DAMPER RUBBER

92075-276

1
Out of stock

8

BOLT-UPSET 6X14

112B0614

1
Out of stock

9

HINGE

53009-029

1
Out of stock

10

WASHER PLAIN 8MM

411B0800

1
Out of stock

11

PIN-SNAP,8MM

554A0800

1
Out of stock

12

DAMPER RUBBER,SEAT

92075-139

1
Out of stock

13

NUT 6MM

311B0600

1
Out of stock

14

WASHER,6.5X20X1.6

92022-125

1
Out of stock

15

BRACKET,SEAT CATCH

53058-002

1
Out of stock

16

HOOK,SEAT

53056-002

1
Out of stock

17

BOLT-UPSET,6X12

112G0612

1
Out of stock

18

WASHER SPRING 6MM

461F0600

1
Out of stock

19

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

19

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

20

CASE,MANUAL

32099-011

1
Out of stock

21

GROMMET

92071-056

1
Out of stock

22

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
