1979 Kawasaki KZ750-B4 Footrests/stands Diagram

← All diagrams

Find the part on the Footrests/stands diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

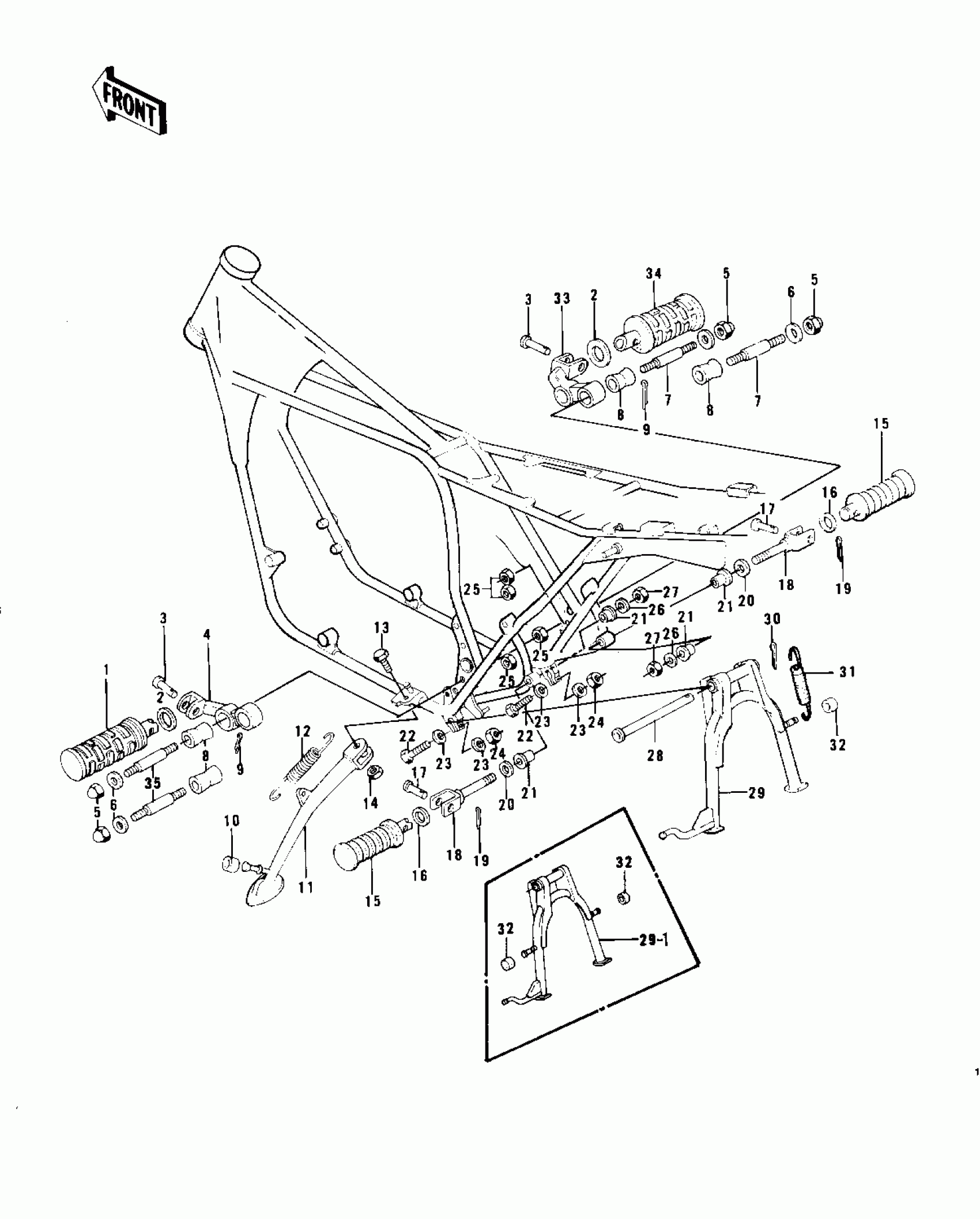

1979 Kawasaki KZ750-B4 Footrests/stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR-FOOTREST,L.H

34028-011

1
Out of stock

2

WASHER,25X36X2.3

92022-250

1
Out of stock

3

PIN,8X31

92043-080

1
Out of stock

4

BRACKET,FOOTREST L.H.

34003-059

1
Out of stock

5

NUT,CAP AND LOCK,8MM

92019-013

1
Out of stock

6

CAP,FOOTRESTBAR

92102-010

1
Out of stock

7

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

8

DAMPER RUBBER,FOOTRE

92075-293

1
Out of stock

9

PIN-COTTER,2.5X15

550D2515

1
Out of stock

10

DAMPER RUBB SIDE STND

92075-031

1
Out of stock

11

STAND-SIDE

34024-059

1
Out of stock

12

SPRING,STAND

34025-005

1
Out of stock

13

BOLT,SIDE STAND

92003-079

1
Out of stock

14

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

15

RUBBER,FOOTREST

92076-027

1
Out of stock

16

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

17

PIN,6X28

92043-1464

1
Out of stock

18

HOLDER-STEP,RR

34029-008

1
Out of stock

18

BRACKET,FOOTREST BAR

34029-014

1
Out of stock

19

PIN-COTTER,2.0X12

550D2012

1
Out of stock

20

WASHER-PLAIN

92022-206

1
Out of stock

21

BUSHING,MUFFLER FITT

92092-010

1
Out of stock

22

BOLT

92001-1578

1
Out of stock

23

WASHER PLAIN 8MM

410B0800

1
Out of stock

24

NUT,LOCK,8MM

92017-013

1
Out of stock

25

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

26

WASHER-PLAIN,10MM

411B1000

1
Out of stock

27

NUT,LOCK,10MM

92019-021

1
Out of stock

28

SHAFT,MAIN STAND

34019-016

1
Out of stock

29

STAND,MAIN

34011-039

1
Out of stock

29-1

STAND-MAIN

34011-042

1
Out of stock

30

PIN,COTTER,3.0X28

550D3028

1
Out of stock

30

PIN-COTTER,3.0X30

550D3030

1
Out of stock

31

SPRING,MAIN STAND

34023-017

1
Out of stock

32

DAMPER RUBBER,MN STND

92075-285

1
Out of stock

32

DAMPER RUBBER,MN STND

92075-285

1
Out of stock

33

BRACKET,FOOTREST R.H.

34003-060

1
Out of stock

34

BAR-FOOTREST,R.H

34028-012

1
Out of stock

35

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

35

STUD

92004-067

1
Out of stock
