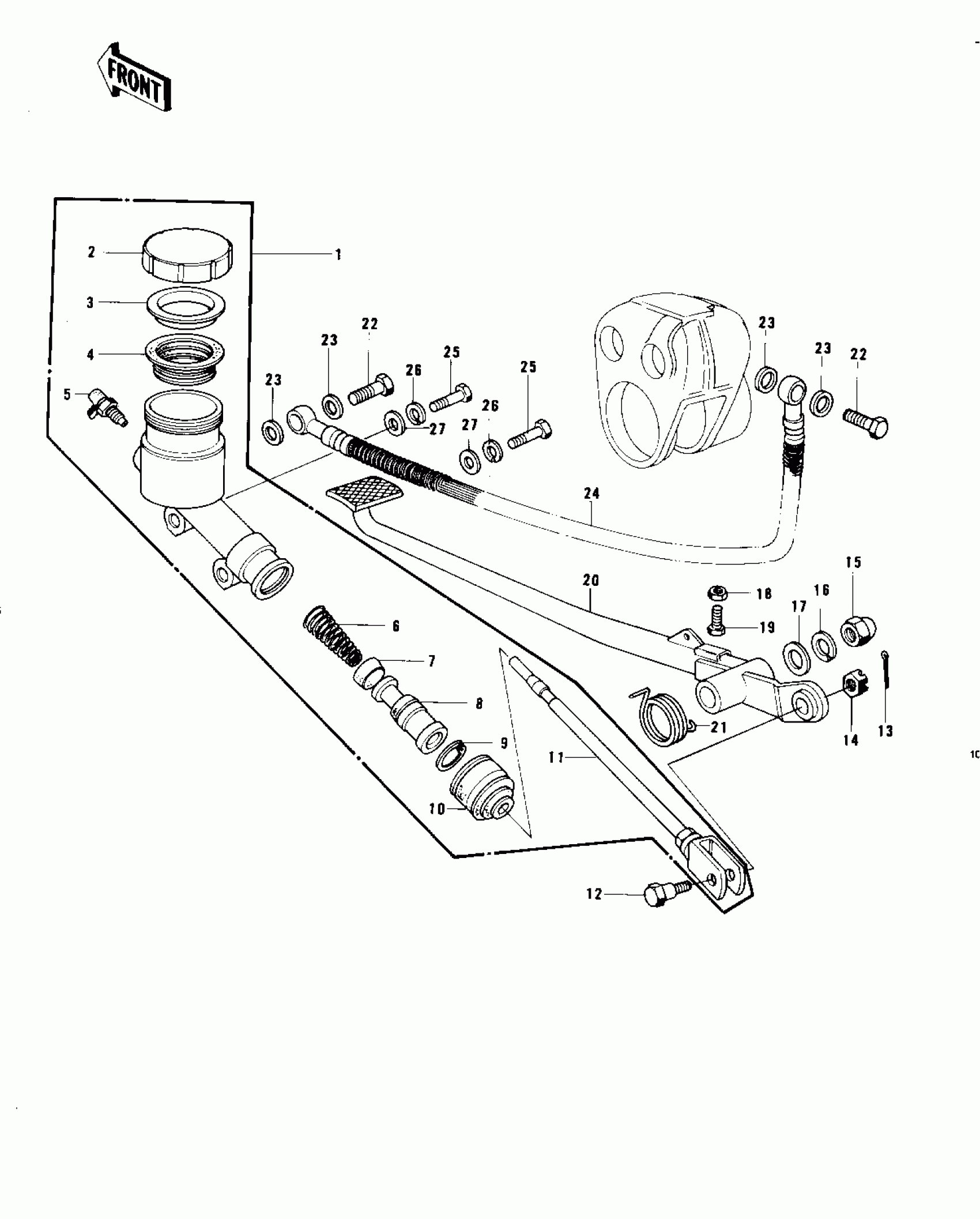

Kawasaki KZ750-B4 REAR MASTER CYLINDER/BRAKE PEDAL Diagram

#

Description
Price

1

CYL ASSY,MASTER,REAR

43015-1011

Unavailable

2

CAP,OIL CUP

43026-003

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-003

Unavailable

5

BLEEDER SET

43085-001

$24.57

6

SPRING ASSY, RETURN

43018-002

$39.46

7

CUP, PRIMARY

43019-002

$25.99

8

PISTON ASSY

43072-004

$96.81

9

CIRCLIP-TYPE-C,20MM

481J2000

$7.71

10

BOOTS

43024-002

Unavailable

11

ROD,BRAKE

43010-021

Unavailable

12

BOLT

92003-198

Unavailable

13

PIN-COTTER,2.0X20

550D2020

$0.96

14

NUT CASTLE

321B0800

$4.87

15

NUT,CAP AND LOCK,8MM

92019-013

$14.88

16

WASHER SPRING 8MM

461F0800

$0.40

17

WASHER,8.5X20X1.6

92022-1561

$4.31

18

NUT 6MM

311B0600

$0.93

19

BOLT-UPSET

112G0625

$3.62

20

PEDAL,BRAKE

43001-069

Unavailable

21

SPRING,BK PEDAL RETN

43005-036

$8.05

22

BOLT,OIL,L=23

92002-1888

$5.48

23

WASHER,10.5X15X1.5

43067-001

$2.15

24

HOSE,BRAKE

43059-027

$93.21

25

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

26

WASHER SPRING 8MM

461F0800

$0.40

27

WASHER PLAIN 8MM

410B0800

$0.93
