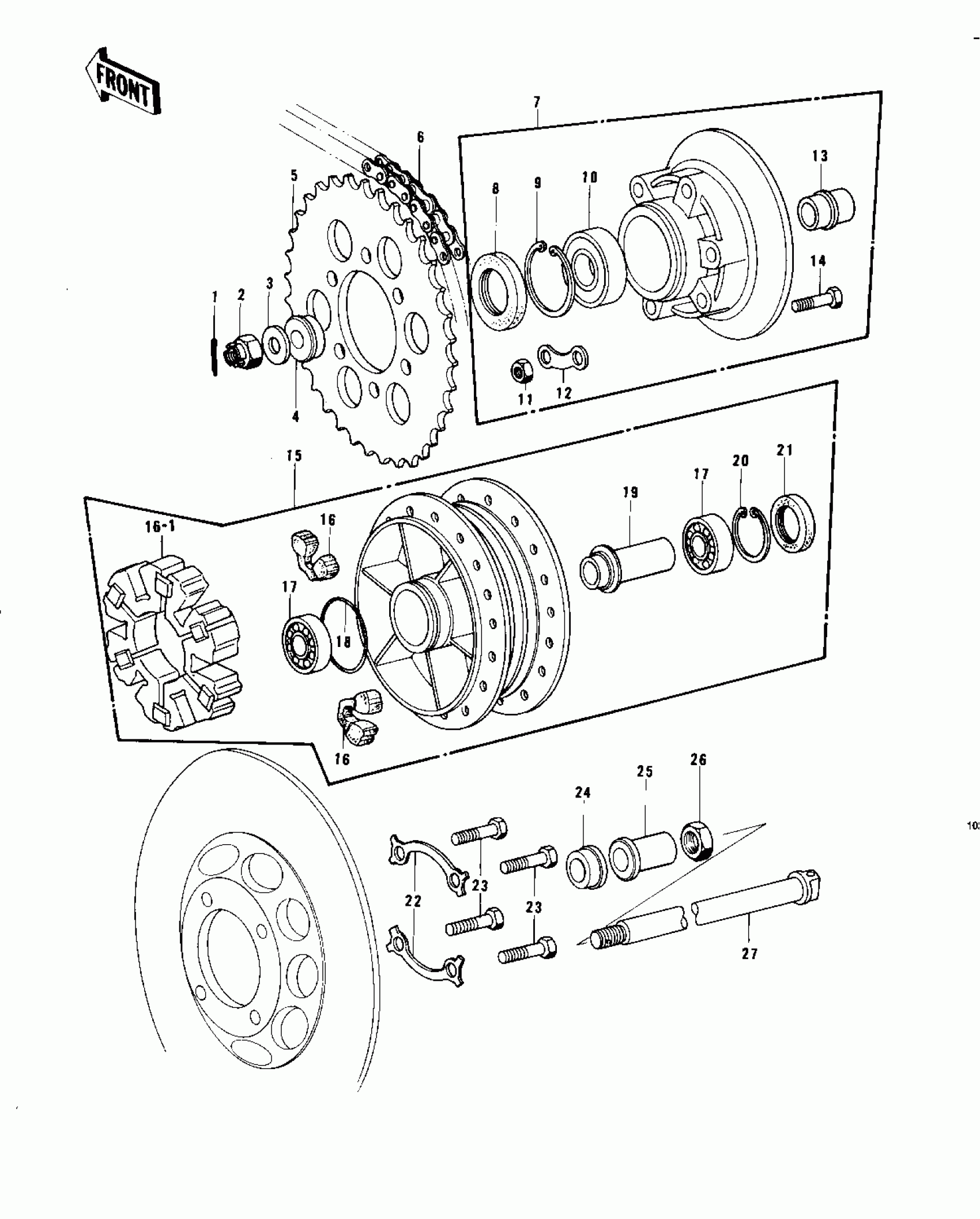

Kawasaki KZ750-B4 REAR HUB/CHAIN Diagram

#

Description
Price

1

PIN COTTER 4.0X30

550D4030

$2.33

2

NUT,CASTLE,18MM

42045-018

$9.23

3

WASHER,20.3X34X4.5

92022-248

$11.60

4

COLLAR,REAR AXLE

42032-060

$46.27

5

SPROCKET,REAR,38T

42041-1054

$117.22

6

CHAIN,530X106 SH-D

92057-1044

$425.69

7

COUPLING ASSY,RR HUB

42008-028

$186.16

8

SEAL-OIL,AJN40627

92050-027

$20.96

9

RING-SNAP,62MM

92033-1044

$11.29

10

BALL BEARING,#6206

601B6206

$22.50

11

NUT,10MM

42045-005

$7.98

12

WASHER LOCK

92088-007

$13.51

13

SLEEVE

42036-024

$80.17

14

BOLT,10X41

92001-161

$5.38

15

DRUM ASSY,REAR BRAKE

42005-048

$534.97

16

SHOCK DAMPER

42014-025

$10.66

16-1

SHOCK DAMPER

42014-032

Unavailable

17

BEARING BALL #6304

601B6304

$36.85

18

O RING,60MM

671B2560

$6.91

19

COLLAR,BRG

42010-030

$21.63

20

RING-SNAP,52MM

92033-1043

$8.05

21

SEAL-OIL,TWC35527

92052-006

Unavailable

22

WASHER,LOCK

92088-024

Unavailable

22

WASHER,LOCK

92088-023

$11.60

23

BOLT

92001-160

Unavailable

24

COLLAR,REAR AXLE

42032-061

Unavailable

25

SLEEVE

42036-025

Unavailable

26

NUT

92016-057

$9.33

27

AXLE,REAR

42031-052

$87.82
