1979 Kawasaki KZ750-B4 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

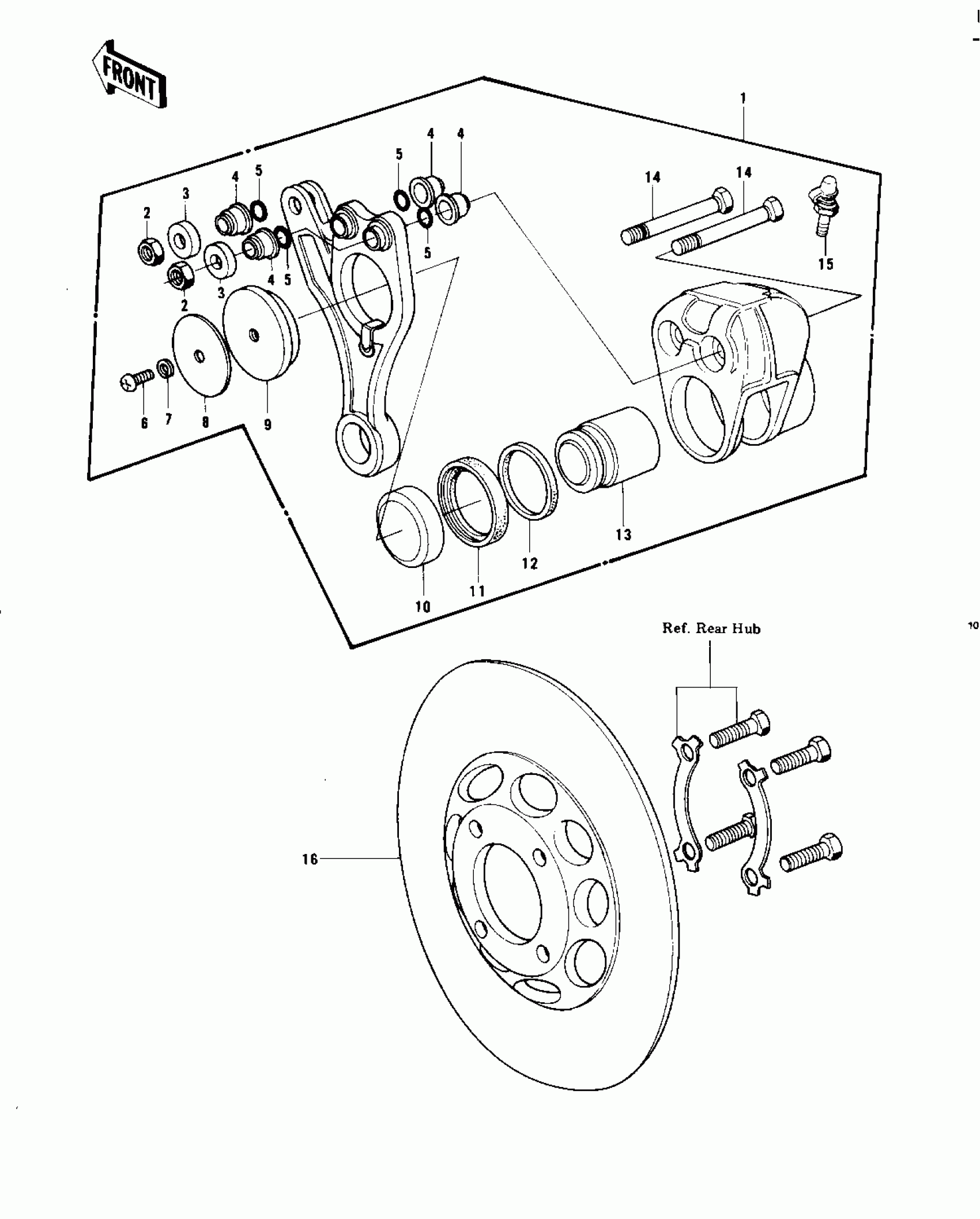

1979 Kawasaki KZ750-B4 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,REAR

43041-035

1
Out of stock

1

CALIPER ASSY,REAR

43041-035

1
Out of stock

2

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

3

PLUG

43088-002

1
Out of stock

4

DUST SHILD,SHAFT

43052-005

1
Out of stock

5

"0" RING

43053-006

1
Out of stock

6

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

SPACER

43040-004

1
Out of stock

9

PAD B

43051-009

1
Out of stock

9

PAD SET,(REAR)

43050-5002

1
Out of stock

10

PAD A

43050-008

1
Out of stock

10

PAD SET,(REAR)

43050-5002

1
Out of stock

11

DUST SEALD,RUBBER

43054-003

1
Out of stock

12

PACKING,PISTON SEAL

43049-002

1
Out of stock

13

PISTON,CALIPER

43048-006

1
Out of stock

13

PISTON,FRONT CALIPER

43048-009

1
Out of stock

14

BOLT

43045-006

1
Out of stock

15

BLEEDER SET

43085-001

1
Out of stock

16

PLATE,REAR DISC

41080-008

1
Out of stock
