1979 Kawasaki KZ750-B4 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

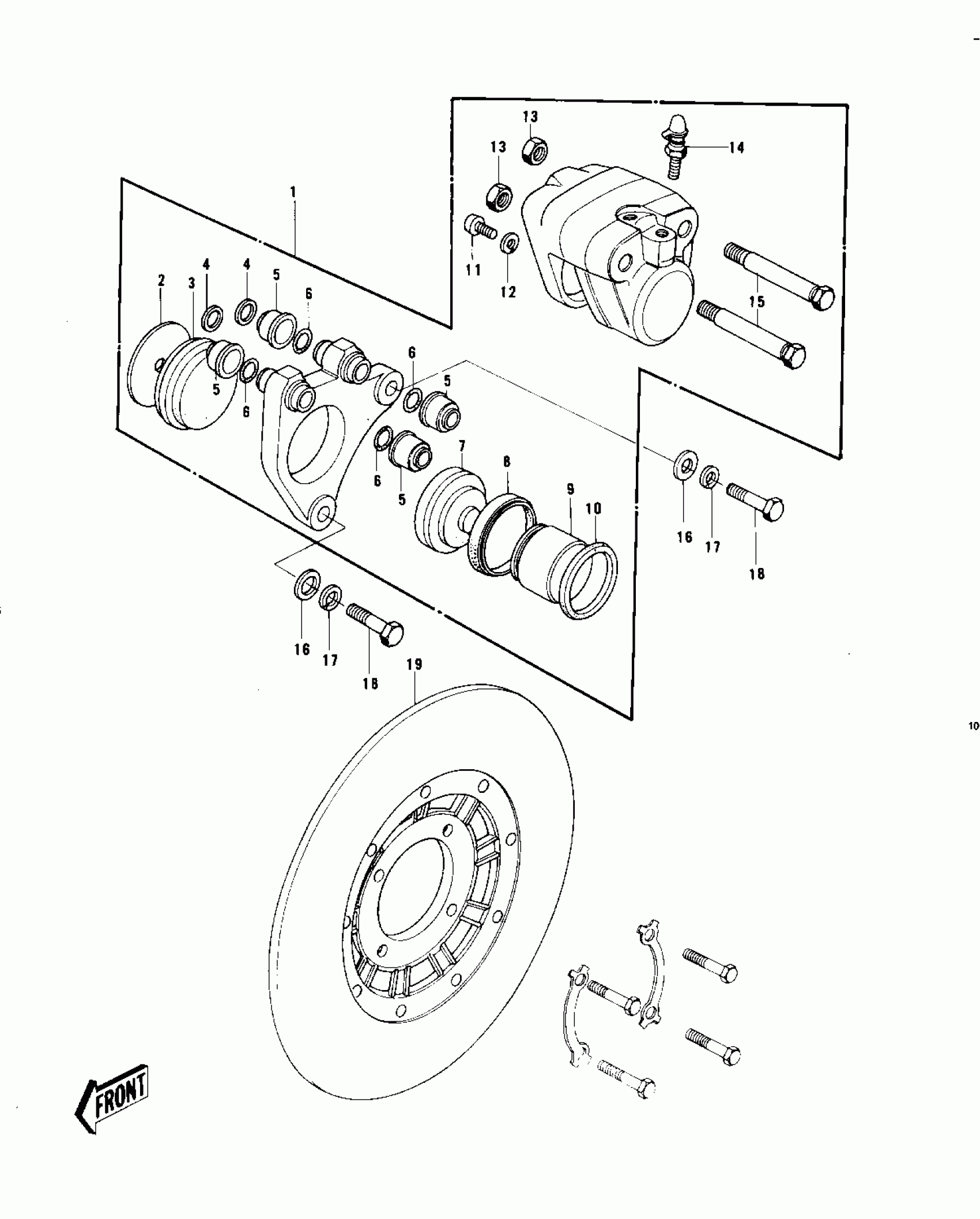

1979 Kawasaki KZ750-B4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FRONT

43041-030

1

$293.99

In stock

1

CALIPER ASSY,FRONT

43041-030

1

$293.99

In stock

1

CALIPER ASSY,FRONT

43041-1006

1

$522.26

In stock

2

SPACER

43040-004

1
Out of stock

3

PAD B

43051-007

1

$34.46

In stock

3

PAD SET,(FRONT)

43050-5001

1

$232.67

In stock

4

PLUG

43088-002

1
Out of stock

5

DUST SHILD,SHAFT

43052-005

1
Out of stock

6

"0" RING

43053-006

1
Out of stock

7

PAD A

43050-006

1

$23.66

In stock

7

PAD SET,(FRONT)

43050-5001

1

$232.67

In stock

8

DUST SEALD,RUBBER

43054-003

1
Out of stock

9

PISTON,CALIPER

43048-006

1
Out of stock

9

PISTON,FRONT CALIPER

43048-009

1
Out of stock

10

1

$11.01

In stock

11

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

12

WASHER SPRING 6MM

461F0600

1
Out of stock

13

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

14

BLEEDER SET

43085-001

1

$22.74

In stock

15

BOLT

43045-006

1

$42.74

In stock

16

WASHER PLAIN 10MM

410B1000

1
Out of stock

17

WASHER SPRING 10MM

461F1000

1
Out of stock

18

BOLT

92007-032

1
Out of stock

19

DISC PLATE,FRONT

41080-005

1

$525.38

In stock
