Description

Price

1

REAR VIEW MIRROR,L.H

56003-019

Unavailable

2

REAR VIEW MIRROR,R.H

56002-029

Unavailable

3

LEVER ASSY,CLUTCH

46076-049

$102.73

3

LEVER ASSY,CLUTCH

46076-054

$102.73

4

BOLT,HEX HEAD

92007-047

$13.77

5

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

6

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

6

NUT,CABLE ADUST NUT

46056-007

Unavailable

7

HOLDER,CLUTCH LEVER

46094-017

Unavailable

7

HOLDER,CLUTCH LEVER

46094-019

$70.86

8

WASHER PLAIN 6MM

411B0600

$2.84

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

9

BOLT 6X22

112B0622

$3.48

9

BOLT-UPSET

112G0625

$3.62

10

NUT,LOCK 6MM

92017-014

$7.51

11

LEVER-GRIP,CLUTCH

46092-023

$35.96

12

RUBBER,L.H GRIP

46075-028

$39.98

13

HANDLEBAR

46003-036

$154.75

14

BOLT 8X38

92001-1405

$16.50

14

BOLT 8X38

92001-1405

$16.50

15

WASHER SPRING 8MM

461F0800

$0.40

16

HOLDER-HANDLE,UPP

46012-008

$37.74

17

GRIP ASSY,THROTTLE

46019-038

$118.44

18

HOLDER-HANDLE,LWR

46012-010

$30.76

19

DAMPER RUBBER,HANDLE

92075-275

Unavailable

20

WASHER-HANDLEBAR FIT

92022-196

Unavailable

21

WASHER SPRING 10MM

461F1000

$0.67

22

NUT-HEX-FINE,10MM

314B1000

$0.67

22

NUT-HEX-FINE,10MM

315B1000

$0.58

23

PIN-SNAP,8MM

554A0800

$1.26

24

LOCK,HELMET

27039-001

$44.87

26

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

26

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

27

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

28

KNOB,LIGHTING SW L.H

46044-013

$12.37

29

SCREW PAN HEAD 3X5

220B0305A

$0.59

30

KNOB,LIGHTING SW L.H

46043-005

Unavailable

31

BUTTON, HORN PUSH

46028-006

Unavailable

32

SCREW-PAN-CROS

220B0535

$3.70

32

SCREW-PAN-CROS

220B0540

$3.41

33

SCREW PAN HEAD 5X30

220B0530

$3.41

34

HOUSING ASSY,R.H CONT

46091-1033

Unavailable

34

HOUSING ASSY,R.H CONT

46091-1033

Unavailable

34

HOUSING ASSY,R.H

46091-1039

Unavailable

34

HOUSING ASSY,R.H

46091-1039

Unavailable

34

HOUSING ASSY,CONT,R.H

46091-1078

$139.20

35

KNOB,LIGHTING SW R.H

46043-004

Unavailable

36

SWITCH,PUSH BUTTON

27010-1009

$9.20

37

WASHER,10.5X20X1

92022-239

$3.92

38

SWITCH,CLUTCH

27043-002

$39.87

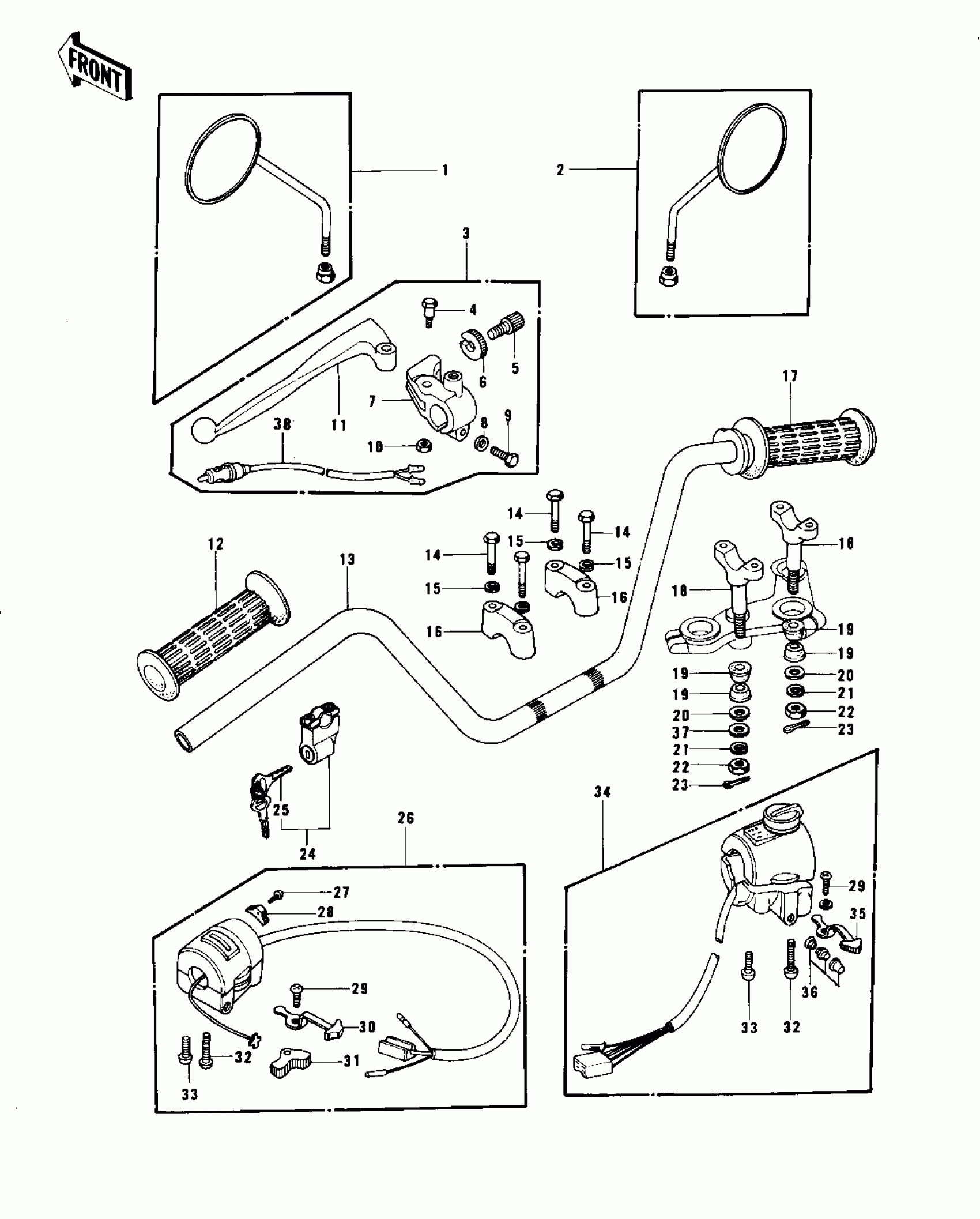

Kawasaki KZ750-B4 HANDLEBAR Diagram

REAR VIEW MIRROR,L.H

REAR VIEW MIRROR,R.H

LEVER ASSY,CLUTCH

LEVER ASSY,CLUTCH

BOLT,HEX HEAD

SCREW,CABLE ADJUST,8MM

NUT,CABLE ADJUST LOCK,8MM

NUT,CABLE ADUST NUT

HOLDER,CLUTCH LEVER

HOLDER,CLUTCH LEVER

WASHER PLAIN 6MM

WASHER-PLAIN-SMALL,6MM

BOLT 6X22

BOLT-UPSET

NUT,LOCK 6MM

LEVER-GRIP,CLUTCH

RUBBER,L.H GRIP

HANDLEBAR

BOLT 8X38

BOLT 8X38

WASHER SPRING 8MM

HOLDER-HANDLE,UPP

GRIP ASSY,THROTTLE

HOLDER-HANDLE,LWR

DAMPER RUBBER,HANDLE

WASHER-HANDLEBAR FIT

WASHER SPRING 10MM

NUT-HEX-FINE,10MM

NUT-HEX-FINE,10MM

PIN-SNAP,8MM

LOCK,HELMET

HOUSING ASSY,CONT,L.H

HOUSING ASSY,CONT,L.H

SCREW CNTSNK HD 3X8

KNOB,LIGHTING SW L.H

SCREW PAN HEAD 3X5

KNOB,LIGHTING SW L.H

BUTTON, HORN PUSH

SCREW-PAN-CROS

SCREW-PAN-CROS

SCREW PAN HEAD 5X30

HOUSING ASSY,R.H CONT

HOUSING ASSY,R.H CONT

HOUSING ASSY,R.H

HOUSING ASSY,R.H

HOUSING ASSY,CONT,R.H

KNOB,LIGHTING SW R.H

SWITCH,PUSH BUTTON

WASHER,10.5X20X1

SWITCH,CLUTCH
