1979 Kawasaki KZ750-B4 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

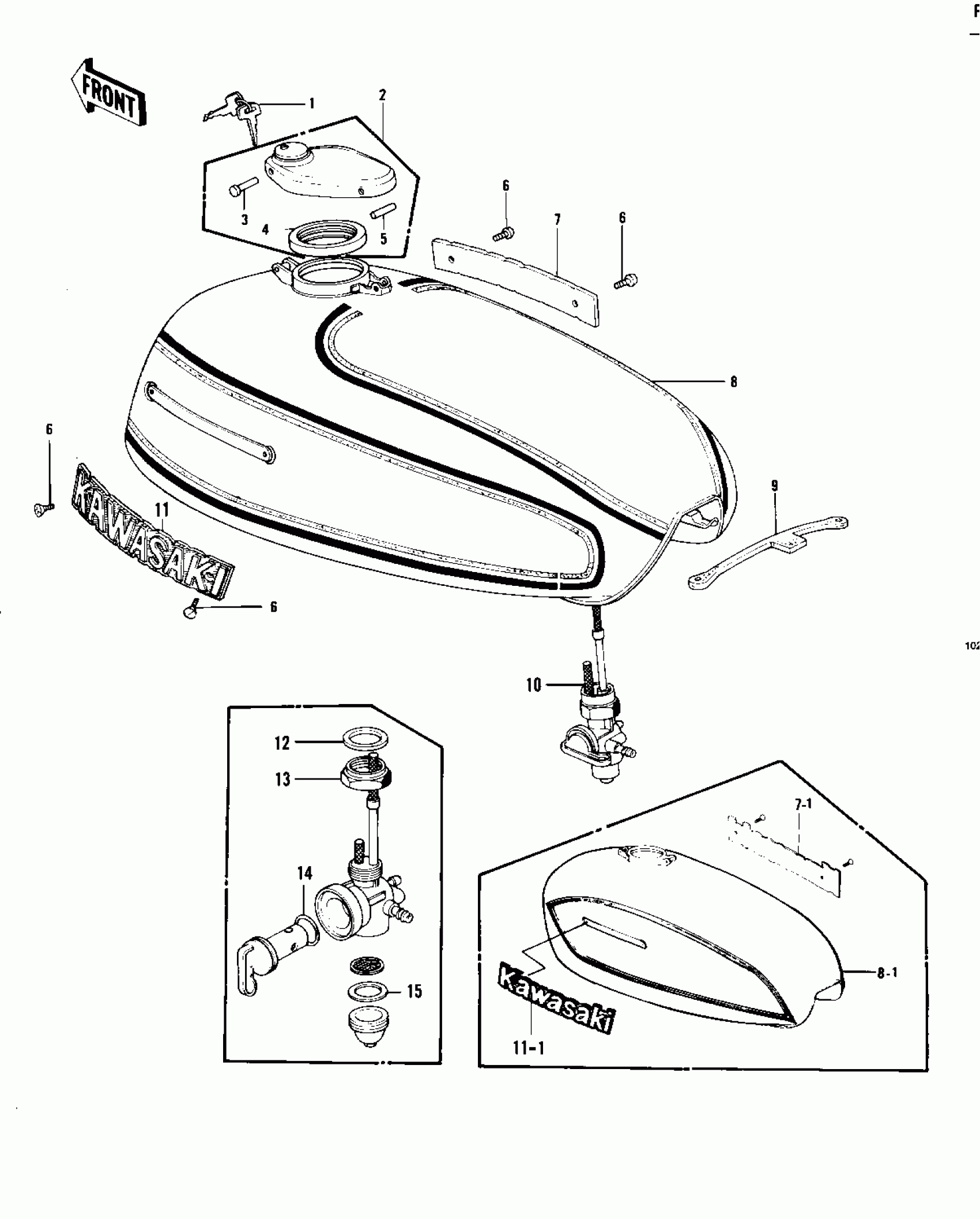

1979 Kawasaki KZ750-B4 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CAP,FUEL TANK

51048-012

1
Out of stock

3

PIN,HOOK

92043-126

1
Out of stock

4

GASKET-FUEL TANK CAP

51059-008

1
Out of stock

5

PIN,CAP HINGE

92043-127

1
Out of stock

6

SCREW-CSK-CROS

221C0306

1
Out of stock

7

EMBLEM,FUEL TANK,R.H

56014-062

1
Out of stock

7-1

EMBLEM,FUEL TANK

56014-1037

1
Out of stock

8

TANK-FUEL,D.RED

51001-106-4F

1
Out of stock

8

TANK-FUEL,D.N.BLUE

51001-106-7B

1
Out of stock

8

TANK-FUEL,D.BROWN

51001-106-7C

1
Out of stock

8-1

TANK-FUEL,L.D.GREEN

51001-106-7X

1
Out of stock

8-1

TANK-FUEL,L.D.RED

51001-106-7Y

1
Out of stock

8-1

TANK-FUEL,L.BROWN

51001-106-A9

1
Out of stock

8-1

TANK-FUEL,M.BLUE

51001-106-8E

1
Out of stock

9

BAND,FUEL TANK

92072-042

1
Out of stock

10

COCK ASSY,FUEL

51023-050

1
Out of stock

11

EMBLEM,FUEL TANK

56014-1006

1
Out of stock

11-1

EMBLEM,FUEL TANK

56014-1037

1
Out of stock

12

GASKET-FUEL COCK JNT.

92065-081

1
Out of stock

13

FUEL COCK JOINT NUT

51035-009

1
Out of stock

14

O RING,10MM

670B2010

1
Out of stock

15

GASKET FUEL COCK CUP

51037-010

1
Out of stock
