1979 Kawasaki KZ750-B4 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

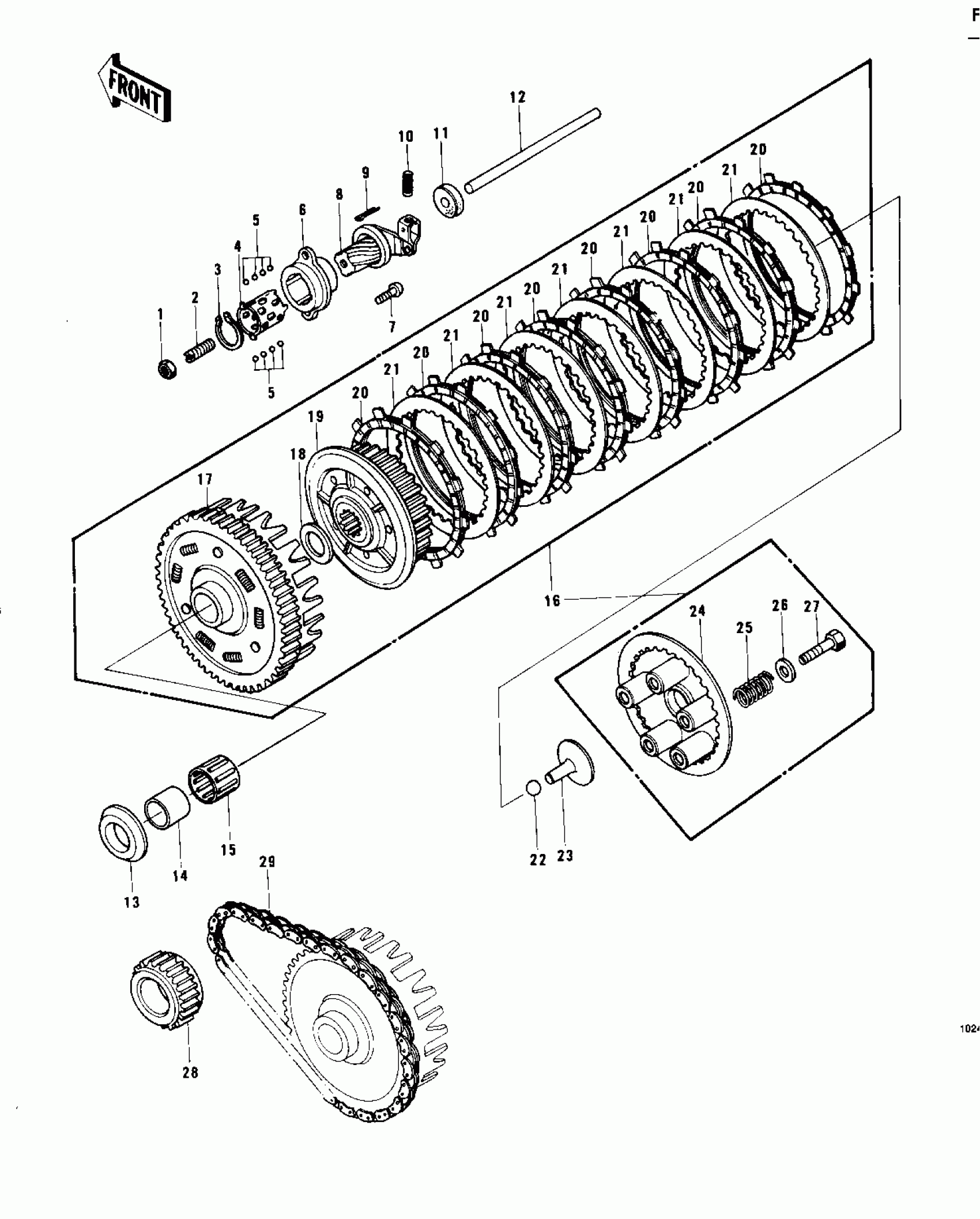

1979 Kawasaki KZ750-B4 Clutch Diagram

#

Description
Price
Status
Order Qty

1

$0.63

In stock

2

SCREW,SLOTTED,8X25

92014-014

Out of stock

3

$1.85

In stock

4

RETAINER

13197-004

Out of stock

5

BALL,STEEL,1/8"

600A0400

$1.66

In stock

6

OUTER,CLUTCH RELEASE

13118-011

Out of stock

7

SCREW-PAN-CROS,6X16

220B0616

Out of stock

8

INNER,CLUTCH RELEASE

13102-019

Out of stock

9

$2.08

In stock

10

UNAVAILABLE IN PRICE BOOK

92081-1069

Out of stock

11

OIL SEAL,TC7187

92050-048

Out of stock

12

ROD,CLUTCH PUSH

13116-035

Out of stock

12

ROD,CLUTCH PUSH

13116-035

Out of stock

13

SPACER

92026-123

Out of stock

13

SPACER

92026-123

Out of stock

13

SPACER

92026-123

Out of stock

13

SPACER

92026-123

Out of stock

13

SPACER

92026-123

Out of stock

14

BUSHING,25X32X23.6

92028-178

$23.53

In stock

15

$19.92

In stock

16

CLUTCH-ASSY

13081-1006

Out of stock

16

CLUTCH-ASSY

13081-1006

Out of stock

17

HOUSING,CLUTCH

13095-050

Out of stock

18

SPACER,25.5X47X2.5

92026-022

Out of stock

19

HUB-CLUTCH

13087-042

Out of stock

20

PLATE-FRICTION

13088-040

$9.95

In stock

21

PLATE-CLUTCH

13089-027

$10.14

In stock

22

BALL-STEEL,3/8"

600A1200

$1.32

In stock

23

PUSHER,CLUTCH SPRG P

13116-022

Out of stock

24

PLATE,CLUTCH SPRING

13187-008

Out of stock

25

SPRING,CLUTCH

92081-1033

$5.88

In stock

25

SPRING,CLUTCH

92081-1033

$5.88

In stock

26

$5.27

In stock

27

BOLT-UPSET

112G0618

Out of stock

27

BOLT,FLANGED,6X18

92001-1066

$4.93

In stock

28

GEAR,PRIMARY

13121-034

Out of stock

29

CHAIN,PRIMARY

13122-008

Out of stock
