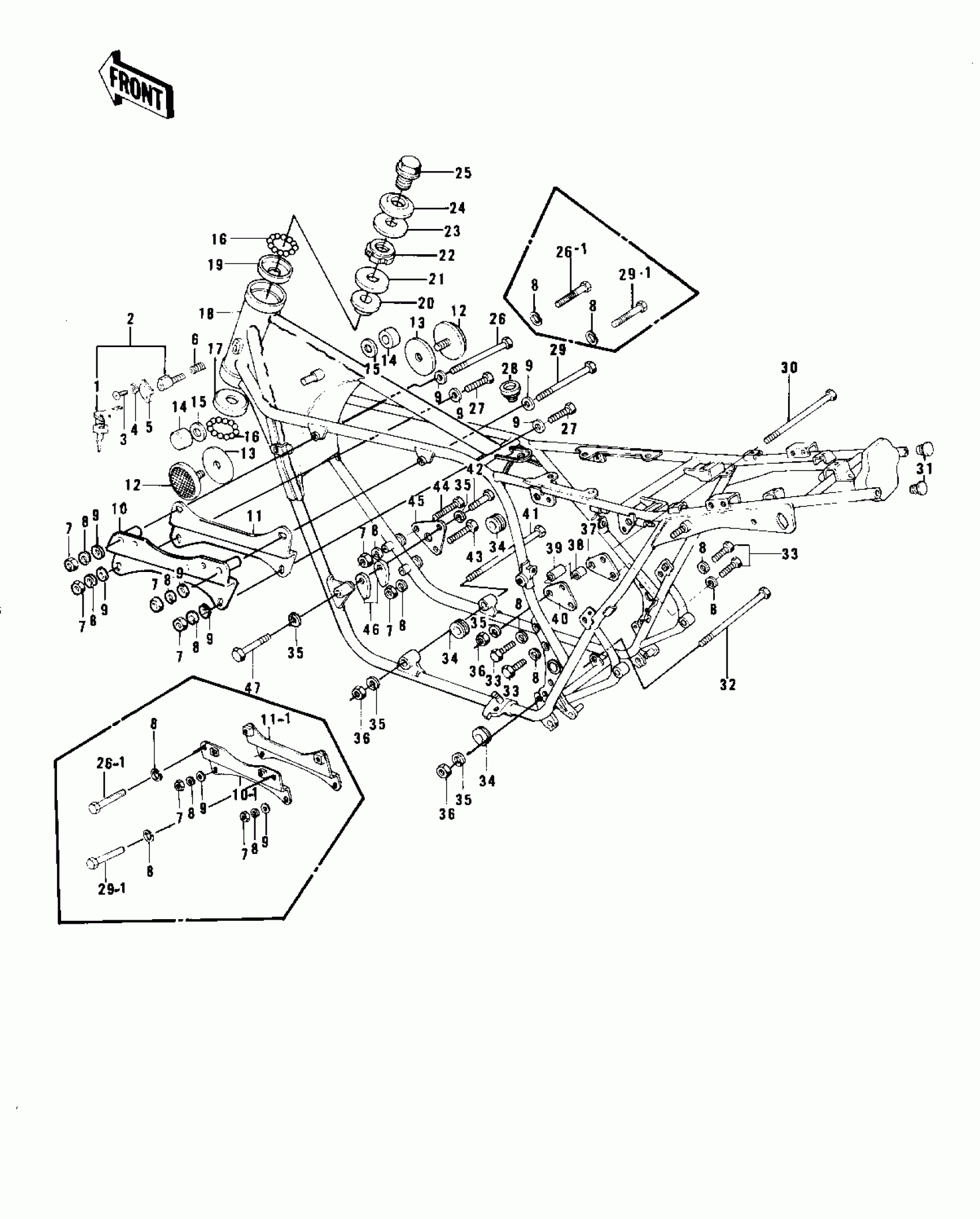

Kawasaki KZ750-B4 FRAME/FRAME FITTINGS Diagram

#

Description
Price

2

LOCK-ASSY,STEERING

27016-5009

Unavailable

2

LOCK-ASSY,STEERING

27016-5009

Unavailable

3

SCREW,3.51MM

92008-007

$4.11

4

WASHER,WAVE

92097-003

$4.50

5

CAP,STEERING LOCK

11012-1134

$6.87

6

SPRING,STEERING LOCK

27032-001

$5.25

7

NUT,8MM

311B0800

$0.67

7

NUT,8MM

311B0800

$0.67

8

WASHER SPRING 8MM

461F0800

$0.40

8

WASHER SPRING 8MM

461F0800

$0.40

9

WASHER PLAIN 8MM

411B0800

$0.93

9

WASHER PLAIN 8MM

411B0800

$0.93

10

PLATE,ENGINE HEAD,L.H

32030-061

$12.39

10-1

PLATE,ENG FITTING,R.

32030-071

Unavailable

11

PLATE,ENGINE HEAD,R.H

32030-054

$7.03

11-1

PLATE,ENG HEAD FITT

32030-070

$11.81

12

REFLECTOR-REFLEX,FR

28012-016

$23.25

13

DAMPER,REFLECTOR

92094-011

$4.60

14

DAMPER,FUEL TANK

92075-125

$6.22

15

WASHER,10.5X26X2.3

92022-044

$3.92

16

BALL-STEEL,1/4

600A0800

$0.62

17

RACE,STEERING STEM BEARING

92048-008

$16.02

18

FRAME

32002-121

$1,070.98

18

FRAME

32002-1016

$1,155.28

19

RACE,STEERING STEM BEARING

92048-006

$11.61

20

RACE,STEERING STEM BEARING

92047-011

$14.60

21

CAP,STEERING STEM

46098-016

$6.51

22

NUT,30MM

92090-007

$11.71

23

WASHER,WAVE

46100-003

$11.39

24

WASHER,16X41X4

92022-230

$11.93

25

BOLT,16X25.5

92007-031

Unavailable

26

BOLT

92003-214

$7.49

26-1

BOLT,HEX HEAD,8X59

110G0859

Unavailable

27

BOLT FLANGED 8X55

92001-1398

$4.04

28

DAMPER RUBBER,FL TK

92075-274

Unavailable

29

BOLT

92003-215

$12.84

29-1

BOLT,10X45

92001-1182

$10.86

30

BOLT

92003-185

$13.86

31

PLUG,22X3

32112-008

$4.34

32

BOLT

92003-186

Unavailable

33

BOLT,FLANGED,8X35

92001-1577

Unavailable

34

GROMMET

92071-056

$4.26

35

WASHER SPRING 10MM

461F1000

$0.67

36

NUT,LOCK,10MM

92019-021

$6.11

37

PLATE,ENG FIT,RR R.H

32030-049

$11.97

38

COLLAR

92027-246

$11.21

39

COLLAR

92027-245

$10.22

40

PLATE,ENG FIT,RR L.H

32030-048

$9.59

40

PLATE,REAR ENG MOUNT

13169-1048

Unavailable

41

BOLT,FLANGED,10X325

92001-1654

Unavailable

42

BOLT,HEX HEAD,10X50

92001-1254

$4.38

43

BOLT,HEX HEAD,8X59

110G0859

Unavailable

44

BOLT,FLANGED,8X70

92001-1583

$9.57

45

PLATE,ENG FIT,FRONT

32030-047

$11.56

46

NUT

92016-055

$10.30

47

BOLT,FLANGED,10X70

92001-1618

$10.37
