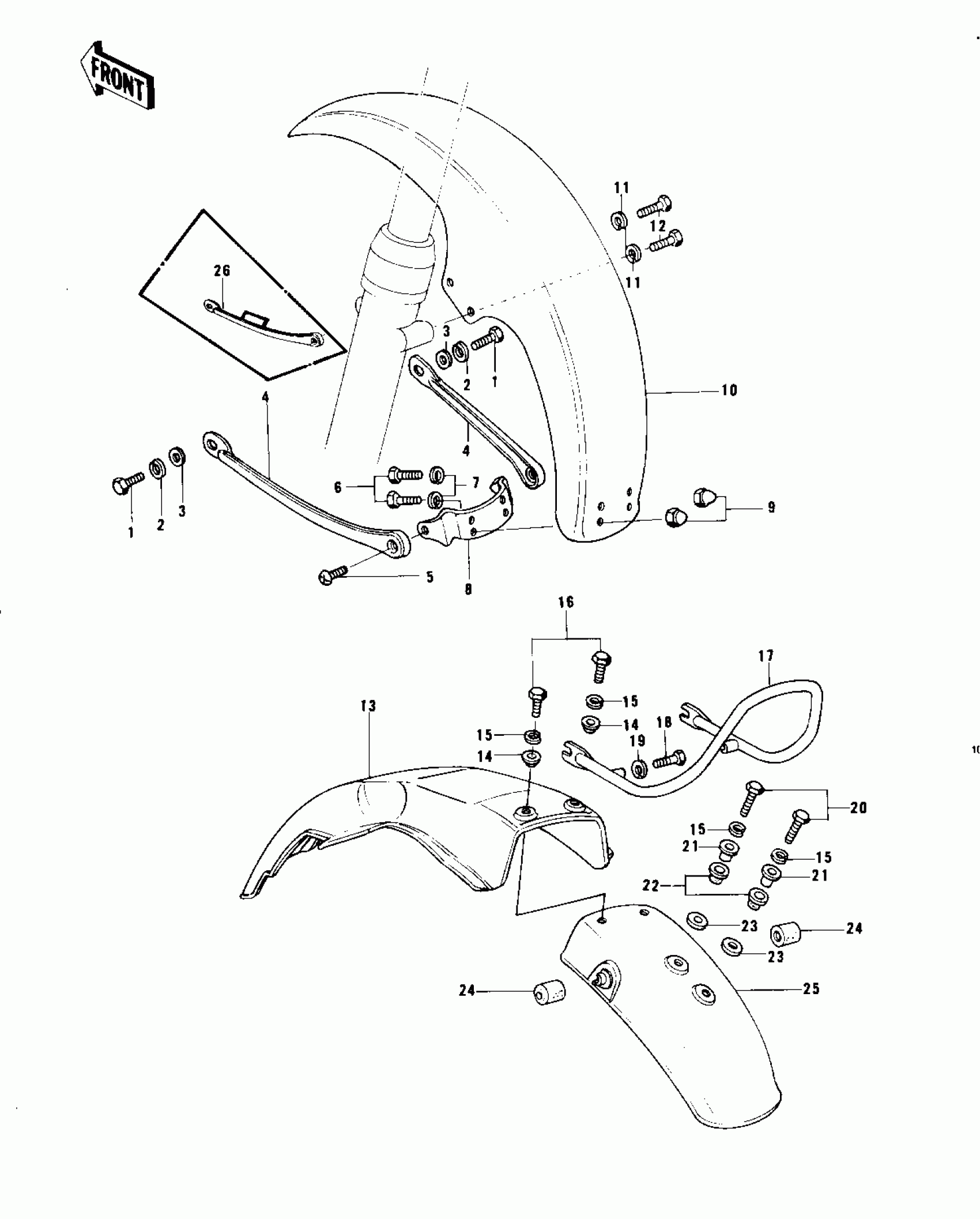

Kawasaki KZ750-B4 FENDERS Diagram
#
Description
Price
1
BOLT-UPSET
112G0618
$1.01
2
WASHER SPRING 6MM
461F0600
$0.69
3
WASHER,6.5X16X2
92022-1565
$3.92
4
STAY,FRONT FENDER
35010-028
Unavailable
4
STAY,FRONT FENDER
35010-028
Unavailable
5
SCREW,OVL CNTSK,6X18
222E0618
$2.66
6
BOLT HEX HEAD 5X8
110B0508
$0.28
7
WASHER SPRING 5MM
461F0500
$0.69
8
BRACE,FRONT FENDER
35009-038
Unavailable
9
NUT-CAP,5MM
322N0500
$2.85
10
FENDER-FR
35003-017
Unavailable
11
WASHER SPRING 8MM
461F0800
$0.40
12
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
13
FENDER-RR
35022-134
$62.39
14
COLLAR,L=6.5
92027-252
$5.24
15
WASHER SPRING 6MM
461F0600
$0.69
16
BOLT-UPSET,6X16
112G0616
$1.10
17
STAY,REAR FENDER
35032-039
Unavailable
18
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
19
WASHER SPRING 8MM
461F0800
$0.40
20
BOLT-UPSET
112G0625
$3.62
21
COLLAR,L=13.1
92027-251
Unavailable
22
RUBBER,FENDER COVER
92075-174
$4.78
23
DAMPER,FEMALE
92075-175
$4.39
24
DAMPER RUBBER,RR FEN
92075-290
Unavailable
25
FENDER-RR
35022-135
Unavailable
26
STAY,FRONT FENDER
35011-1006
$33.18
