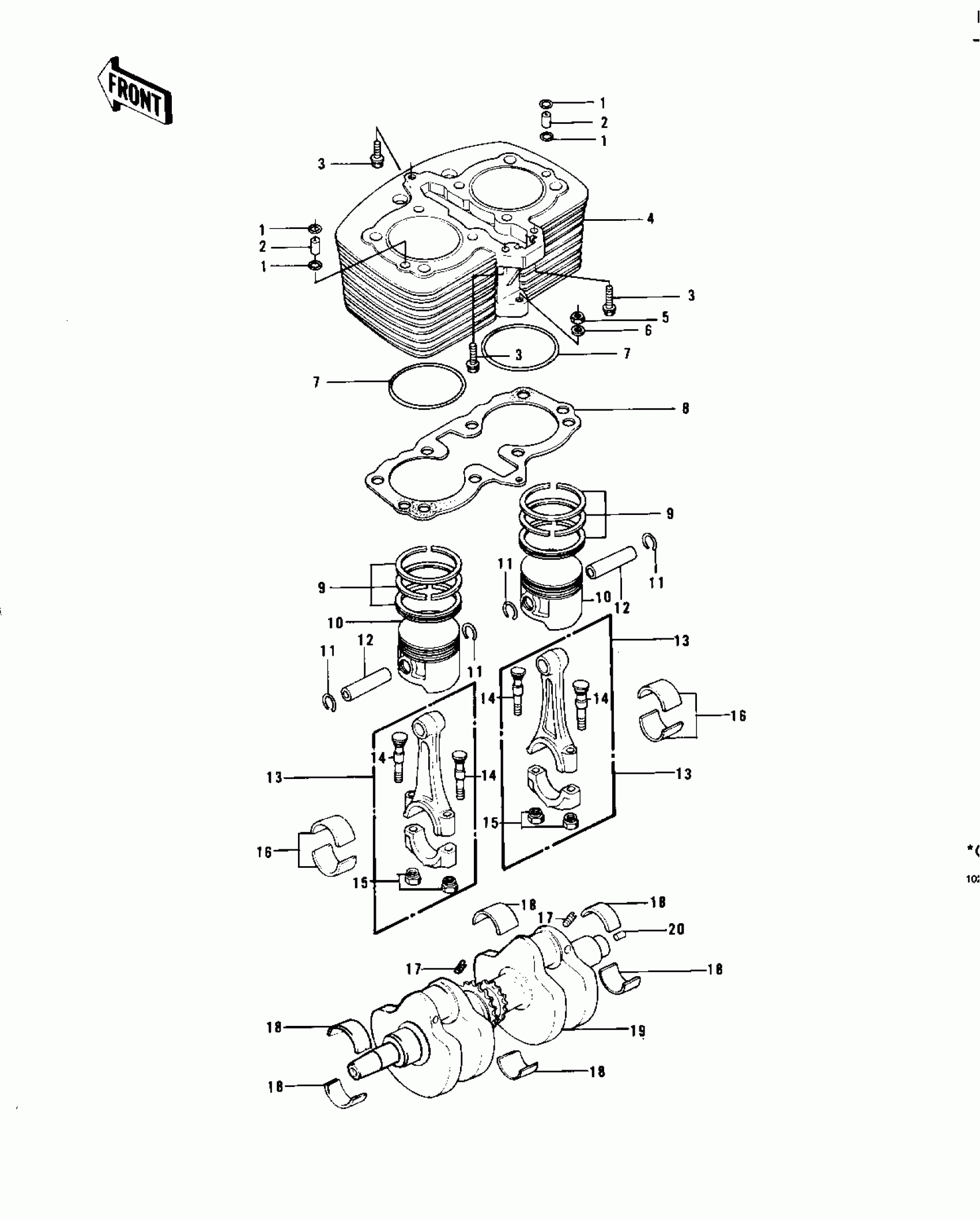

Kawasaki KZ750-B4 CYLINDER/PISTONS/CRANKSHAFT Diagram
#
1
"O" RING
92055-094
Unavailable
2
PIN,DOWEL
92042-039
Unavailable
3
BOLT, HEX HEAD, 6X34
92003-159
Unavailable
4
CYLINDER,BARREL
11005-150-2H
Unavailable
5
NUT 6MM
311B0600
Unavailable
6
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
7
"O" RING
92055-081
Unavailable
8
GASKET,CYLINDER BASE
11009-042
Unavailable
9
RING SET,PISTON
13008-055
Unavailable
9
RING SET,0.020'0.S
13025-059
Unavailable
9
RING SET,0.040'0.S
13024-059
Unavailable
10
PISTON,STD
13001-1086
Unavailable
10
PISTON,0.50 O/S
13029-1039
Unavailable
10
PISTON,1.00 O/S
13027-1038
Unavailable
11
RING-SNAP,PISTON PIN
92036-008
Unavailable
12
PIN-PISTON
13002-031
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-II
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-II
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-JJ
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-JJ
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-KK
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-KK
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-LL
Unavailable
13
UNAVAILABLE IN PRICE BOOK
*13032-051-LL
Unavailable
14
BOLT,CONNECTING ROD
92001-170
Unavailable
15
NUT,FLANGED,8MM
92015-1311
Unavailable
16
METAL,CON ROD BRG
13034-043
Unavailable
16
METAL,CON ROD BRG
13034-045
Unavailable
16
METAL,CON ROD BRG
13034-046
Unavailable
17
SCREW
291H0812
Unavailable
18
METAL,CRANK BRG
13034-044
Unavailable
19
CRANK SHAFT ASSY
13031-1002
Unavailable
19
CRANKSHAFT ASSY
13031-1005
Unavailable
20
PIN-DOWEL,4X8
551A0408
Unavailable
20
PIN-SPRING,4X8
555A0408
Unavailable
