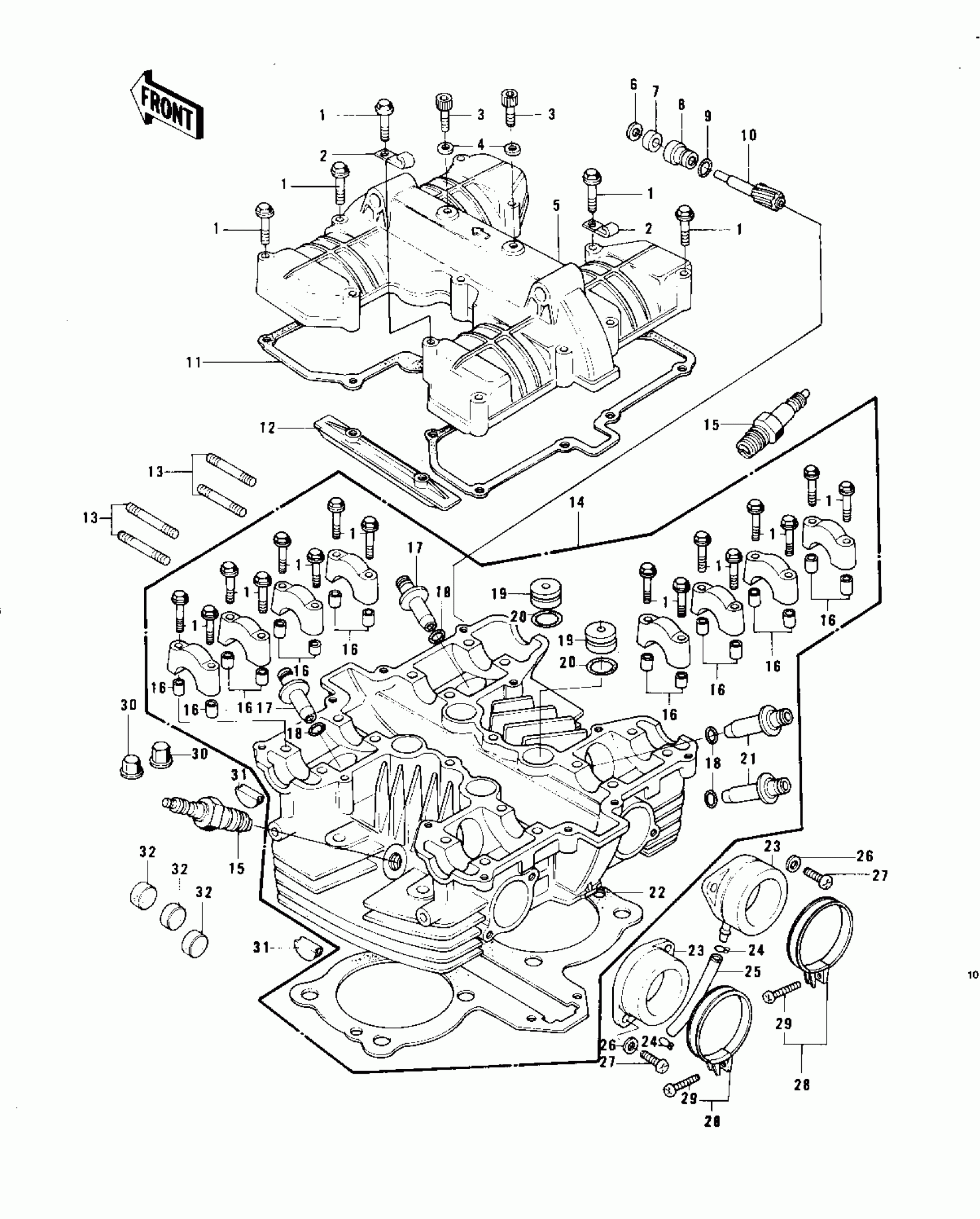

Kawasaki KZ750-B4 CYLINDER HEAD/COVER Diagram
#
1
BOLT,FLANGED,6X45
92003-092
Unavailable
2
CLAMP,WIRING HARNESS
21126-008
Unavailable
3
BOLT-SOCKET,6X14
120P0614
Unavailable
4
GASKET
92065-096
Unavailable
5
COVER,CYLINDER HEAD
11022-008-2H
Unavailable
6
GASKET,TACHOMETER GEAR
92065-103
Unavailable
7
SEAL-OIL
92050-075
Unavailable
8
GUIDE,TACHOMETER GEAR
92087-009
Unavailable
9
O RING,9.8X1.9
670B1510
Unavailable
10
GEAR,TACHOMETER
13223-013
Unavailable
10
GEAR,TACHOMETER
13223-013
Unavailable
11
GASKET,CYL HEAD COVE
11023-008
Unavailable
12
SLIPPER,CAM CHAIN
12053-016
Unavailable
13
STUD,8MM
92004-058
Unavailable
14
HEAD ASSY,CYL,BARREL
11002-5010
Unavailable
15
SPARK PLUG B8ES
B8ES
Unavailable
15
SPARK PLUG B6ES
B6ES
Unavailable
16
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
17
GUIDE,EXHAUST VALVE
12013-011
Unavailable
17
GUIDE,EXHAUST VALVE
12013-011
Unavailable
18
"O" RING,VALVE GUIDE
92055-065
Unavailable
19
PLUG,CYLINDER HEAD
92066-052
Unavailable
20
"O" RING
92055-095
Unavailable
21
GUIDE,INLET VALVE
12013-007
Unavailable
22
GASKET,CYLINDER HEAD
11004-1055
Unavailable
23
HOLDER,CARBURETOR
16065-036
Unavailable
24
CLAMP,TUBE
92037-072
Unavailable
25
TUBE,BALANCER
92059-122
Unavailable
26
WASHER PLAIN 6MM
411B0600
Unavailable
27
SCREW PAN HEAD 6X18
220B0618
Unavailable
28
CLAMP,AIR FILTER
92037-171
Unavailable
29
SCREW-PAN-CROS
220B0535
Unavailable
30
NUT,FLANGED CAP,10MM
92015-076
Unavailable
31
PLUG,CAM SHAFT
92066-047
Unavailable
32
DAMPER,CYLINDER HEAD/CYLINDER
92075-109
Unavailable
