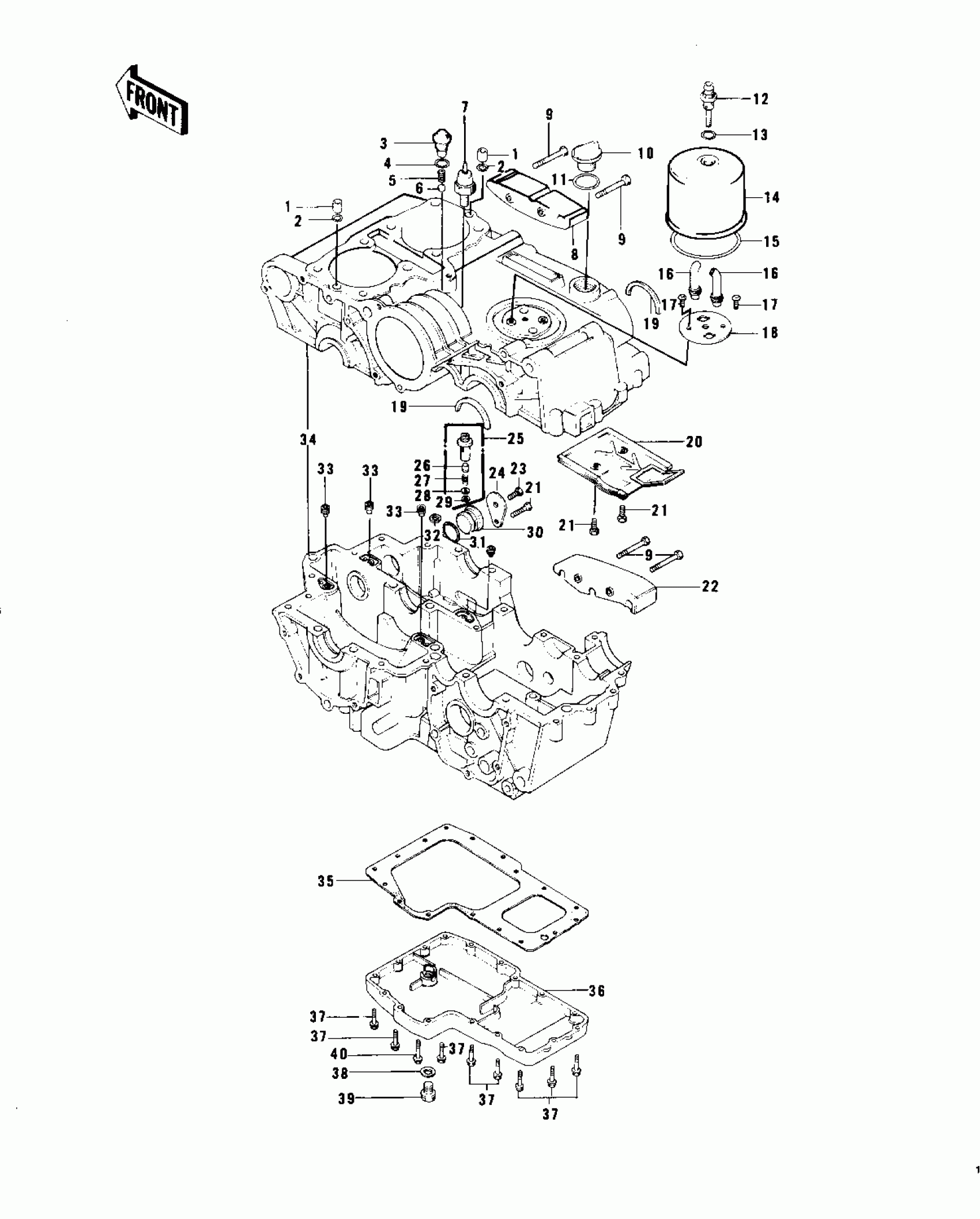

Kawasaki KZ750-B4 CRANKCASE/BREATHER COVER/OIL PAN Diagram
#
1
PIN,11X14X12.3
92043-1266
Unavailable
2
"O" RING
92055-093
Unavailable
3
PLUG,FILTER COVER
92066-050
Unavailable
4
O RING,18MM
670B2018
Unavailable
5
SPRING
92081-109
Unavailable
6
BALL-STEEL,3/8"
600A1200
Unavailable
7
SWITCH,OIL PRESSURE
27010-1157
Unavailable
7
SWITCH,OIL PRESSURE
27010-1157
Unavailable
8
SLIPPER,PRIMARY CHAIN
12053-020
Unavailable
9
BOLT,FLANGED,8X35
92001-1577
Unavailable
10
CAP-OIL FILLER
16115-013
Unavailable
11
RING-O,31.5X2.6
92055-049
Unavailable
12
BOLT,BREATHER FITTING
92003-098
Unavailable
13
O RING,16MM
670B2016
Unavailable
14
BODY,BREATHER
14070-003
Unavailable
14
BODY,BREATHER
14070-007
Unavailable
15
RING-O,91.6X3.4
92055-052
Unavailable
16
PIPE,BREATHER PLATE
92059-118
Unavailable
16
TUBE,BREATHER
92059-140
Unavailable
17
SCREW PAN HEAD 6X18
220B0618
Unavailable
18
PLATE,BREATHER
14068-007
Unavailable
19
RING-POSITION
14013-004
Unavailable
20
PLATE,BREATHER
14068-008
Unavailable
21
BOLT-UPSET 6X14
112B0614
Unavailable
22
SLIPPER,PRIMARY CHAIN
12053-021
Unavailable
23
BOLT HEX HEAD 6X8
110B0608
Unavailable
24
SPACER
92026-115
Unavailable
25
VALVE-ASSY-RELIEF
16130-1001
Unavailable
25
VALVE-ASSY-RELIEF
16130-1001
Unavailable
26
PISTON,RELEAF VALVE
16126-002
Unavailable
27
SPRING,RELEAF VALVE
16133-003
Unavailable
28
SPACER,RELEAF VALVE
92026-097
Unavailable
29
CIRCLIP, 12MM
481J1200
Unavailable
30
PLUG
92066-049
Unavailable
31
"0" RING
670B3030
Unavailable
32
RING-O,OD=18
92055-048
Unavailable
33
SCREW,SLOTTED
92013-007
Unavailable
34
SET-CRANKCASE
14001-5092
Unavailable
35
GASKET,OIL PAN
16112-004
Unavailable
36
PAN,OIL
16110-004
Unavailable
37
BOLT,FLANGED,6X25
130G0625
Unavailable
38
GASKET,12X22X2
92065-097
Unavailable
39
PLUG,OIL DRAIN,12X15
92066-1174
Unavailable
40
BOLT, HEX HEAD, 6X34
92003-159
Unavailable
