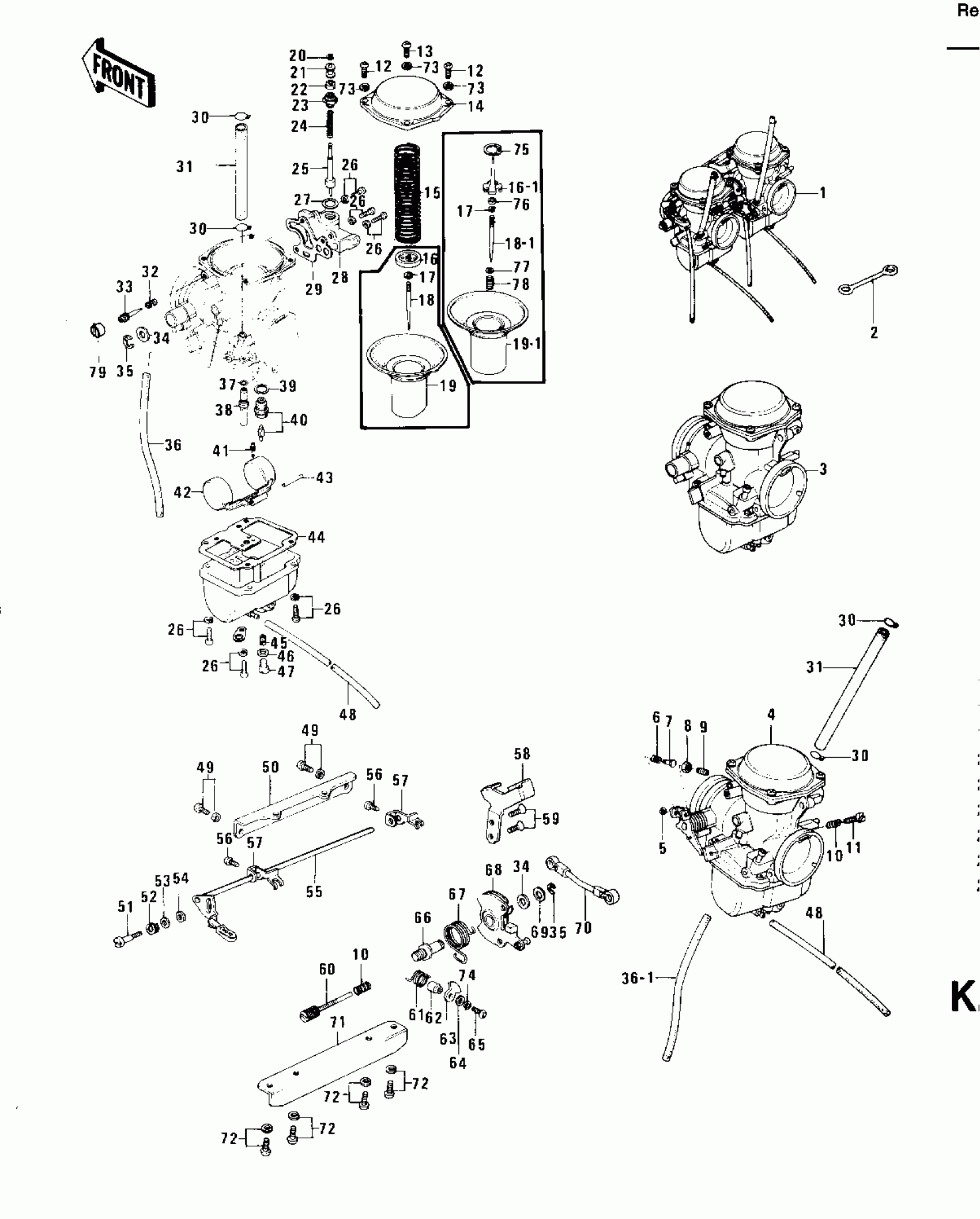

Kawasaki KZ750-B4 CARBURETORS (KZ750-B4) Diagram

#

Description
Price

1

CARBURETOR ASSY,

16001-1019

$904.83

2

CLAMP,OVER FLOW PIPE

92037-134

$11.50

3

CARBURETOR,L.H.

16001-1105

$413.56

4

CARBURETOR,R.H.

16001-1104

$316.29

5

CIRCLIP

16008-017

Unavailable

6

SPRING,LEVER

16040-019

Unavailable

7

PIN

16042-008

Unavailable

8

NUT-HEX,5MM

312B0500

$0.46

9

SCREW,LEVER

16033-025

Unavailable

10

SPRING,THROTTLE ADJST

16022-010

Unavailable

11

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

12

SCREW-PAN-CROS

220B0514

$4.04

13

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

14

COVER,DIAPHRAGM

14030-1003

Unavailable

15

SPRING,DIAPHRAGM

92081-1080

$13.09

16-1

HOLDER,JET NEEDLE

13091-1026

Unavailable

17

CLAMP,E-TYPE

16008-014

$9.64

18-1

JET NEEDLE,4HL12-3

16009-1016

Unavailable

19-1

DIAPHRAGM

16028-1001

$97.87

20

CIRCLIP

16076-003

$8.92

21

COLLAR

16073-014

$10.47

22

RUBBER CAP,STARTER PL

16036-017

Unavailable

23

CAP,STARTER PLUNGER

16012-020

Unavailable

24

SPRING,STARTER PLUG

16013-008

Unavailable

25

PLUNGER,STARTER

16016-019

Unavailable

26

SCREW,FLOAT CHAM FIT

16033-027

Unavailable

27

WASHER,PLAIN

16039-041

Unavailable

28

BODY,STARTER

16012-1004

Unavailable

29

WASHER

16029-011

Unavailable

30

CLAMP,TUBE

92037-072

$7.22

31

PIPE,FUEL

92059-130

$24.48

32

SPRING,PILOT AIR SCREW

16022-007

$8.13

33

SCREW,PILOT ADJUST

16014-1008

$15.43

34

WASHER

16039-032

Unavailable

35

CIRCLIP

16008-015

Unavailable

36

PIPE,OVER FLOW

92059-085

Unavailable

36-1

HOSE,BREATHER,4.5X550

92059-1064

$21.01

37

"O" RING,NEEDLE JET

16038-021

Unavailable

38

NEEDLE JET,Z-2

16017-1023

Unavailable

39

GASKET,FLOAT VALVE

11009-1076

Unavailable

40

FLOAT VALVE ASSY

16030-026

Unavailable

41

PILOT JET,#A30

92064-1021

$9.25

42

FLOAT

16031-030

Unavailable

43

PIN,FLOAT

16032-003

$6.57

44

GASKET,FLOAT CHAMBER

16019-029

Unavailable

45

MAIN JET,#125

92063-143

Unavailable

46

WASHER,PLAIN

16039-036

Unavailable

47

SCREW

16033-022

Unavailable

48

HOSE,FUEL OVERFLOW

92059-127

$11.07

49

SCREW,5X10

16033-028

Unavailable

50

SHAFT

16041-014

$6.70

51

SCREW

16046-005

Unavailable

52

SPRING,F

16040-009

Unavailable

53

WASHER

16039-033

Unavailable

54

WASHER,PLAIN,NYLON

16039-019

Unavailable

55

SHAFT,CHOKE LEVER

16041-1003

Unavailable

56

SCREW PAN HEAD 5X8

220B0508

$0.46

57

LEVER,CHOKE ADJUST

92037-1093

Unavailable

58

BRACKET

16070-004

$17.20

59

SCREW,5X8

16033-024

$7.47

60

THROTTLE ADJUSTER

16021-027

Unavailable

61

SPRING

16040-018

Unavailable

62

COLLAR

16073-012

Unavailable

63

LEVER

16063-010

Unavailable

64

WASHER,PLAIN

16039-038

$5.88

65

SCREW-PAN HEAD,4X20

220E0420A

$2.76

66

SHAFT

16041-015

Unavailable

67

SPRING,THROTTLE CABL

16040-017

Unavailable

68

PULLY,THROTTLE CABLE

16074-004

Unavailable

69

WASHER,PLAIN

16039-037

Unavailable

70

JOINT

16046-008

Unavailable

71

PLATE

16055-011

$11.06

72

SCREW

16033-026

Unavailable

73

WASHER SPRING 5MM

461F0500

$0.69

74

WASHER SPRING 4MM

461F0400

Unavailable

75

CIRCLIP

92033-1009

Unavailable

76

RING,JET NEEDLE

92027-1115

Unavailable

77

WASHER,JET NEEDLE

92022-1123

$8.98

78

SPRING,JET NEEDLE

92081-1126

$8.36

79

CAP,LIMITER

11012-1046

Unavailable
