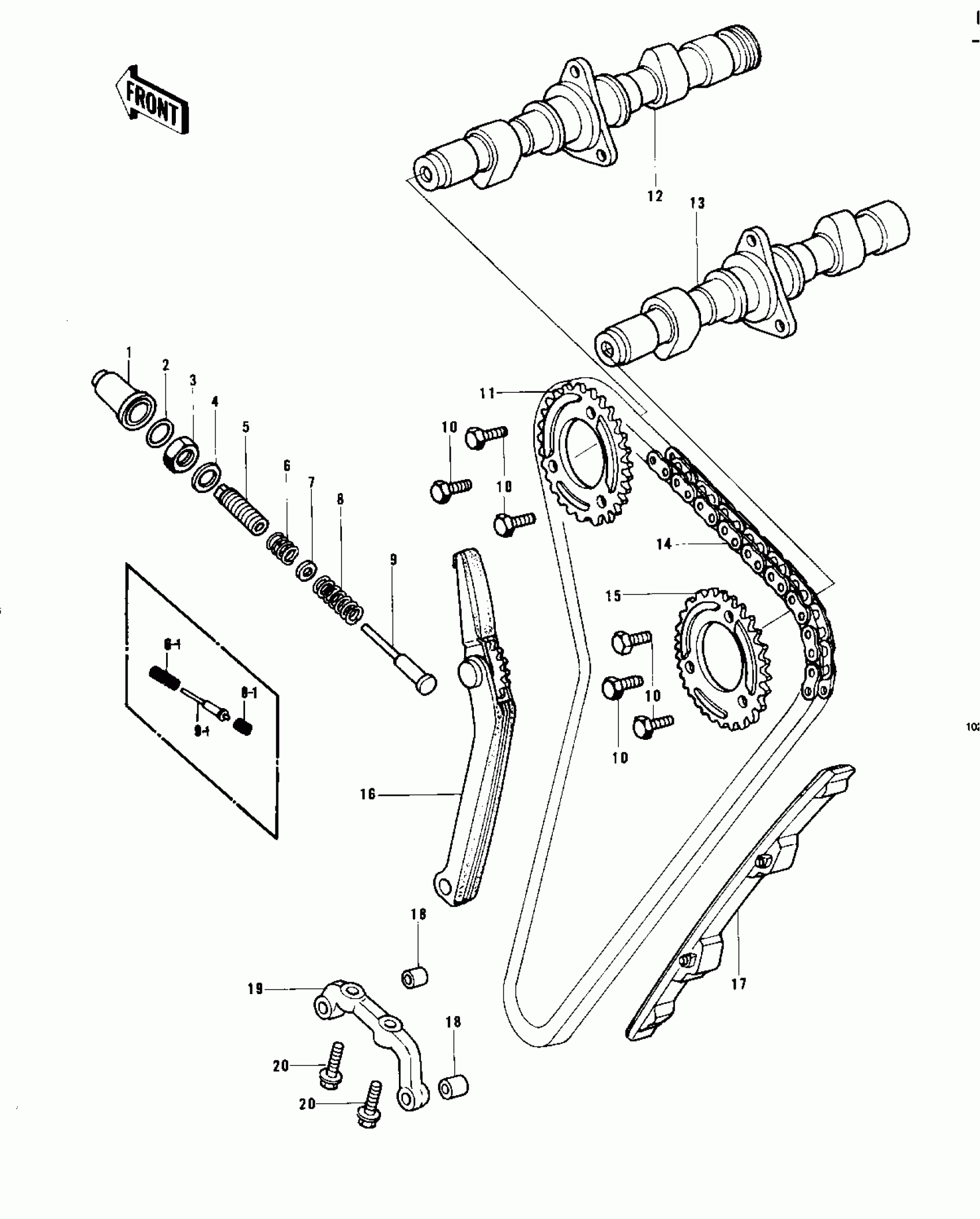

Kawasaki KZ750-B4 CAMSHAFTS/CHAIN/TENSIONER Diagram
#
Description
Price
1
CAP,CHN TENSIONER
12064-003
Unavailable
2
"O" RING
92055-095
Unavailable
3
NUT,18MM
92015-019
Unavailable
4
WASHER,PLAIN
92022-320
Unavailable
5
BOLT
92003-188
Unavailable
5
BOLT,PUSH ROD
92001-1009
Unavailable
6
SPRING
92081-144
Unavailable
6-1
SPRING
92081-1008
Unavailable
7
WASHER,7X15.5X3
92022-312
Unavailable
8
SPRING,CHN TENSIONER
92081-143
Unavailable
8-1
SPRING,PUSH ROD
92081-1007
Unavailable
9
ROD,PUSH
12054-004
Unavailable
9-1
ROD,PUSH
13116-1001
Unavailable
10
BOLT,FLANGED,6X11
92003-208
Unavailable
10
BOLT,FLANGED,6X11
92003-208
Unavailable
11
SPROCKET,CAM SFT,EXH
12046-007
Unavailable
12
CAMSHAFT,EXHAUST
12044-020
Unavailable
13
CAM SHAFT,INLET
12044-010
Unavailable
14
CHAIN,CAM
21070-011
Unavailable
15
SPROCKET,CAM SFT,IN
12046-006
Unavailable
16
TENSIONER ASSY,CAM
12048-005
Unavailable
17
SLIPPER,CAM CHAIN
12053-015
Unavailable
18
PIN,DOWEL,10X32
551A1032
Unavailable
19
HOLDER
14018-006
Unavailable
20
BOLT,FLANGED,6X28
92003-202
Unavailable
