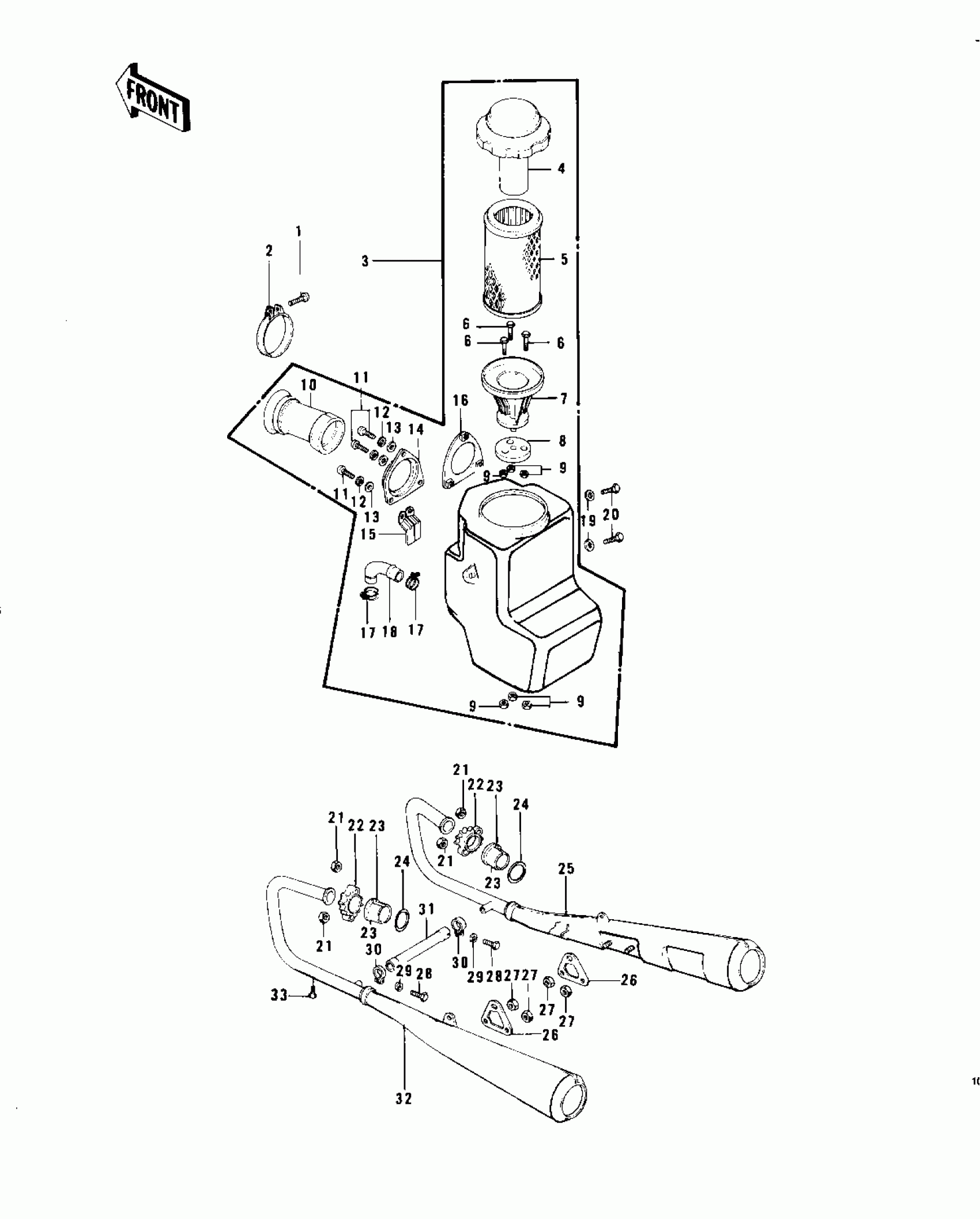

Kawasaki KZ750-B4 AIR CLEANER/MUFFLERS Diagram
#
Description
Price
1
SCREW-PAN-CROS
220B0535
$3.70
2
CLAMP,AIR FILTER
92037-171
$12.95
3
AIR CLEANER ASSY
11010-109
Unavailable
3
AIR CLEANER ASSY
11010-109
Unavailable
4
PIPE,INLET
11015-049
Unavailable
5
ELEMENT,AIR CLNR
11013-051
Unavailable
6
BOLT-UPSET,6X20
112G0620
$2.12
7
HOLDER
11033-004
Unavailable
8
GASKET
11039-001
Unavailable
9
NUT 6MM
311B0600
$0.93
10
CONNECTOR
11026-018
Unavailable
11
SCREW PAN HEAD 4X16
220B0416
$1.66
12
WASHER SPRING 4MM
461F0400
Unavailable
13
WASHER PLAIN 4MM
410B0400
$0.48
14
PLATE,INLET PIPE
11040-004
Unavailable
15
PLATE,AIR CLNR BODY
11040-006
Unavailable
16
PLATE,INLET PIPE
11040-005
Unavailable
17
CLAMP,BREATHER HOSE
92037-123
$4.34
17
CLAMP,BREATHER TUBE
92037-192
$6.52
18
TUBE
92059-121
$15.93
19
WASHER,6.5X20X1.6
92022-125
$1.40
20
BOLT-UPSET,6X16
112G0616
$1.10
21
NUT,LOCK,8MM
92017-013
$10.35
22
HOLDER,EXHAUST PIPE
18069-060
Unavailable
23
COLLAR,EXHAUST PIPE
92027-248
Unavailable
24
GASKET,EXHAUST PIPE H
11009-1840
$8.17
25
MUFFLER ASSY,R.H
18001-217
$1,072.95
25
MUFFLER ASSY,R.H
18001-217
$1,072.95
25
MUFFLER ASSY,R.H
18001-217
$1,072.95
26
BRACKET,MUFFLER
18024-028
$23.27
27
NUT,LOCK,8MM
92017-013
$10.35
28
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
29
WASHER SPRING 8MM
461F0800
$0.40
30
CLAMP,PIPE,34.5MM
92037-1219
Unavailable
31
PIPE
32032-1752
Unavailable
32
MUFFLER ASSY,L.H
18001-216
$828.28
32
MUFFLER ASSY,L.H
18001-216
$828.28
32
MUFFLER ASSY,L.H
18001-216
$828.28
33
BOLT (6X10)
110R0610
$3.44
