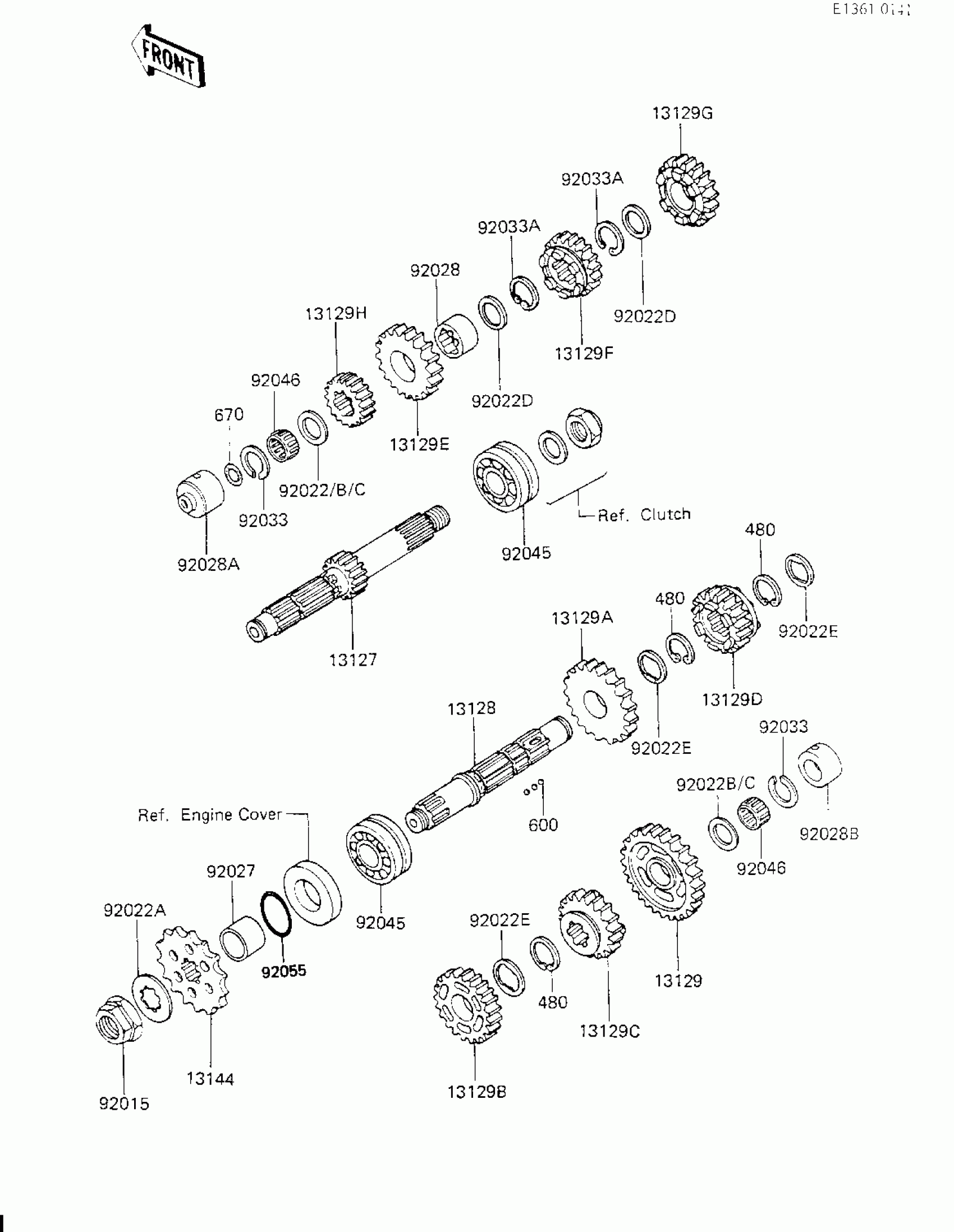

Kawasaki KZ700-A1 TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1018

Unavailable

13128

SHAFT,OUTPUT

13128-1012

Unavailable

13129

GEAR,OUTPUT LOW,35T

13129-1046

Unavailable

13129A

GEAR,OUTPUT 2ND,31T

13129-1047

Unavailable

13129B

GEAR,OUTPUT 3RD,28T

13129-1048

Unavailable

13129C

GEAR,OUTPUT 4TH,26T

13129-1049

Unavailable

13129D

GEAR,OUTPUT TOP,21T

13129-1201

Unavailable

13129E

GEAR,INPUT TOP,24T

13129-1425

Unavailable

13129F

GEAR,INPUT 3RD,22T

13129-1445

Unavailable

13129G

GEAR,INPUT 4TH,25T

13129-1446

Unavailable

13129H

GEAR,INPUT 2ND,19T

13130-041

Unavailable

13144

ENGINE SPROCKET,13T

13144-1033

Unavailable

92015

NUT,20MM

92015-1254

$14.90

92022

WASHER,20.3X30X0.7,STEEL

92022-1026

Unavailable

92022A

WASHER

92200-1065

$6.63

92022B

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022C

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

92022D

WASHER,25.3X30X1

92022-161

$10.65

92022E

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

92027

COLLAR

92027-268

Unavailable

92028

BUSHING,INPUT TOP GEAR

92028-1007

$29.67

92028A

BUSHING,INPUT SHAFT

92028-1150

$60.75

92028B

BUSHING,27X34X18.6

92028-1151

$36.12

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92045

BEARING-BALL,83993SH2-CS

92045-035

$73.57

92046

BEARING-NEEDLE,20V2715

92046-1045

Unavailable

92055

RING-O

92055-035

$5.00

480

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

670

O RING,8MM

670B1508

$1.29
