Description

Price

11012

CAP,SWING ARM

33035-009

Unavailable

32085

STOPPER,CHAIN ADJUST

33044-002

Unavailable

33001

ARM-COMP-SWING

33001-1159

$267.60

33032

SHAFT-SWING ARM,16X3

33032-1028

$74.89

33040

ADJUSTER,CHAIN

33040-056

Unavailable

42036

SLEEVE,SWING ARM

42036-1012

Unavailable

45014

SHOCKABSORBER,RR,BLA

45014-1225-10

Unavailable

92002

BOLT,CHAIN ADJUSTER,8X50

92002-1076

$9.48

92002A

BOLT,8X35

92002-1230

$3.02

92015

NUT,LOCK,CAP,12MM,BL

92015-1192

Unavailable

92015A

NUT,LOCK,16MM,BLACK

92015-1207

Unavailable

92015B

NUT,8MM

92015-1364

$3.92

92022

WASHER,12.4X28X2.3,B

92022-1303

Unavailable

92022A

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92046

BEARING-NEEDLE,HK2216

92046-1115

$20.02

92049

SEAL-OIL,MHA22284

92049-1059

$11.00

92075

DAMPER,SHOCKABSORBER,LWR

45017-019

$19.66

92075A

DAMPER,SHOCKABSORBER

92075-1141

$14.90

92075B

DAMPER,

92075-1144

$19.57

113

BOLT-SMALL-FINE,10X3

112C1035

$3.58

410

WASHER-PLAIN-SMALL,12MM,BLACK

410F1200

$4.58

461

WASHER-SPRING,10MM,BLACK

461K1000

$2.44

461A

WASHER-SPRING,12MM,BLACK

461K1200

Unavailable

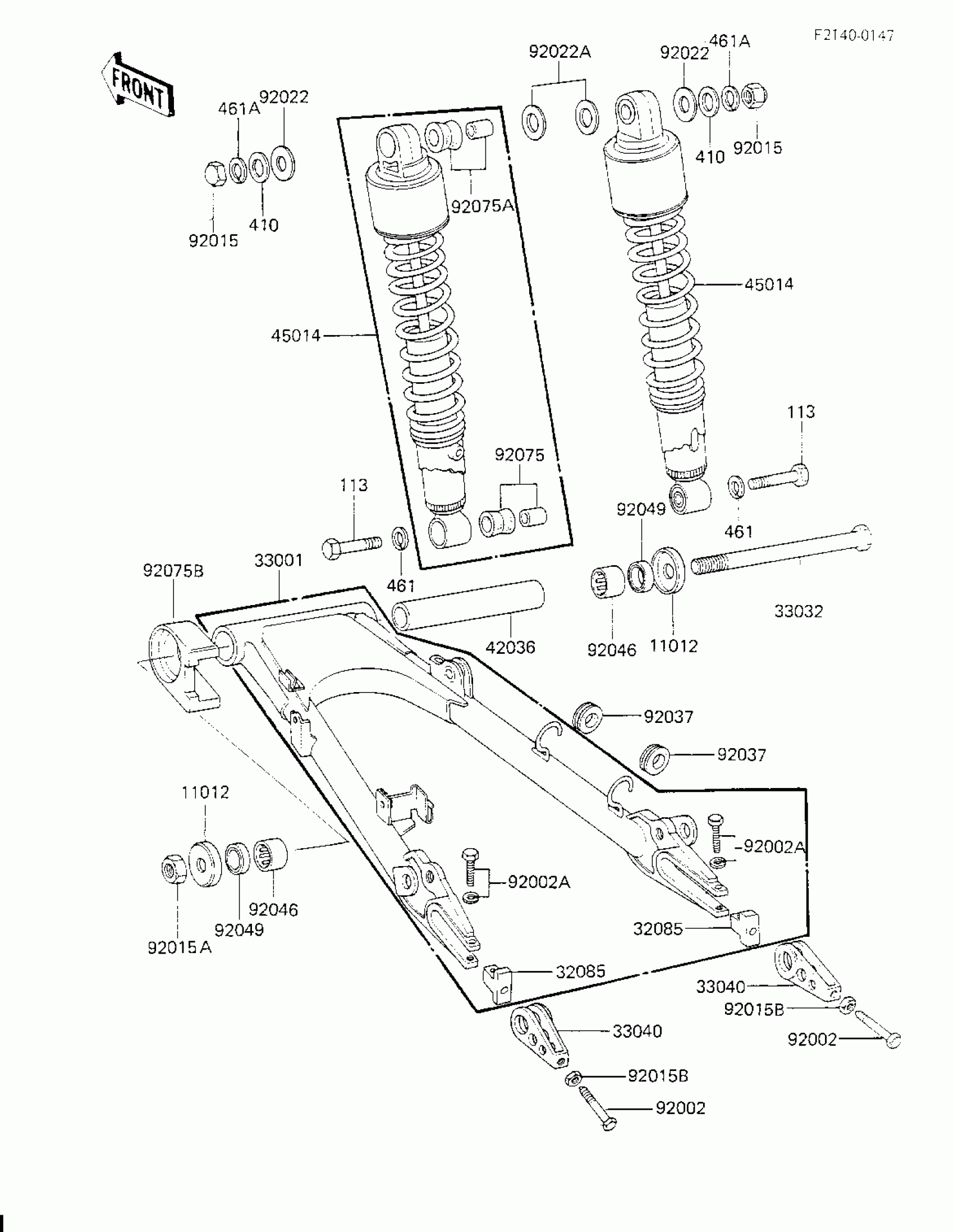

Kawasaki KZ700-A1 SWING ARM/SHOCK ABSORBERS Diagram

CAP,SWING ARM

STOPPER,CHAIN ADJUST

ARM-COMP-SWING

SHAFT-SWING ARM,16X3

ADJUSTER,CHAIN

SLEEVE,SWING ARM

SHOCKABSORBER,RR,BLA

BOLT,CHAIN ADJUSTER,8X50

BOLT,8X35

NUT,LOCK,CAP,12MM,BL

NUT,LOCK,16MM,BLACK

NUT,8MM

WASHER,12.4X28X2.3,B

WASHER-PLAIN-SMALL,14MM

GROMMET,HOSE CLAMP

BEARING-NEEDLE,HK2216

SEAL-OIL,MHA22284

DAMPER,SHOCKABSORBER,LWR

DAMPER,SHOCKABSORBER

DAMPER,

BOLT-SMALL-FINE,10X3

WASHER-PLAIN-SMALL,12MM,BLACK

WASHER-SPRING,10MM,BLACK

WASHER-SPRING,12MM,BLACK
