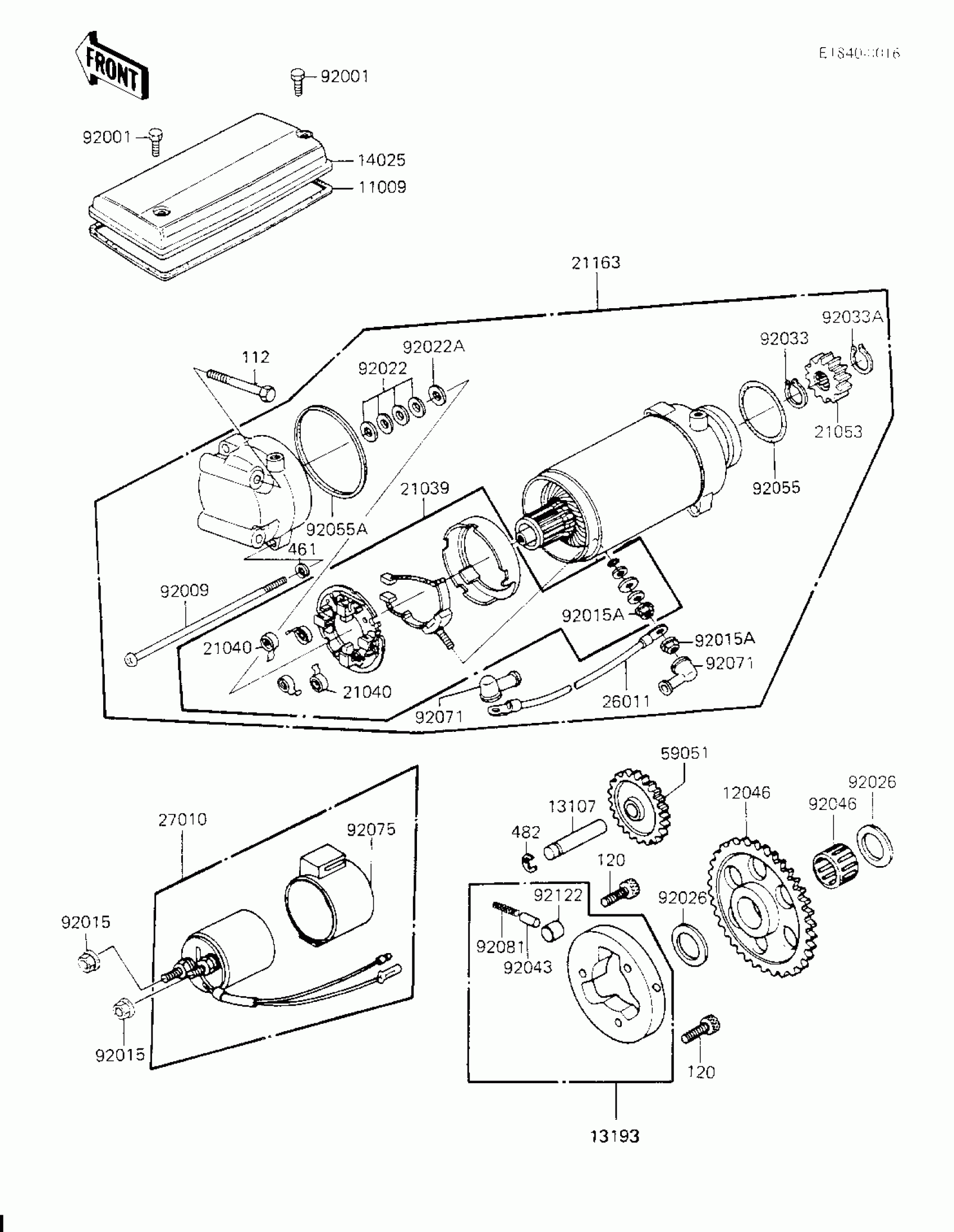

Kawasaki KZ700-A1 STARTER MOTOR/STARTER CLUTCH Diagram
#
Description
Price
11009
GASKET,STARTER COVER
21166-003
Unavailable
12046
SPROCKET,STARTER,58T
12046-1032
Unavailable
13107
SHAFT,IDLE GEAR
21143-003
$14.64
13193
CLUTCH-ASSY-ONEWAY
13193-1012
Unavailable
14025
COVER,STARTER
21165-003
Unavailable
21039
BRUSH,CARBON
21039-1053
$94.23
21040
SPRING-BRUSH
21040-1003
$9.41
21053
SPROCKET-ASSY,STARTER
21053-004
$93.28
21163
STARTER-ELECTRIC
21163-1190
$596.26
26011
WIRE-LEAD,STARTER MOTOR
26011-1135
$74.28
27010
SWITCH ASSY,MAGNETIC
21164-005
$159.50
59051
GEAR-SPUR,IDLE,29T
21167-004
$101.58
92001
BOLT,6X10
92001-1151
$5.01
92009
SCREW,PAN HEAD,6X130
21099-006
Unavailable
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,FLANGED,6MM
92015-1078
Unavailable
92022
WASHER,9.1X18X0.2
21025-011
$6.22
92022A
WASHER,9.1X18X0.8
92022-1132
$6.22
92026
SPACER,25X36X3.2
92026-1025
$6.16
92033
RING-SNAP,17MM
92033-034
$10.44
92033A
RING-SNAP,13MM
92033-037
$9.80
92043
PIN
92043-087
$12.76
92046
BEARING-NEEDLE,K253017
92046-056
$23.42
92055
RING-O,40MM
21027-008
$12.48
92055A
RING-O,64MM
92055-1086
$10.00
92071
GROMMET,STARTER TERMINAL
21017-017
$9.43
92075
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
92081
SPRING
92081-110
$4.76
92122
ROLLER,15X13
92122-004
$11.07
112
BOLT-UPSET
112G0660
Unavailable
120
BOLT-SOCKET,8X12
120P0812
$4.24
461
WASHER SPRING 6MM
461F0600
$0.69
482
CIRCLIP 12MM
482K0200
$1.25
