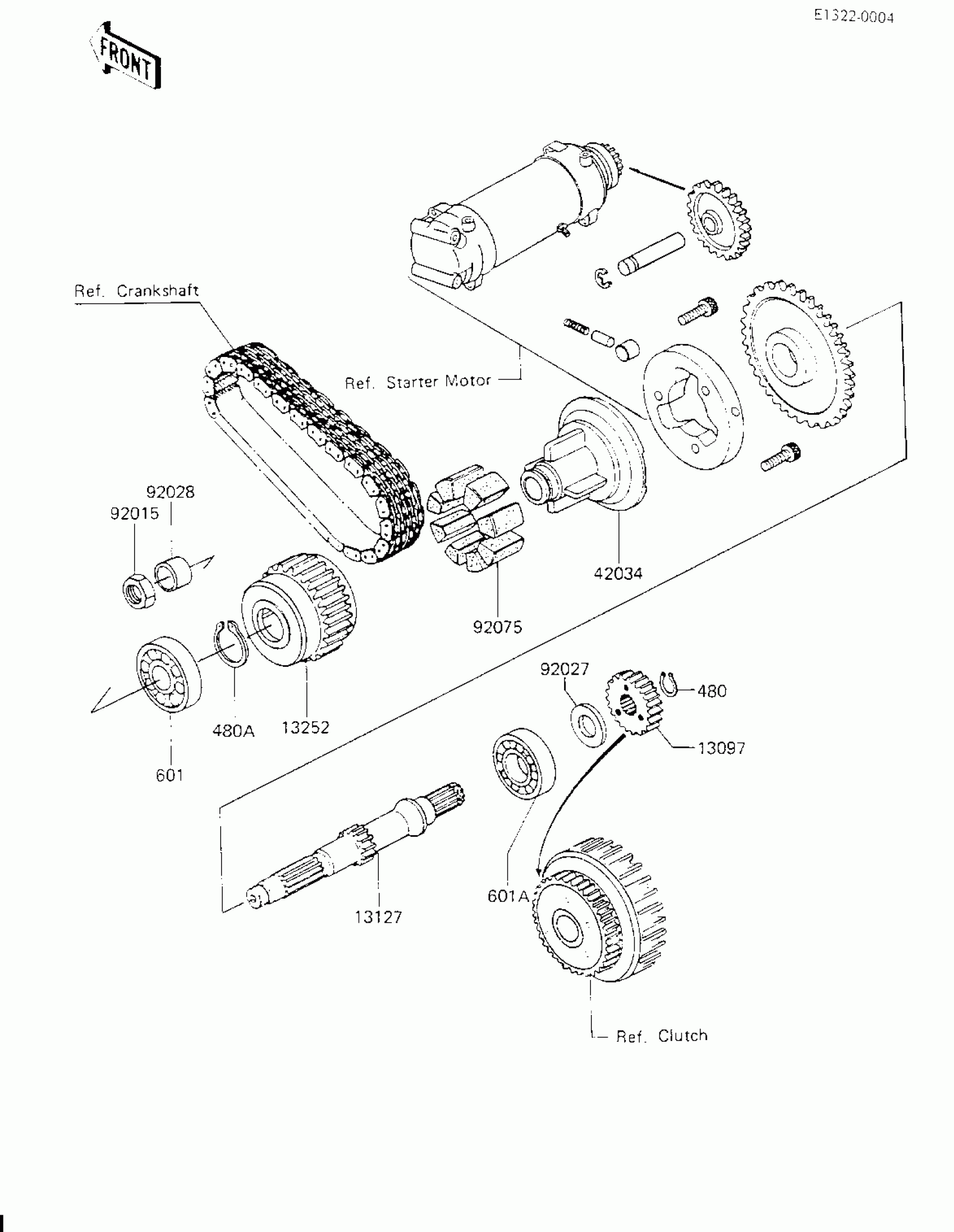

Kawasaki KZ700-A1 SECONDARY SHAFT Diagram

Description

Price

13097

GEAR,SECONDARY SHAFT,29T

13121-037

Unavailable

13127

SHAFT,SECONDARY,L=205

13127-1019

Unavailable

13252

COUPLING,OUTER,SECONDARY SHAFT

13252-001

$276.49

42034

COUPLING,INNER,SECONDARY SHAFT

13253-001

Unavailable

92015

NUT,18MM

92015-019

$7.22

92027

COLLAR,23X46X4.5

92027-263

$6.15

92028

BUSHING,20X25X16.6

92028-1037

$31.84

92075

DAMPER

92075-1227

$7.62

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

480A

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

601

BEARING-BALL,#6205C3

601B6205

$19.57

601A

BEARING-BALL,#6305C3

601B6305

$25.78
