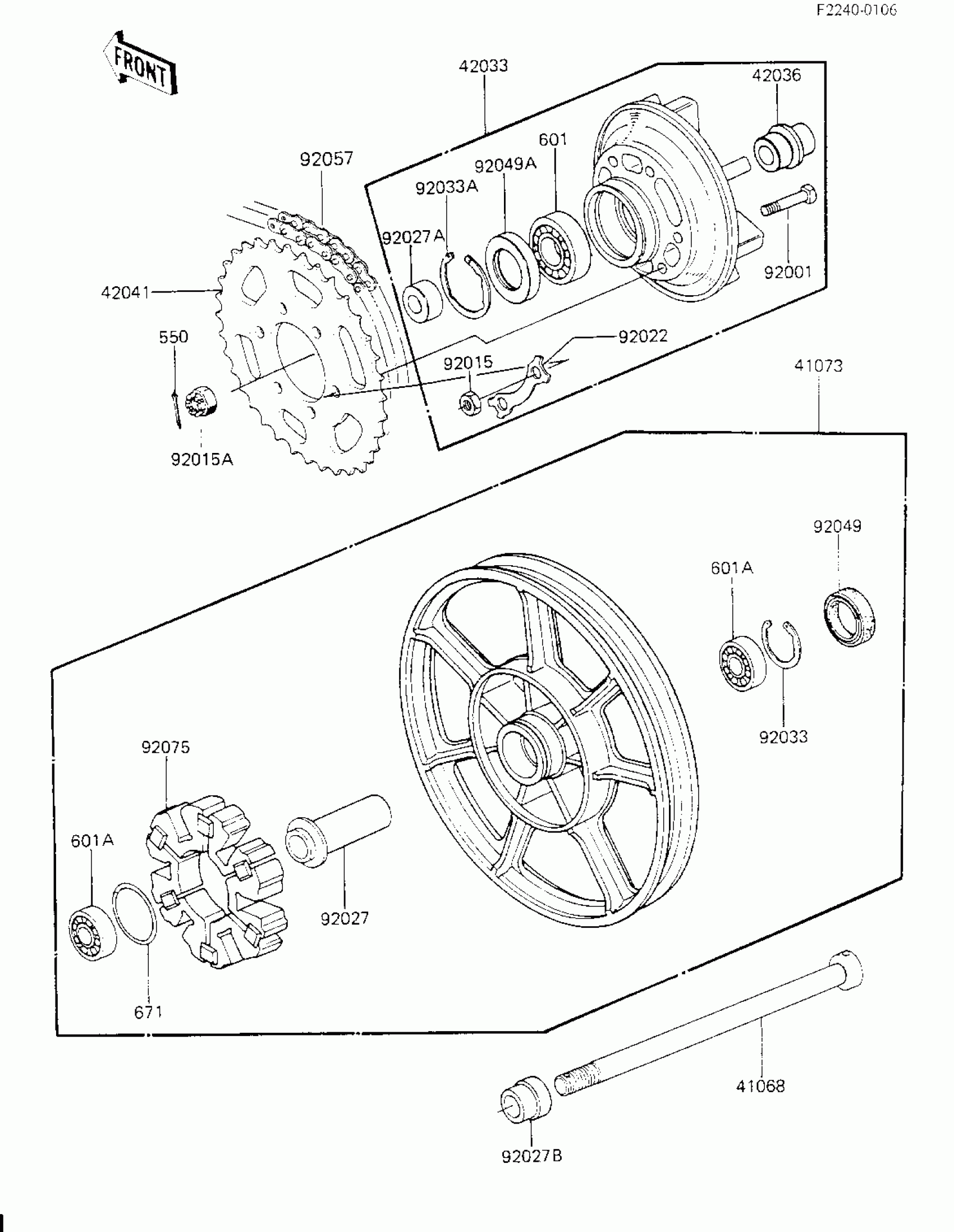

Kawasaki KZ700-A1 REAR WHEEL/HUB/CHAIN Diagram

Description

Price

41068

AXLE,RR

41068-1086

$73.40

41073

WHEEL-ASSY,RR,SOLID,

41073-1140-21

$683.79

42033

COUPLING-ASSY,RR HUB

42033-1047

$179.85

42036

SLEEVE,RR HUB L=33M/M

42036-1036

$36.73

42041

REAR SPROCKET,33T

42041-1010

Unavailable

92001

BOLT,10X41

92001-161

$5.38

92015

NUT,10MM

42045-005

$7.98

92015A

NUT,16MM

92015-055

$11.50

92022

WASHER,LOCK

92022-1212

$6.45

92027

COLLAR,RR HUB L=90M/

92027-1261

Unavailable

92027A

COLLAR,RR AXLE L.H

92027-1262

Unavailable

92027B

COLLAR,L=31

92027-1263

Unavailable

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,62MM

92033-1044

$11.29

92049

OIL SEAL

92049-1053

$2.99

92049A

SEAL-OIL,AJN40627

92050-027

$20.96

92057

CHAIN,DRIVE,EK630SX8

92057-1081

$484.29

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

$111.86

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BALL BEARING,#6206

601B6206

$22.50

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

671

O RING,65MM

671B2565

$8.86
