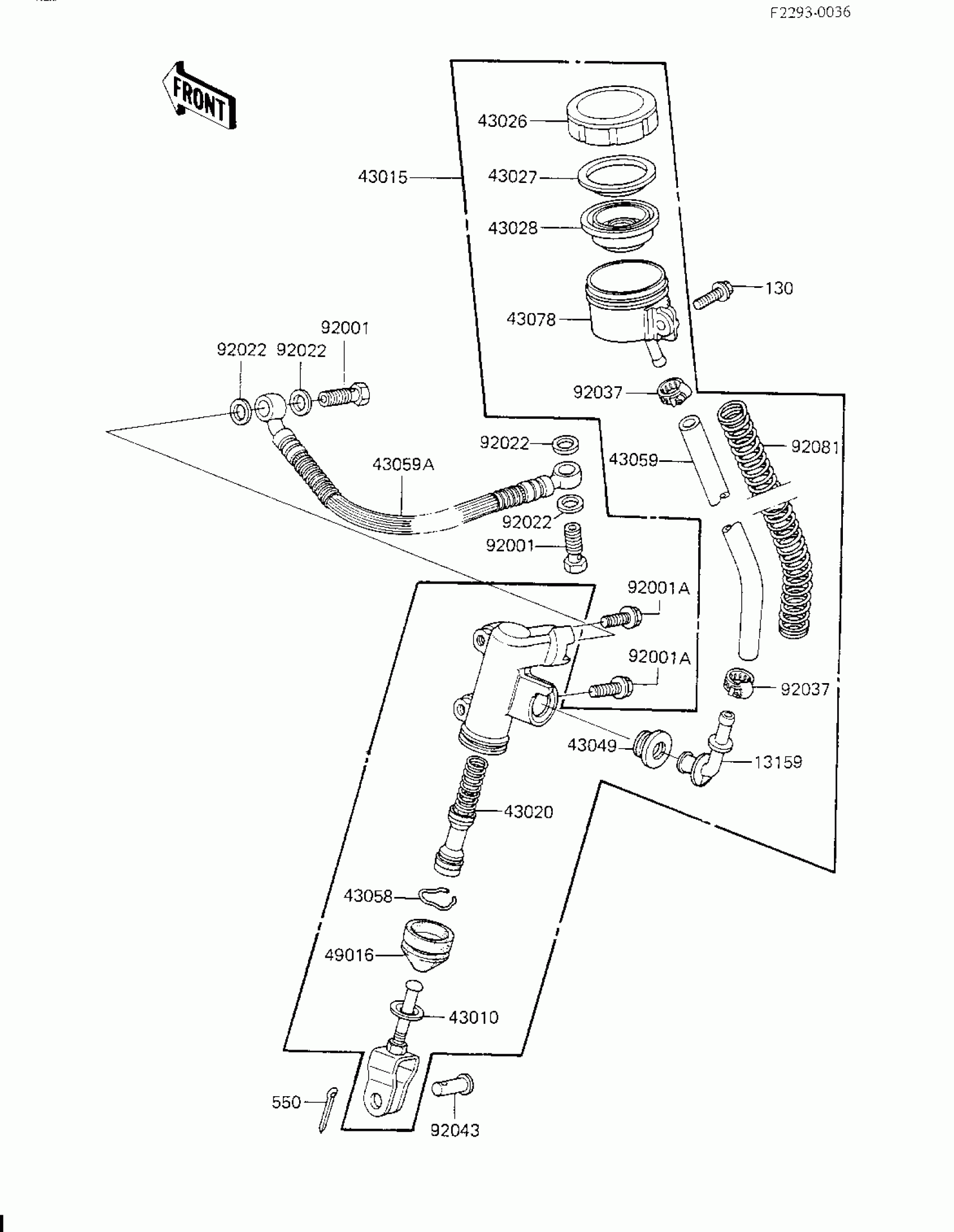

Kawasaki KZ700-A1 REAR MASTER CYLINDER Diagram

Description

Price

13159

CONNECTOR

13159-1005

Unavailable

43010

ROD-ASSY-BRAKE,RR

43010-1051

$78.45

43015

CYLINDER-ASSY-MASTER

43015-1275

$235.25

43020

PISTON-COMP-BRAKE

43020-1035

Unavailable

43026

CAP-BRAKE

43026-1016

$36.42

43027

PLATE-DIAPHRAGM

43027-1005

$6.52

43028

DIAPHRAGM

43028-1016

$23.41

43049

PACKING

43049-1008

$13.85

43058

RING,ROD STOPPER

43058-004

$7.64

43059

HOSE,BRAKE,8X12X163

43059-1066

Unavailable

43059A

HOSE-BRAKE,L=430

43059-1191

$60.62

43078

RESERVOIR

43078-1008

Unavailable

49016

COVER-SEAL,HEAD LAMP

49016-1046

$12.40

92001

BOLT,OIL,L=23

92002-1888

$5.48

92001A

BOLT,FLANGED,8X28,BLACK

92001-1508

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE

92037-1386

$10.53

92043

PIN,8X16

92043-1013

$9.91

92081

SPRING,HOSE PROTECTER

92081-1335

$15.50

130

BOLT,FLANGED,6X20

130B0620

$1.69

550

PIN COTTER 2.0X15

550D2015

$1.04
