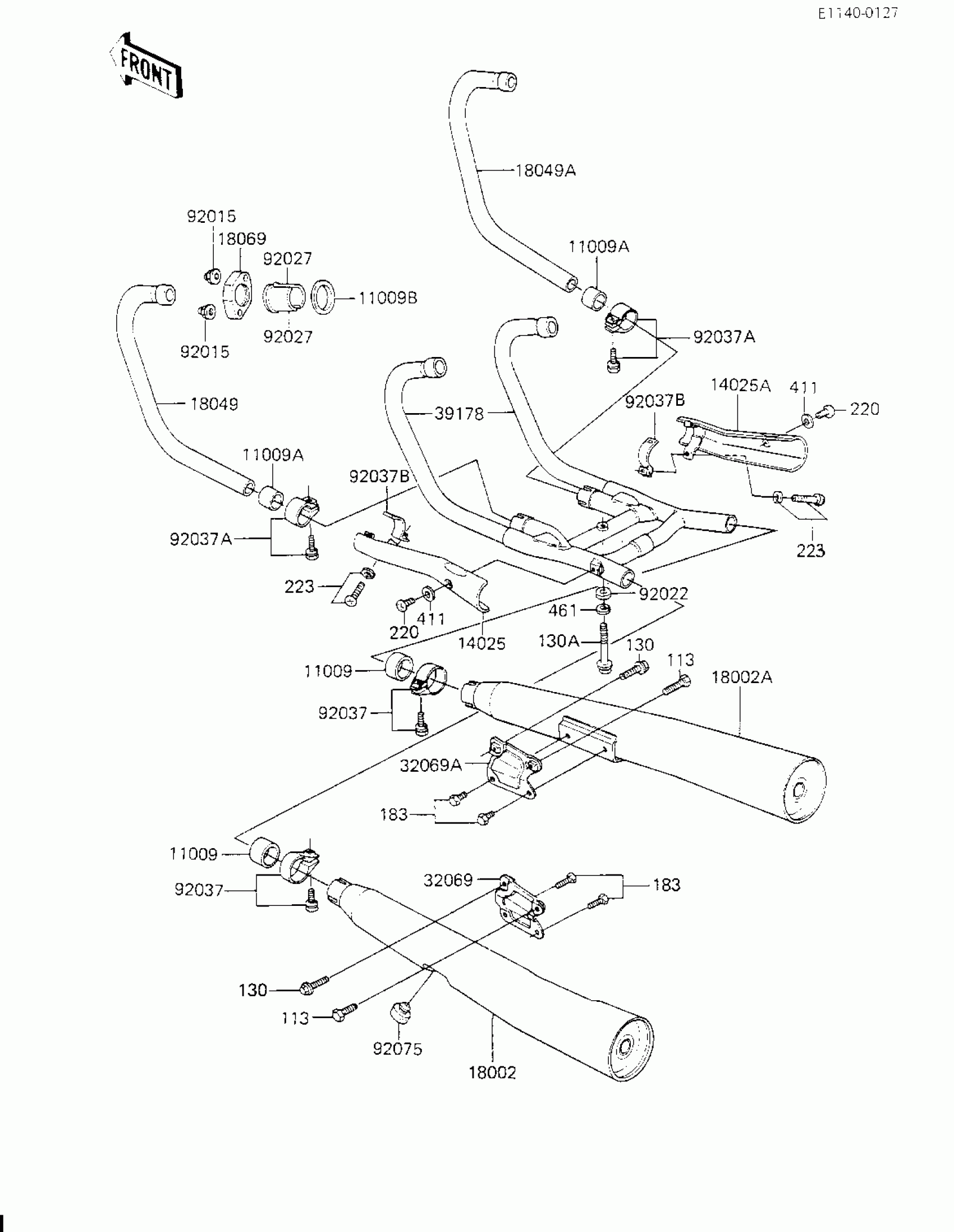

Kawasaki KZ700-A1 MUFFLERS Diagram
#
Description
Price
11009
GASKET,MANIFOLD EXHAUST
11060-1068
$28.82
11009A
GASKET,EXHAUST PIPE CONNECTING
11009-1667
$22.90
11009B
GASKET,EXHAUST PIPE H
11009-1866
$8.25
14025
COVER,MUFFLER,LH
14025-1588
Unavailable
14025A
COVER,MUFFLER,RH
14025-1589
Unavailable
18002
BODY-COMP-MUFFLER,LH
18002-1535
$382.00
18002A
BODY-COMP-MUFFLER,RH
18002-1536
$338.86
18049
PIPE-EXHAUST,#2
18049-1162
$152.50
18049A
PIPE-EXHAUST,#3
18049-1163
$145.57
18069
HOLDER-EXHAUST PIPE
18069-1030
$26.47
32069
BRACKET-MUFFLER,LH
32069-1106
Unavailable
32069A
BRACKET-MUFFLER,RH
32069-1107
Unavailable
39178
MANIFOLD-COMP-EXHAUS
39178-1019
$463.16
92015
NUT,8MM
92015-1398
$4.80
92022
WASHER,10X22X3.2
92022-176
$4.78
92027
COLLAR,L=14.5
92027-1142
$5.00
92037
CLAMP,MUFFLER
92037-1258
$15.89
92037A
CLAMP,42MM
92037-1349
$12.95
92037B
CLAMP.MUFFLER COVER
92037-1374
$12.72
92075
DAMPER
92075-015
$5.00
113
BOLT-SMALL-FINE,10X3
113J1035
$3.37
130
BOLT-FLANGED,8X35
130J0835
$4.15
130A
BOLT-FLANGED
130Y0865
$7.92
183
BOLT-UPSET-WS-SMALL
183D0816
$1.31
220
SCREW PAN HEAD 6X8
220E0608
$1.78
223
SCREW-PAN-WS-CROS,6X20
223X0620
$4.30
411
WASHER-PLAIN,6MM
411D0600
$2.06
461
WASHER-SPRING
461L0800
$0.40
